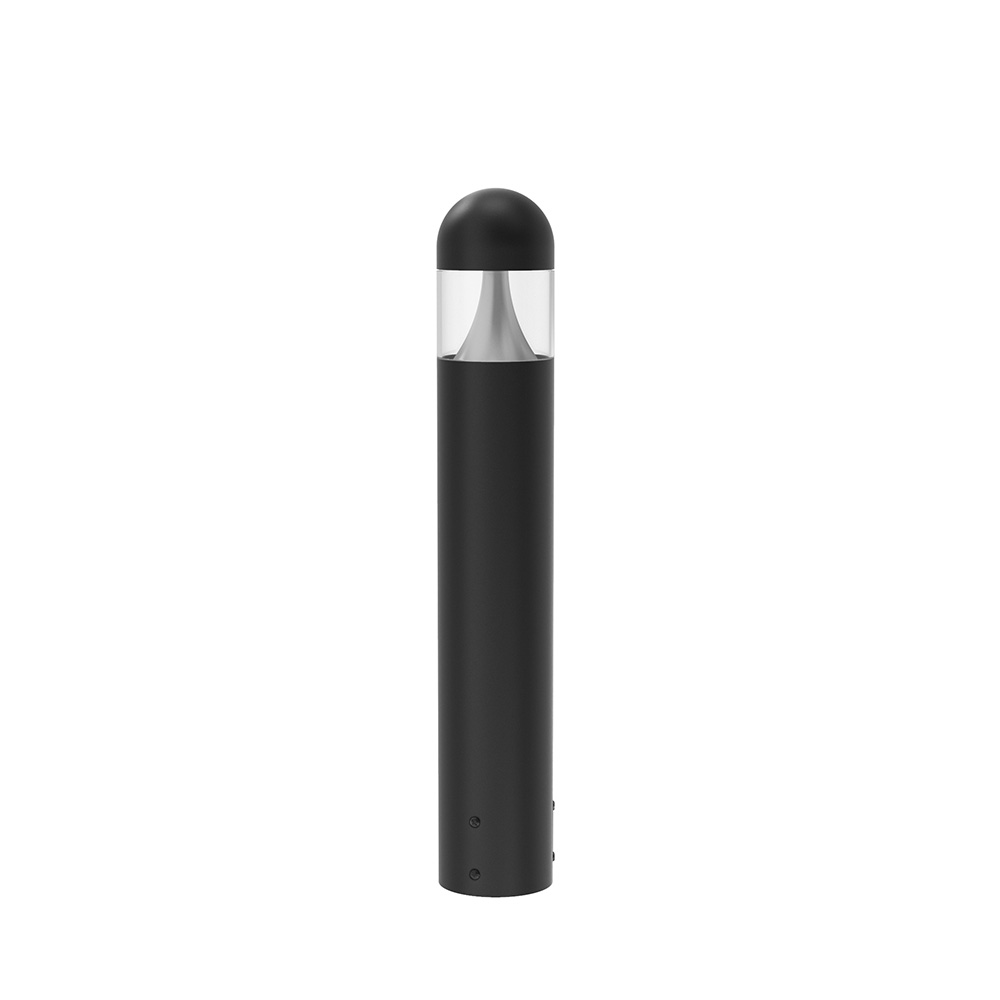

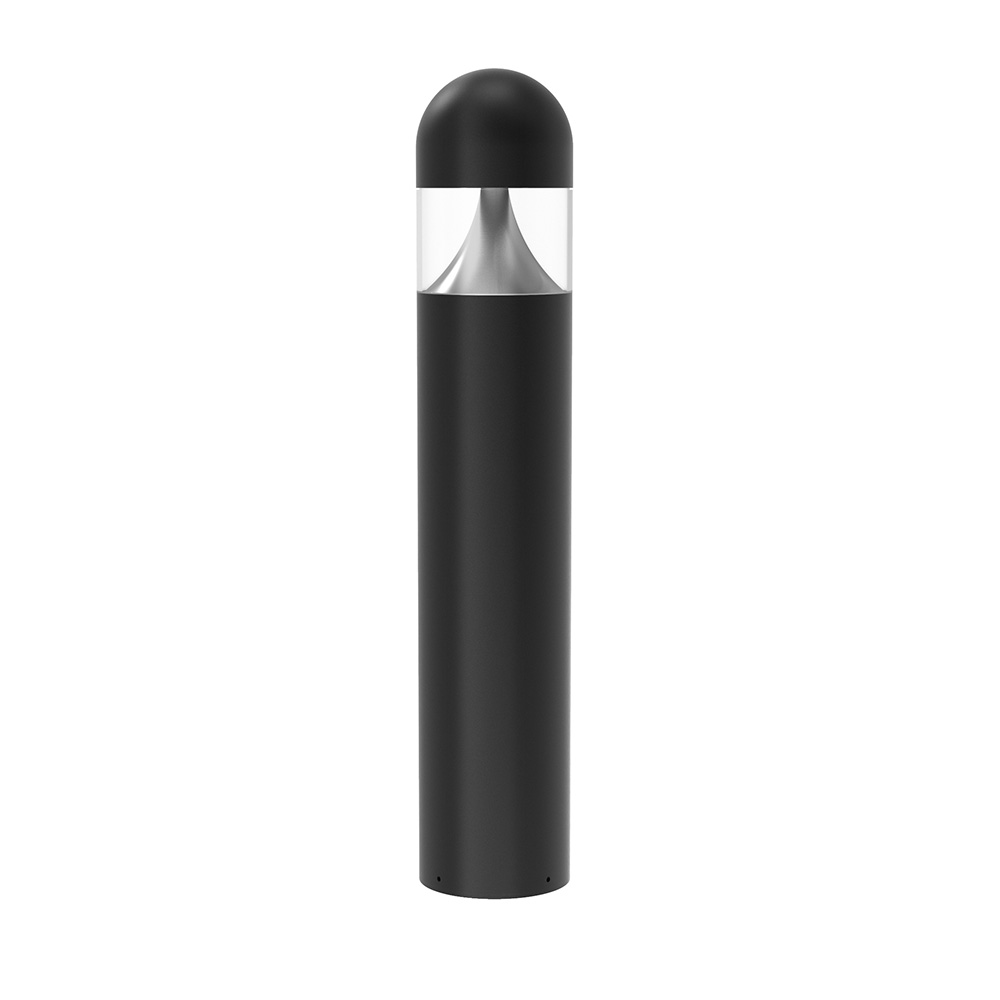

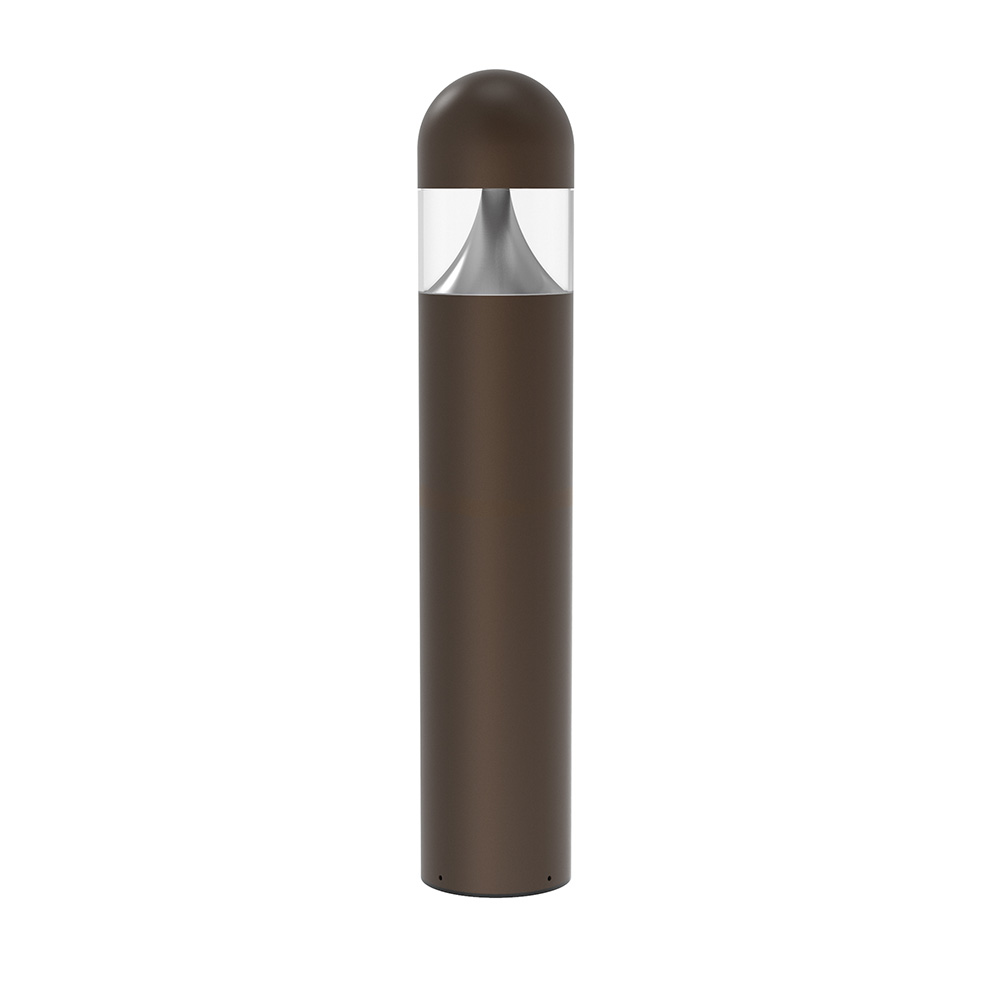

P6RD/P8RD-LED

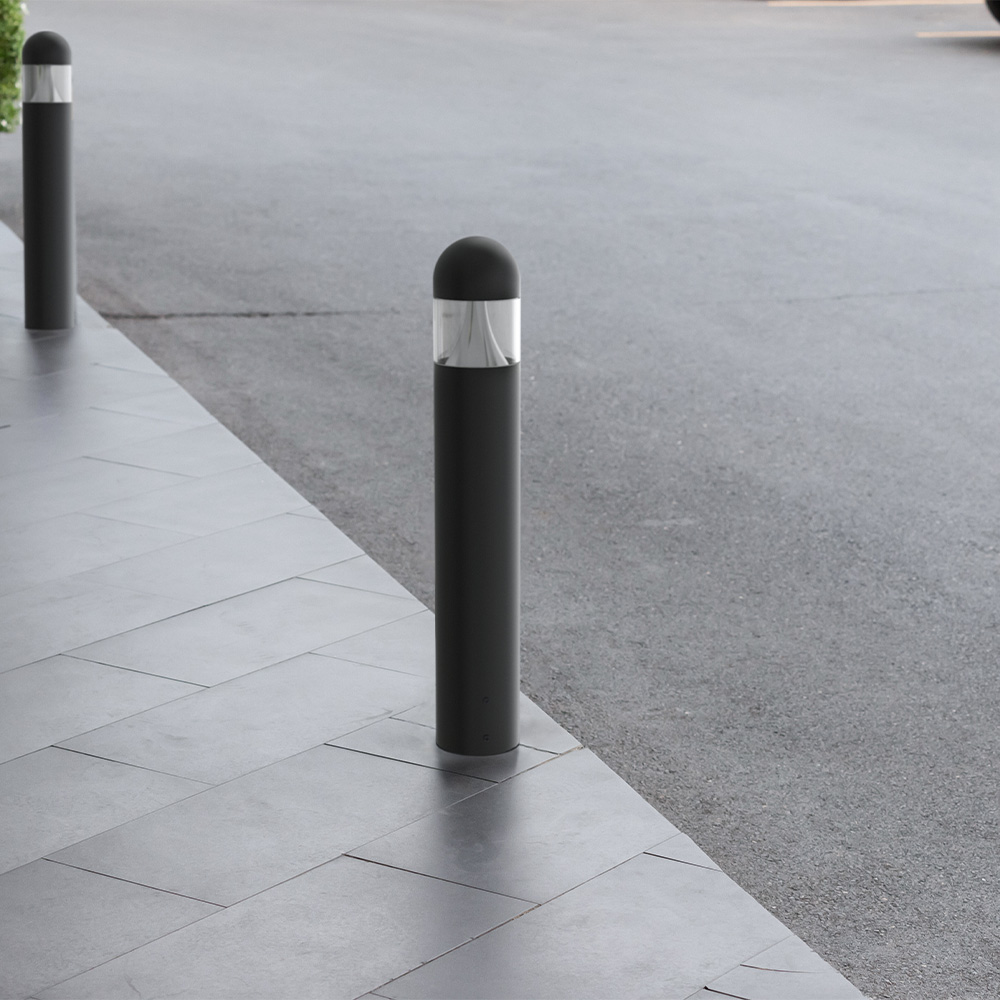

The P-Series LED Bollards combine elegant design with high performance and customizable features, making them perfect for both residential and commercial landscaping and pathway lighting. These premium bollards come in flat or dome top styles, with options for 6″ or 8″ diameter, ensuring versatility to suit various aesthetic preferences and lighting needs.

Features

  • Soft illumination with very low Glare.
  • High efficacy LEDs help reduce energy consumption.
  • A clean and uncluttered design by using simple, well-defined lines.
  • Maintains a traditional look with focus on subtle details – proportion between height/width, surface finishes, and aluminum reflector.

Specifications

Shaft Diameter 6"
Top Dome
Light Output 2110/1640/1230* lm
Efficacy 140 lm/W
CCT CCT Selectable - 3000K/4000K*/5000K
Beam Spread 360°
BUG Rating B1-U2-G1
CRI > 80
Wattage 15/12/9* W
Voltage 120-347V
Surge Protection 4 kV as per IEC/EN61000-4-5
Power Factor 0.99
THD ≤ 20%
Cord Pre-installed 2' Power Cable (STW 18/5 600V)
Housing Extruded Aluminum
Lens Clear Acrylic Lens
Paint Corrosion resistant polyester powder coating (500hrs salt spray tested)
Height 919mm [36.2"]
Weight 6.1kg [13.5lbs]
Bolt Circle Diameter 4"
Mounting Surface Mount
Optional 90° cutoff for 270° beam spread, 180° cutoff for 180° beam spread. Frosted lens for improved light diffusion
Controls 0-10 V (5-100% dimming, Dim to Off)
Ambient Operating Temperature -40°C to 40°C (-40°F to 122°F)
