POB-RVEV Power Outlet Box for RV and EV
The power outlet box features a selection of NEMA receptacles, designed for reliable, continuous 30A or 50A draw suited for charging electric vehicles, recreational vehicles and other high-power appliances. Its durable construction ensures safe and efficient performance for outdoor applications, making it an essential addition for any EV-ready home or facility with a plug in EV charger, Recreational Vehicle or power appliances. The POB-RVEV receptacle is rated for use with 75°C Copper conductors. An optional adaptor plate is offered to use with LEVITON1450R or 1450W 50 Amp EV Charging Receptacles.
Features
- Universal Mounting – Securely installs on concrete, wood, or metal pedestals for maximum flexibility.
- Reliable Power Performance – Receptacle rated for use with 75°C Copper conductor, comparable to premium alternatives, ensures dependable functionality.
- Enhanced Safety Features – Upgraded copper connectors reduce overheating risks and help prevent potential fire hazards.
- Customizable Compatibility – Available with an optional adapter plate for seamless installation of Leviton’s 50A receptacle.
- A spring-loaded, self-closing lid keeps moisture out, while the pad-lockable cover adds extra security.
- Heavy-duty steel housing with a light grey powder coating for enhanced durability against the elements.

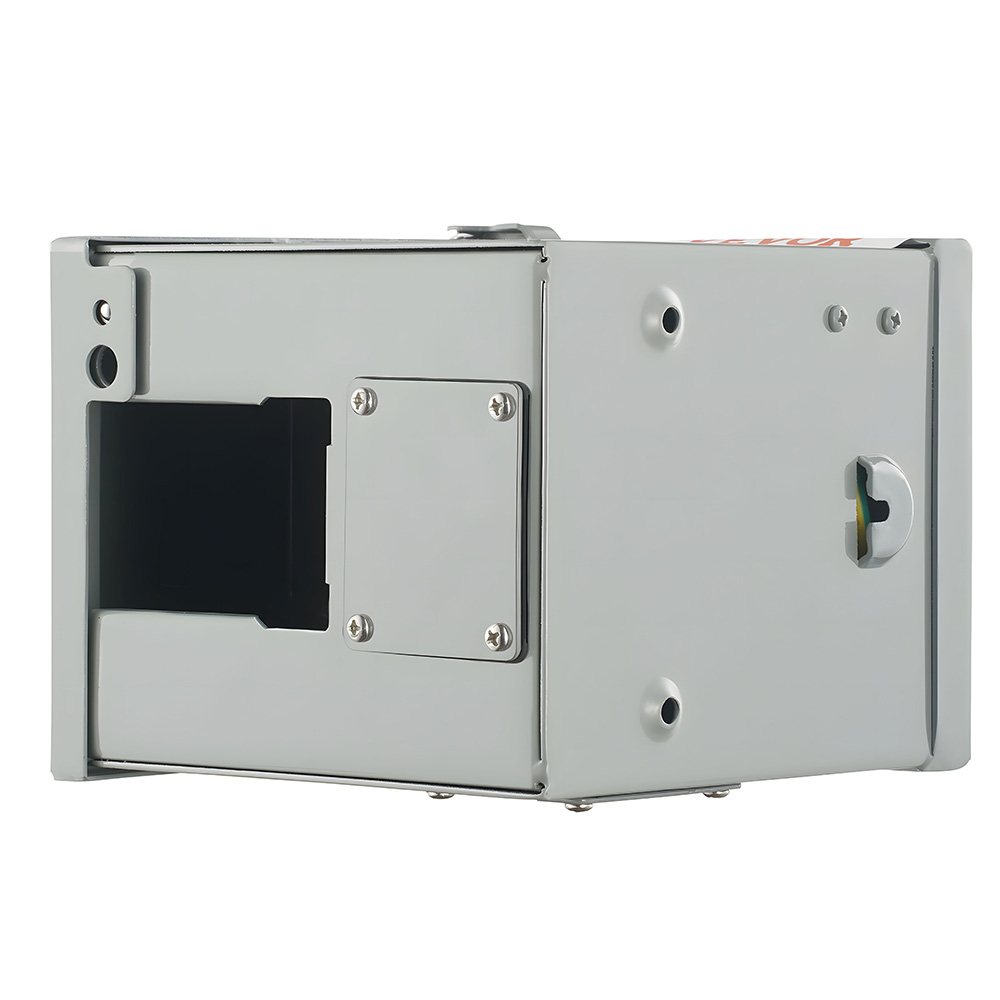

- Four pre-drilled conduit openings (top, bottom, and sides) and an open bottom design make wiring hassle-free.

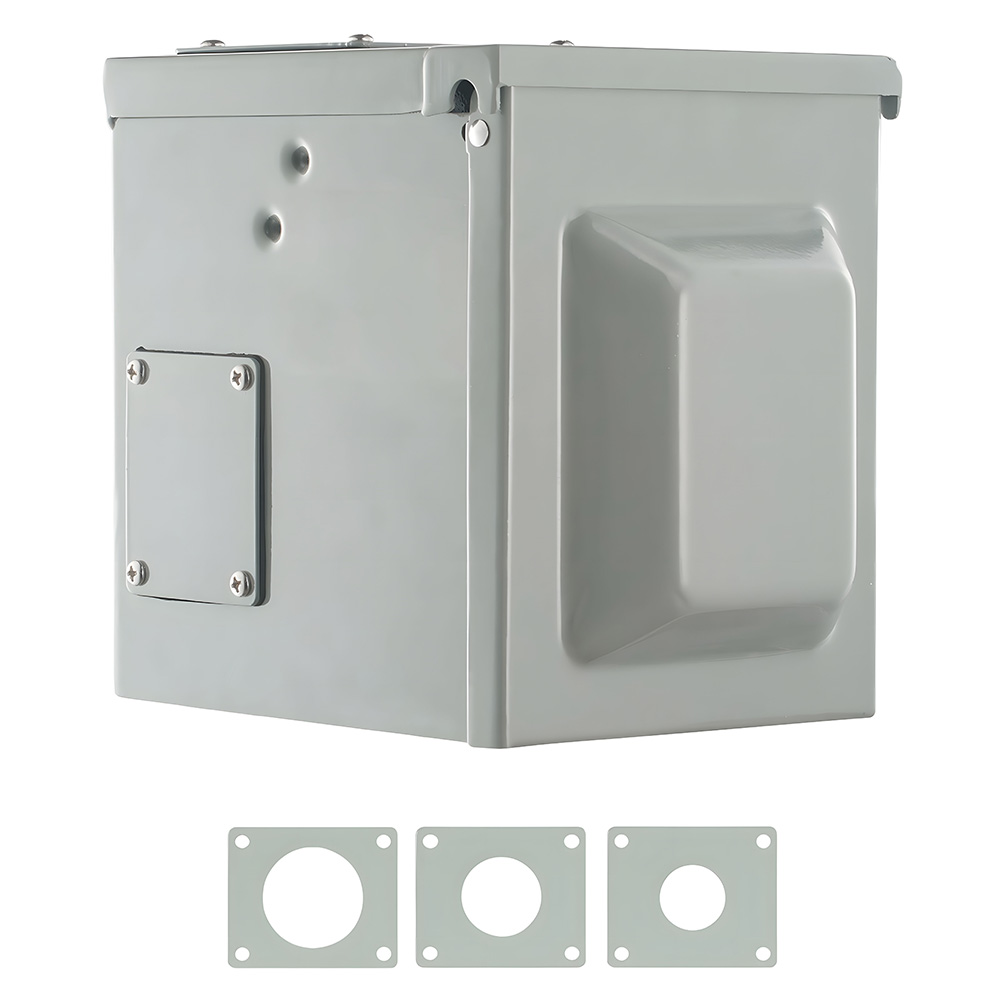

- Comes with multiple plate sizes (1/2″, 3/4″, 1″, 2″) to accommodate various wiring needs.
Specifications

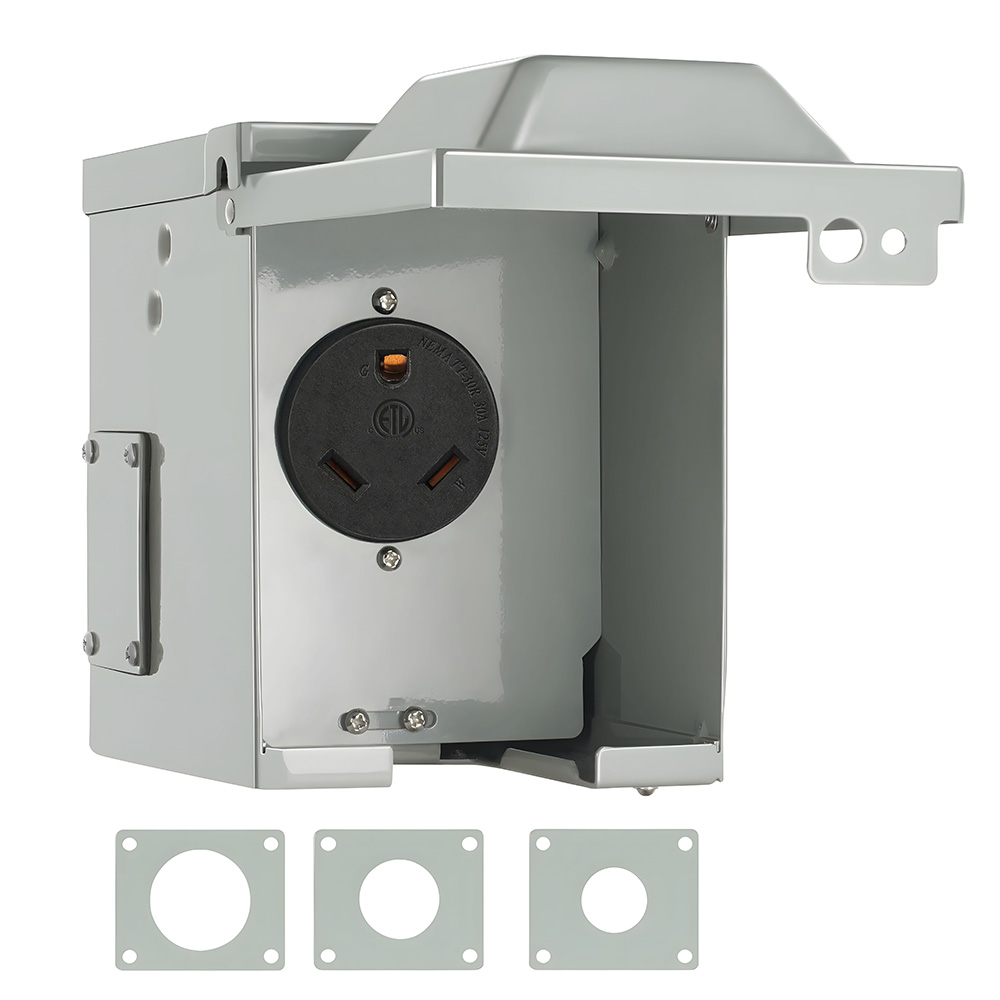

| NEMA Receptacle | TT-30 |
| Voltage | 125V |
| Amperage | 30A |
| Housing | Steel Housing |
| Paint Specs. | Weather and Corrosion resistant Polyester powder coat finish |
| Housing Finish | Light Grey |
| Cover | Opens upwards, self closing |
| Lock Type | Pad lockable |
| Conductor Type | 75°C rated copper (CU) |
| Knockouts | Four - Accommodates 1/2", 3/4", 1", and 2" conduits |
| Dimensions | 6.9" x 6.1" x 5.0" (174mm x 156mm x 128mm) |
| Weight | 2.1 kgs (4.6 lbs) |
| Accessories Sold Separately | Adaptor plate for use with Leviton 1450R and 1450W receptacles |
| Certifications | cETLus listed for Canada & US |
