SSSP

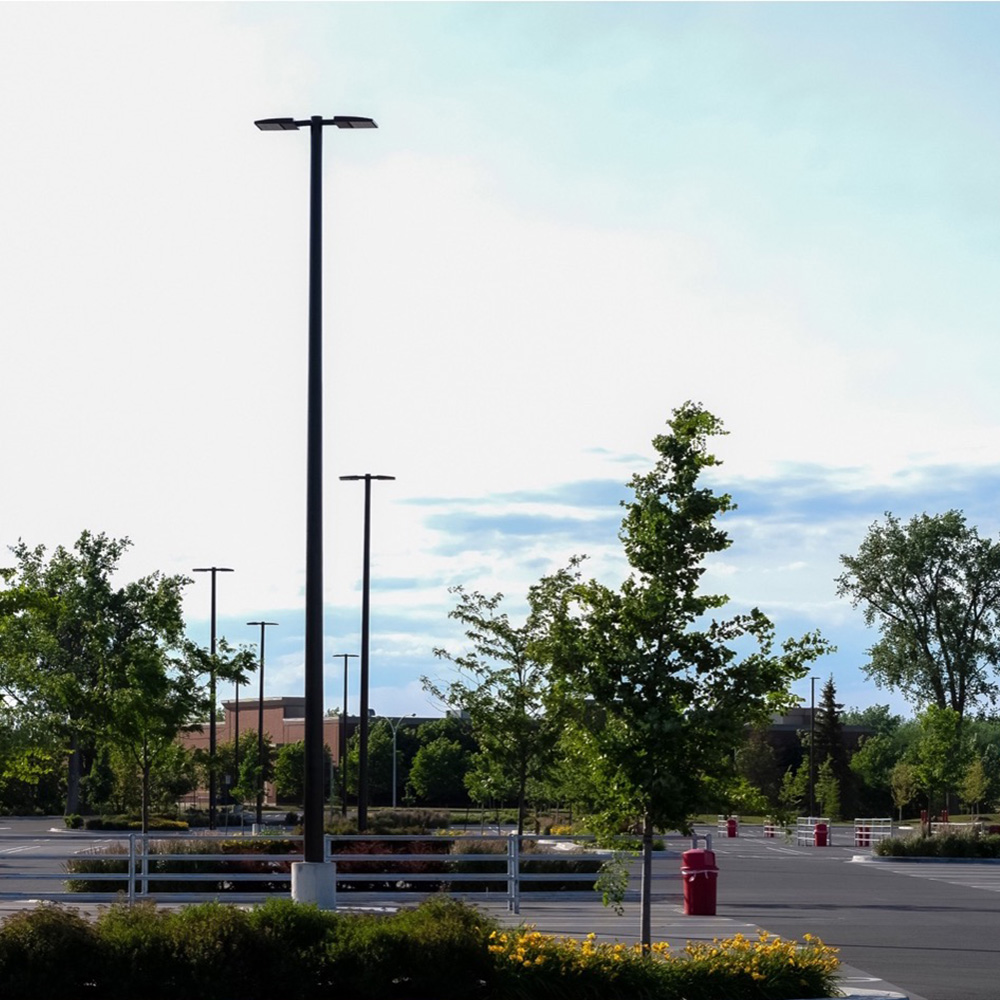

The SSSP square straight steel poles are designed for top or side mounted luminaires, with a universal drill pattern on all four sides of the pole. Silicon plugs are included to cover all unused holes. SSSP poles are available in 15′, 20’, 24′ and 30’ lengths in a dark bronze finish.
Features:
- Universal drill pattern on all four sides of the pole.
- Silicon plugs included to cover all unused holes.
- Available in 15′, 20’, 24′ and 30’ lengths in a dark bronze finish.
Specifications
| Height | 15 ft |
| Pole Dimension | 4" Square |
| Gauge | 11 |
| Thickness | 0.119" |
| Bolt Circle Dimension (BCD) | 11" (From 10.6" to 11.4") |
| Bolt Square Dimension (BSD) | 7.78" (From 7.3" to 8.4") |
| Anchor Bolt Size | 3/4" x 30" x 4" |
| Hand Hole Size | 5.3" x 3.3" |
| Ground Terminal | Accessible from inside the Hand hole |
| Finish | Bronze (Polyester powder-coat dark bronze finish over Galvanized steel) |
| Weight | 121 lbs |
| Accessories | Base Cover, Tenon, Bull Horn, Top Cap, Anchor Bolts & Template (Anchor Bolts and Template are packed in one box) |
| Certifications | CSA C22.2 NO. 206:22, CSA C22.2 No. 250.0-21, per UL 1598:2021, CSA S6-19 (Canadian Highway Bridge Design Code), Welding Standard: CSA W47.1 |
| Compatible Fixture Family | HELIX, JAGUAR, AL, SKY2S, FLxS |
