FL-LED

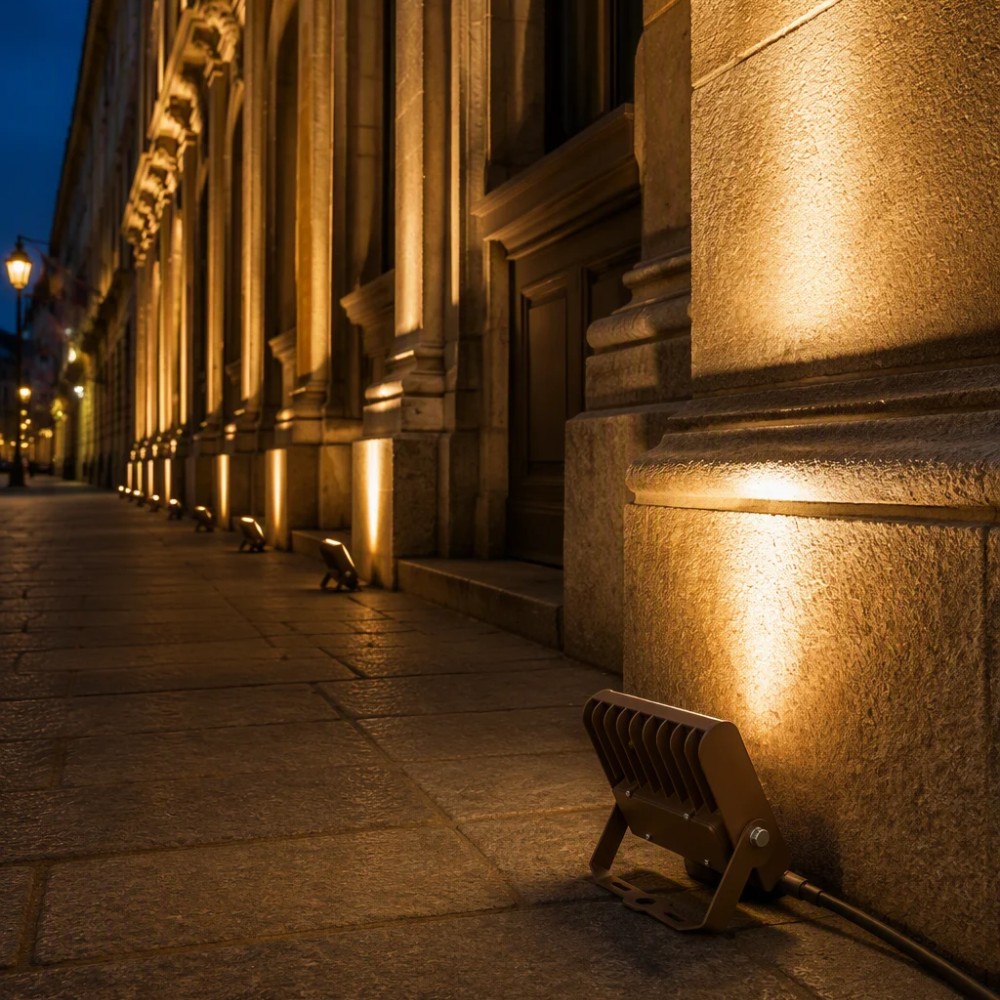

The FL-LED series is a highly efficient fixture series with a wide beam distribution that is suitable for general flood applications. Ideal for building facades, patios & yards, landscape lighting, and sign lighting when attached to an arm.

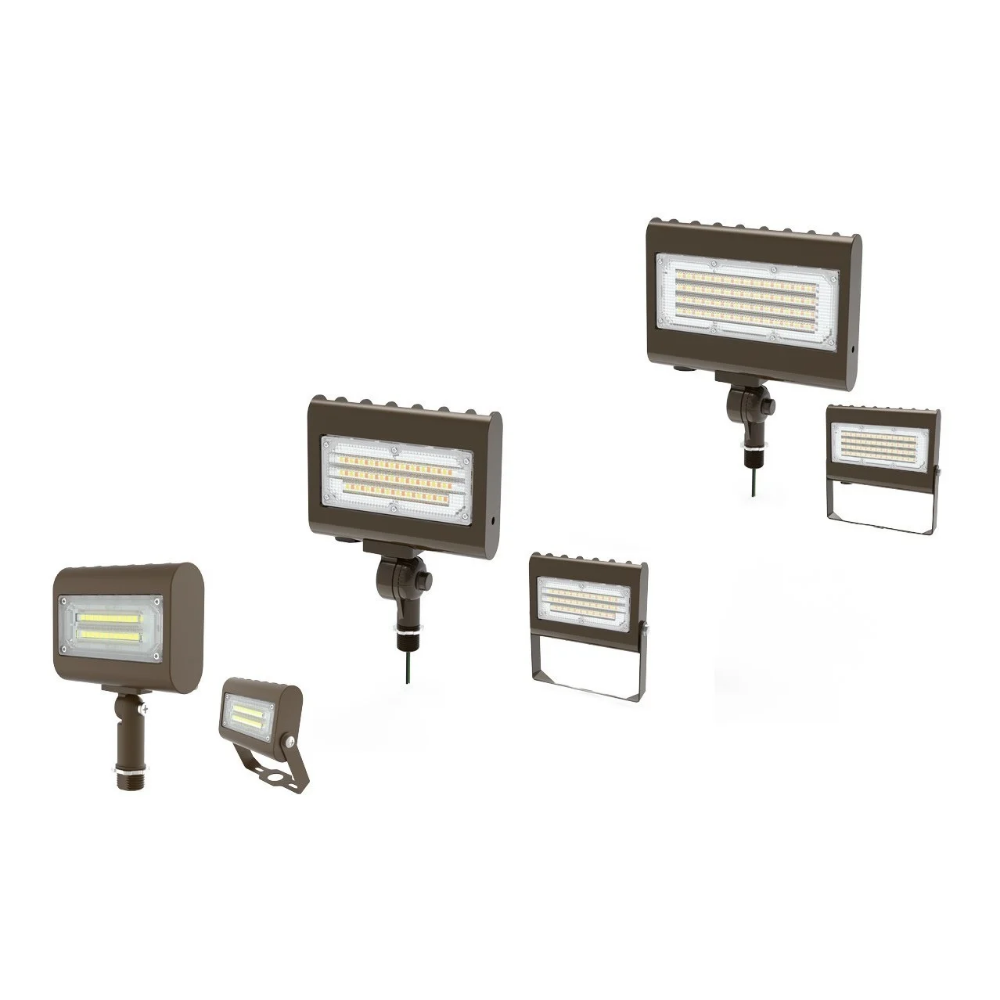

Models Available:
- FL1-LED16
- FL2-LED31
- FL3-LED51
- Die-cast aluminum housing with polycarbonate lens.
- Wide 7H x 7V beam is standard.

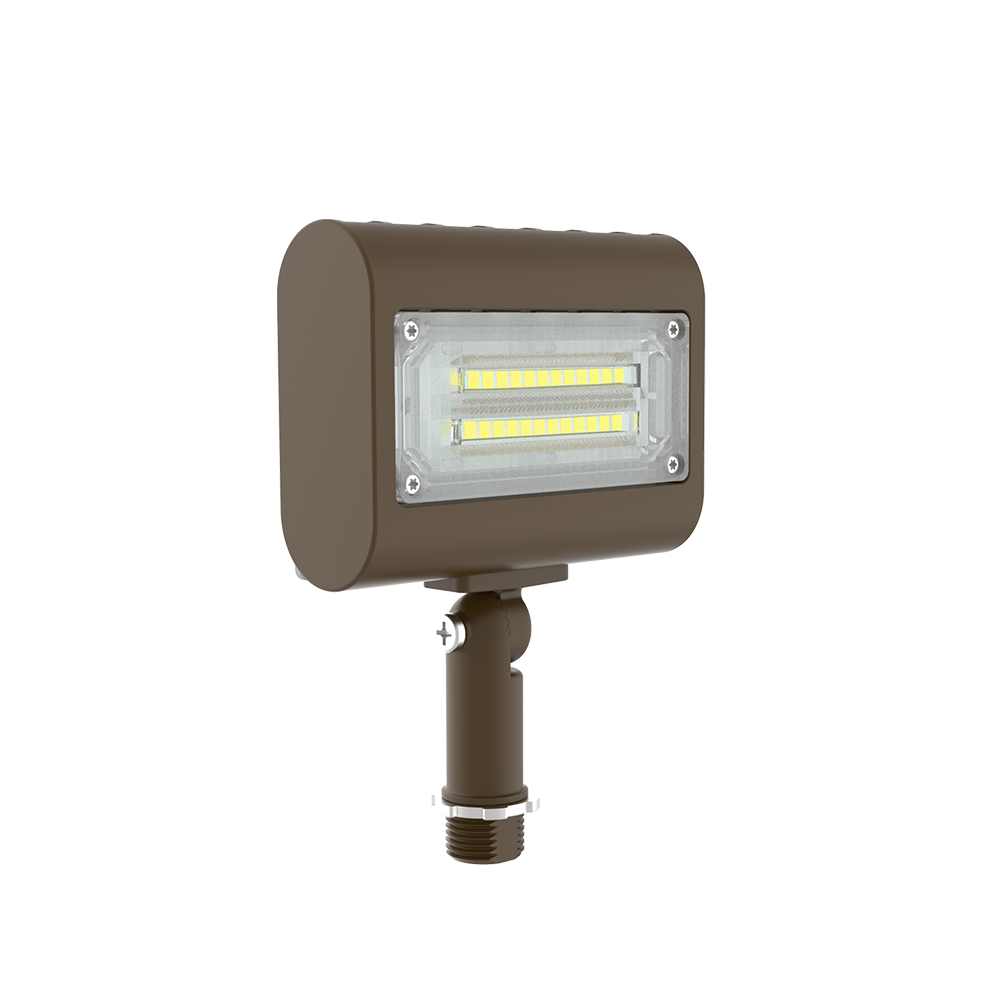

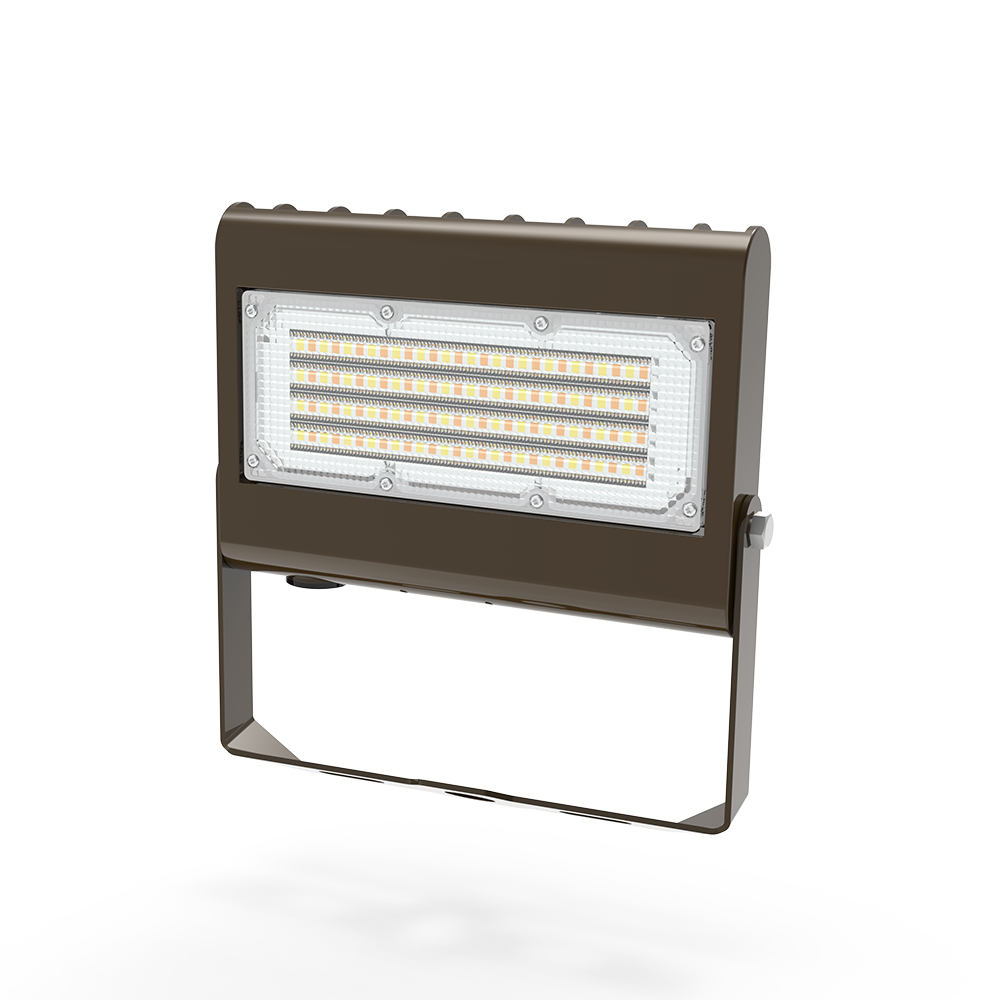

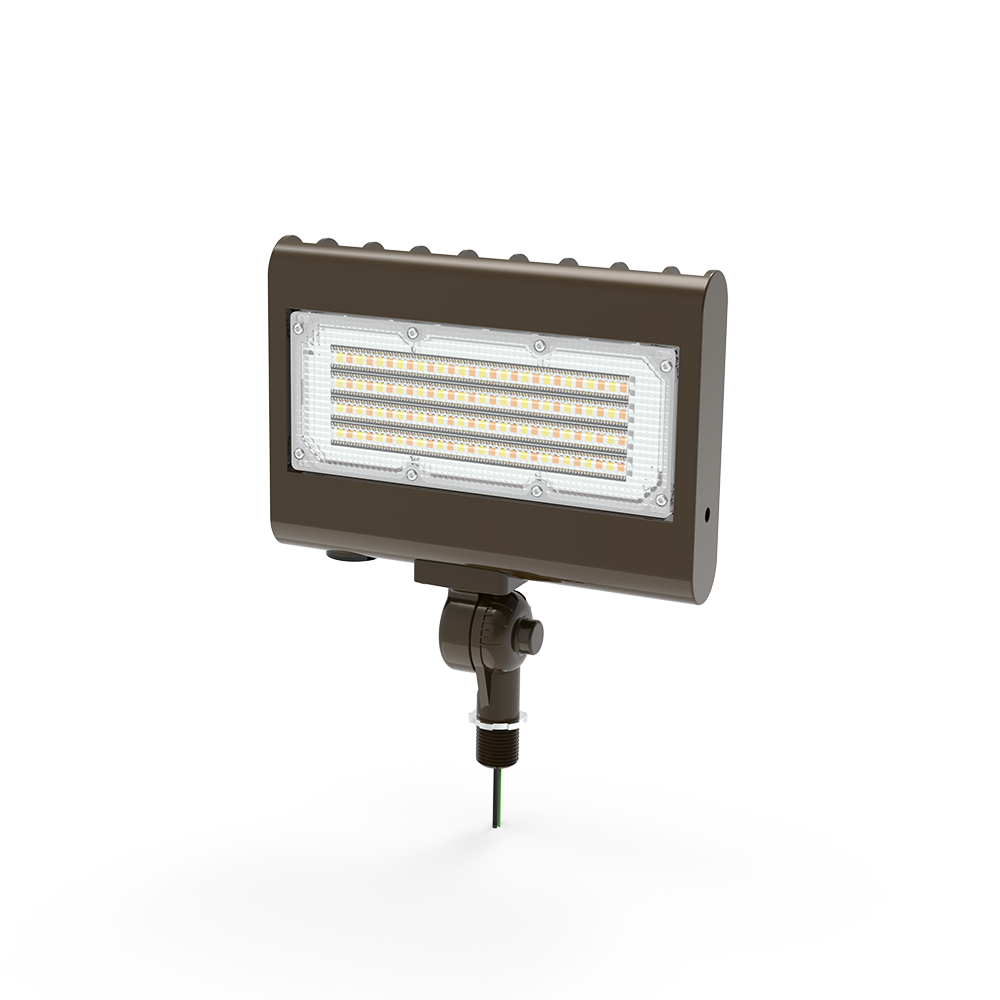

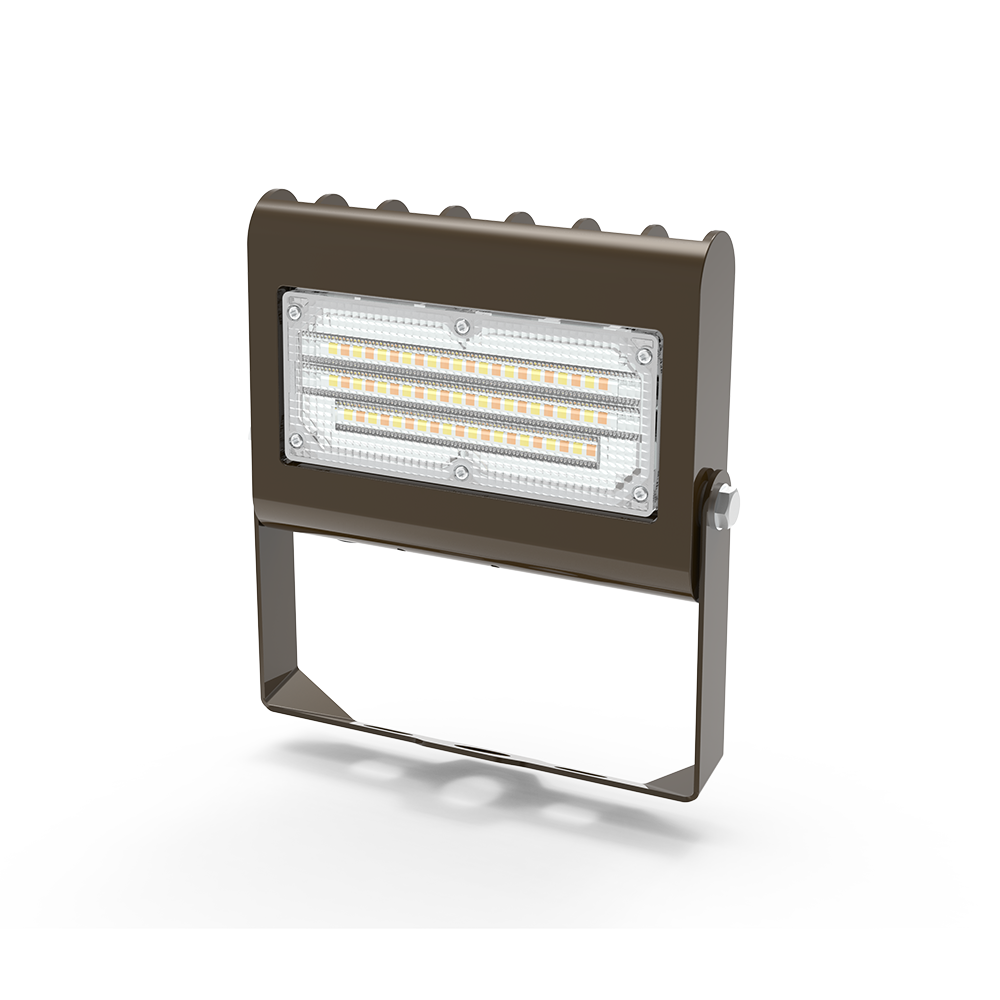

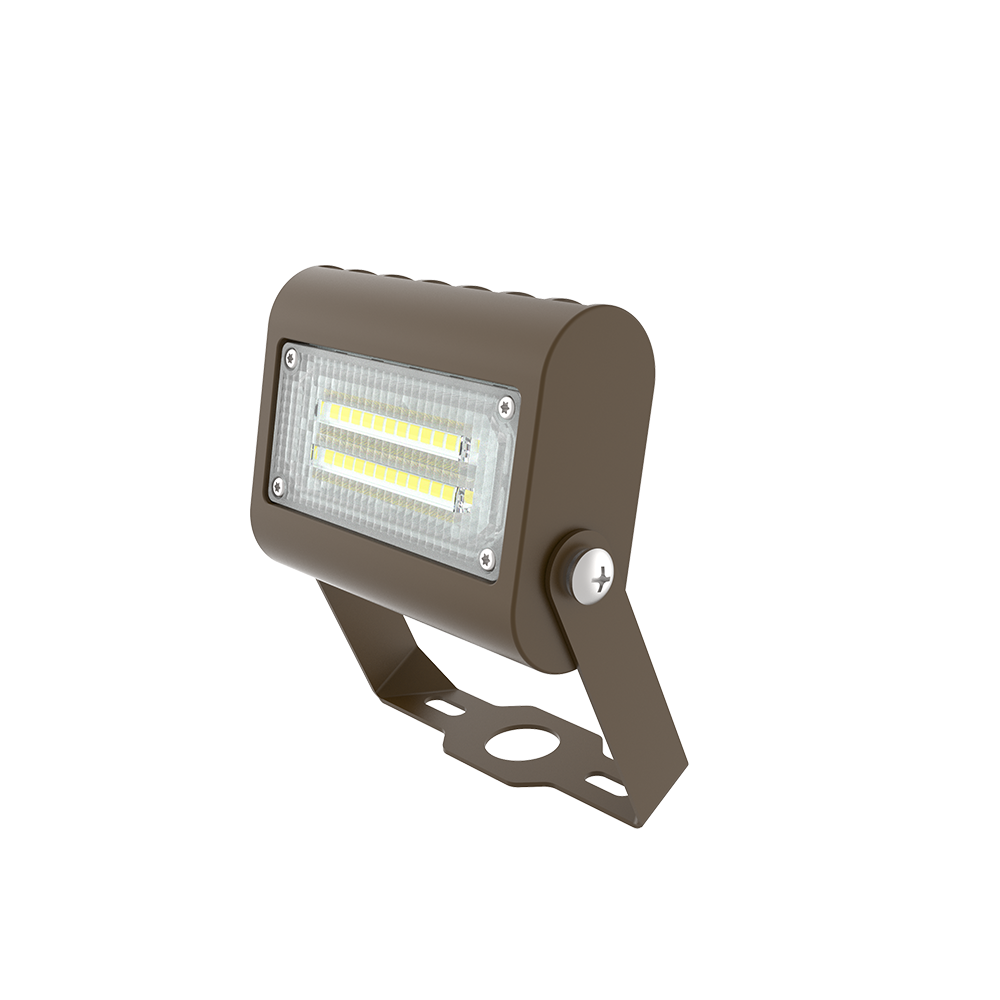

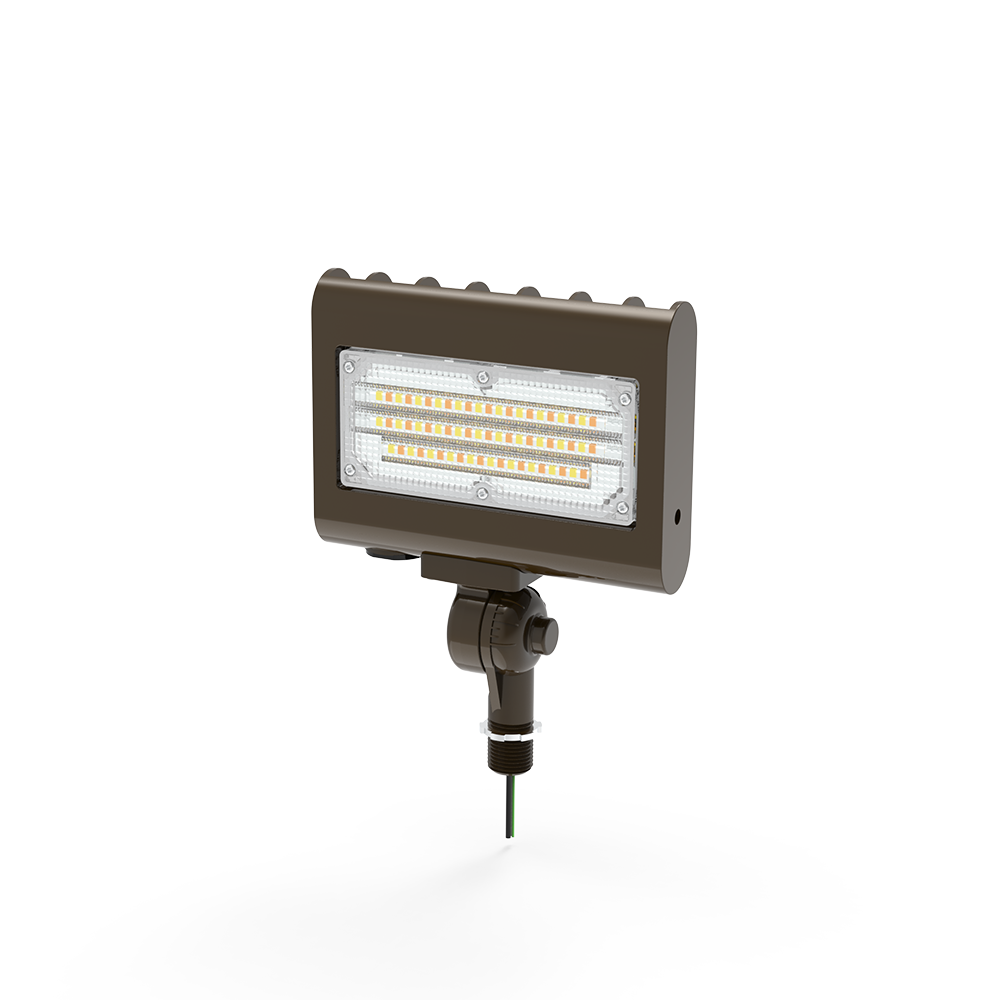

- Available as a knuckle or yoke mount. Can also be used as a sign light when combined with various arms.
- Available in 4000K or 5000K colour temperature.
- Ideal replacement for 150W Quartz floods.
- High efficacy over 125 lumens per watt.
- Knuckle mounts to standard DC100 cover (purchase separately).
Specifications
Model | FL1-LED16 |
Watts | 15W |
Lumens | 1900 Lm |
Efficacy (Lumens/Watt) | 127 Lm/W |
Replaces Up To | 150W Quartz |
CCT | 4000K*, 5000K* |
Certification | cULus, IP65, DLC Premium, Approved for Wet Locations |
Operating Temp | -40°C to 40°C |
Voltage | 120-277V |
LED Life | 100,000 hours |
Housing Material | Die Cast Aluminum |
Lens Material | Polycarbonate |
Lens Type | Clear |
Total Harmonic Distortion | 15 |
CRI | 70 |
Mounting Options | Yoke Mount, Knuckle Mount |
Power Factor | 0.9 |
Dimming | 0-10V Dimming |
Surge Suppression | Built-In 2kV |
Weight (Lbs) | 1.1 |
Warranty | 5 Years |
- FL1-LED16-B-5K-BRZ
- FL3-LED51-B-5K-BRZ
IES Files
- FL-LED-DIM-Install-Instruct-RAB-ENG-FRE-2021-05-28
