RD-L8 LED

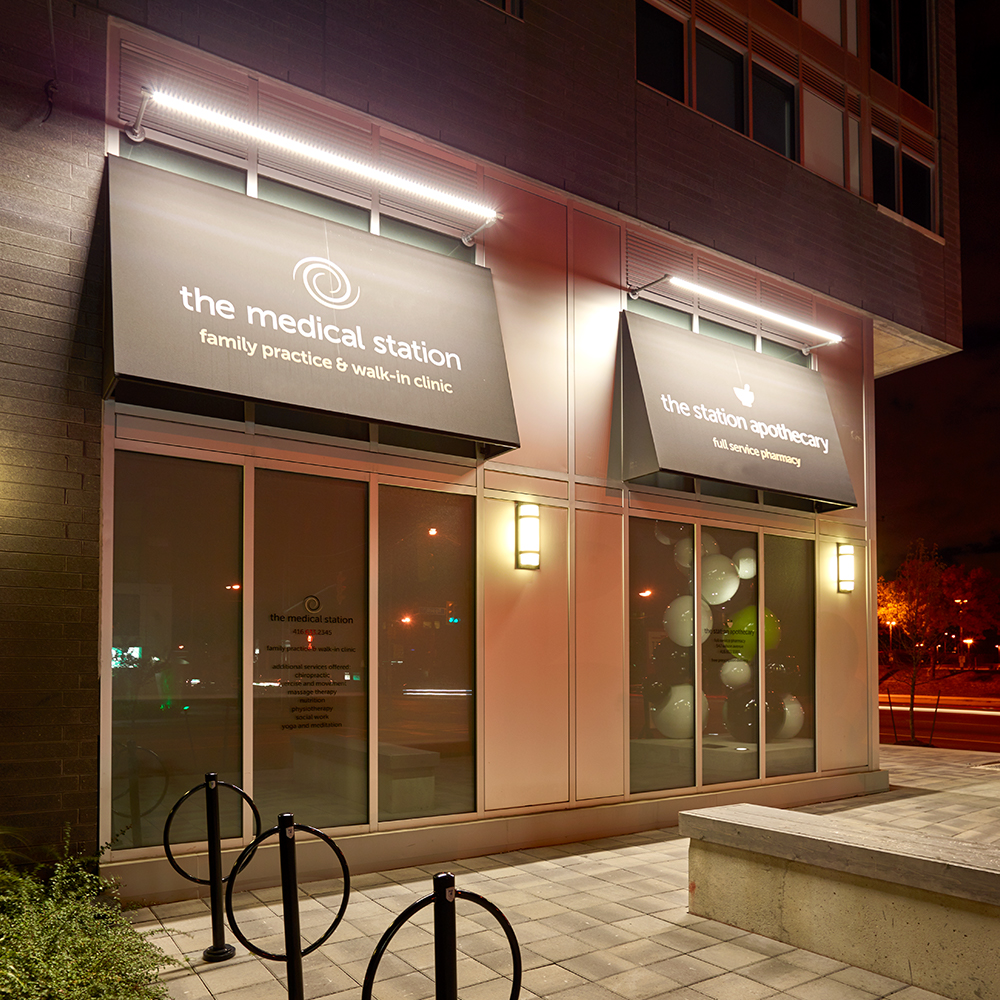

RAB Design’s RD-L8 is a sturdy, sleek design, and high performance sign light suitable for any wall washing applications. The fixture is designed to be rotated 360° allowing light to be directed in any direction. The RD-L8 is a highly versatile sign light available in lengths of 2′, 4′, 6′ and 8′ that can be combined to form a continuous run. Both wall mount and parapet mounting options are available to suite a wide variety of sign and wall lighting applications.
Features
- Rugged extruded aluminum construction to withstand weather conditions.
- Clear downlight lens and translucent casing encapsulating the aluminum extrusion can be rotated 360° to direct light in any direction.
- High quality LEDs are used to provide even illumination and maintain brightness in cold weather conditions.
- Standard aluminum arm extends 18″ from the wall, and custom arm lengths available upon request.
- Standard wall mount option or parapet mount available.
- Aluminum die cast mounting hardware provided.
- Two supplied mounting discs connected to arms for ease of mounting onto the wall.
- The standard finish is natural aluminum in PC housing.
- Each fixture uses its own power supply.
- High efficiency dimmable driver.
- Continuous run applications are available – please consult Customer Service.
Specifications
| Lumens | 1070 lm/foot |
| Efficacy | 97 lm/W |
| CCT | 3000K, 4000K, 5000K |
| LED Lifetime (L70) | 100,000 Hrs |
| CRI | ≥ 80 |
| Watts | 11 W/foot |
| Voltage | 120-277V, 347V |
| Dimming | 0-10 V |
| Power Factor | 0.98 |
| THD | < 20% |
| Housing | Aluminum extrusion encapsulated in coextruded polycarbonate sleeve |
| Lens | Clear Polycarbonate |
| Finish | Natural Aluminum |
| Operating Temperature | -40°C to 40°C |
| Certifications | cULus Listed for Canada and USA, per UL 2108, CSA C22.2 No. 250.0, Wet Location |
- RAB_IES_RD-L8-1X4_09162020
