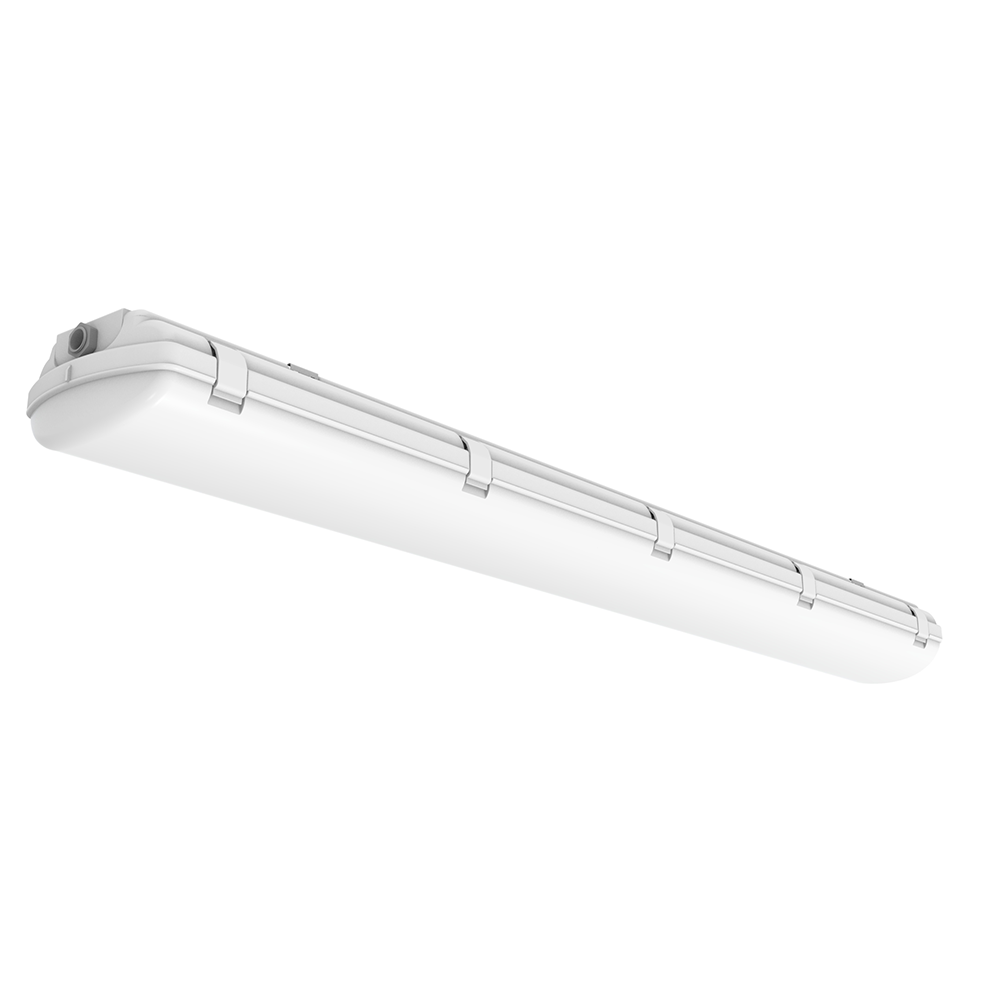

FW4-LED41/61

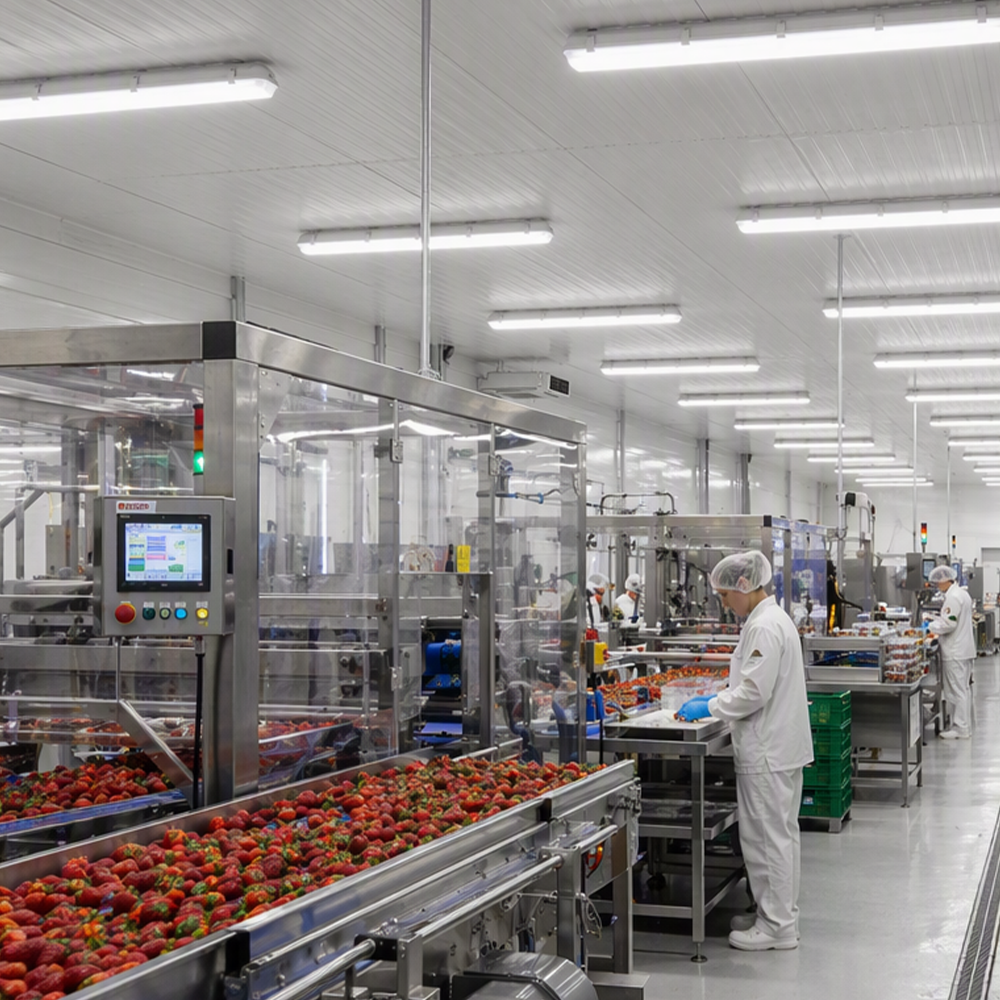

The FW4-LED is a 4′ LED linear vapourproof fixture. Ideal for a variety of indoor and outdoor environments such as underground parking garages, industrial facilities, poultry barns, and commercial freezers. Lutron Compatible Fixture using Athena Wireless Node (AWN).
FEATURES:
- 2 versions: Selectable units (120-347V, CCT Select 3000K,4000K,5000K) and dedicated units (120-277V, 4000K).
- Ruggedly designed with NEMA 4X, NSF, IK10 ratings. Refer to page 6 for a quick reference on these ratings.
- Polycarbonate housing with frosted lens.

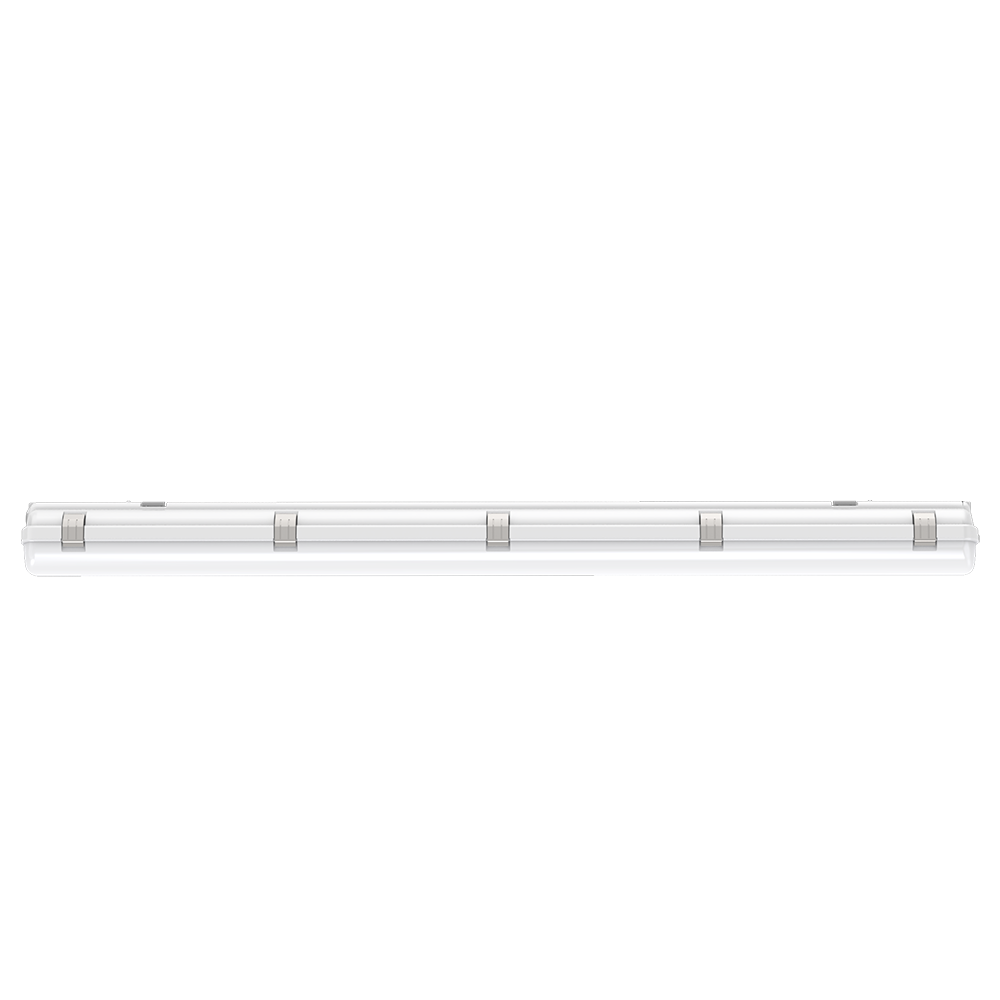

- 5 polycarbonate clips on either side.

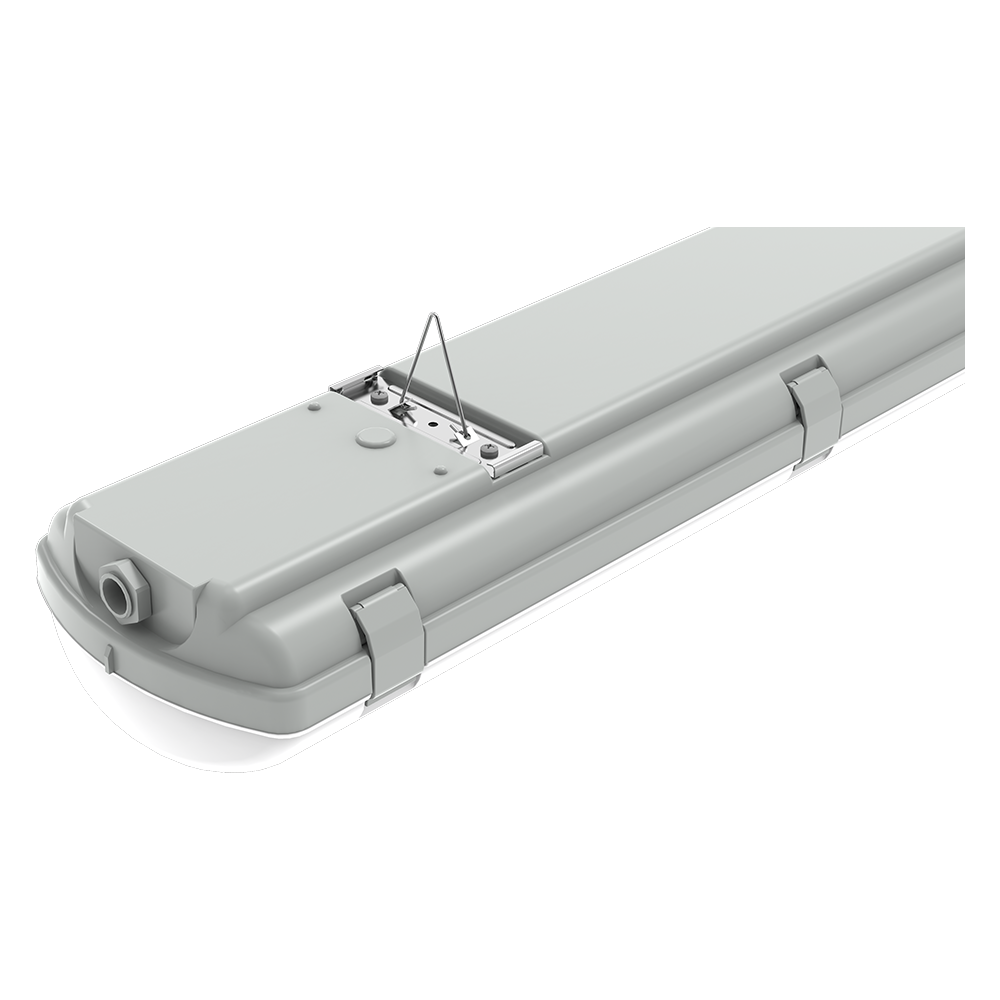

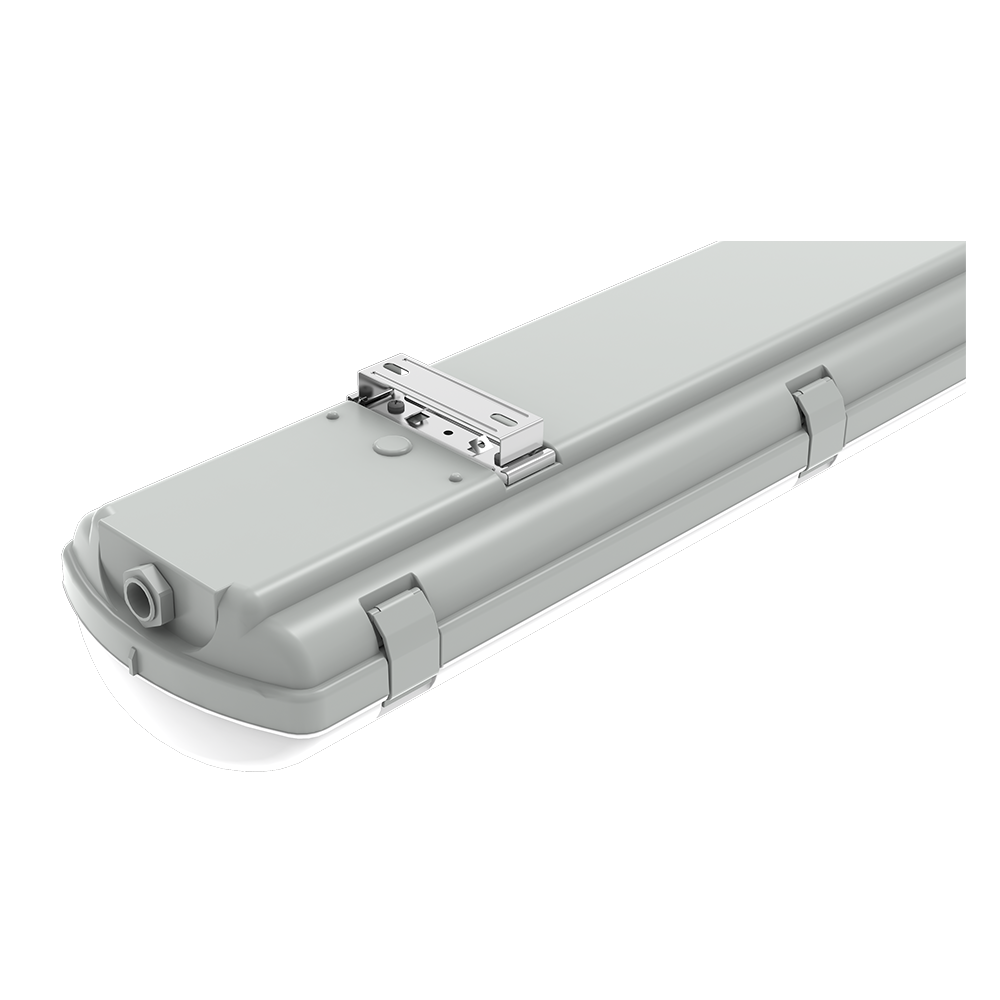

- Surface or pendant mount option.
- IP66 rated with complete gasketing to protect against dust and dirt and comes with wet location connector.
- Toolless entry for easy wiring and access to CCT select switch.
- (FW4-LED41) Optional factory-installed smart lighting control available: Lutron Athena Wireless smart control allows zone and control changes digitally and wirelessly.
This product is not suitable for car washes. Please see our LFW-LED series for car wash applications.
Specifications
| Model | FW4-LED41 |
| Wattage | 41.9 W |
| Lumens | 5556 Lm |
| Efficacy (Lumens/Watt) | 132.62 Lm/W |
| Replaces Up To | 2 Lamp T8 |
| Voltage | 120-277V, 120-347V |
| Colour Temp | Colour Selectable (3K, 4K, 5K) or 4K only |
| Operating Temp | -40°C to +40°C |
| Lens | Frosted Polycarbonate |
| Power Factor | 0.97 |
| THD | 4.6% |
| CRI | 83 |
| LED Lifespan | 100,000 |
| Mounting | Surface Mount, Pendant Mount |
| Certifications | cULus, IP66, DLC 5.1 Premium, NSF, Nema4x, IK10 Ratings, Lutron's AWM Control Compatibility, Approved for Wet Locations |
| Warranty | 5 Years |
- RAB-FW4-LED41_61-Install-Inst-ENG-FRE-2019-10-07
