REV4

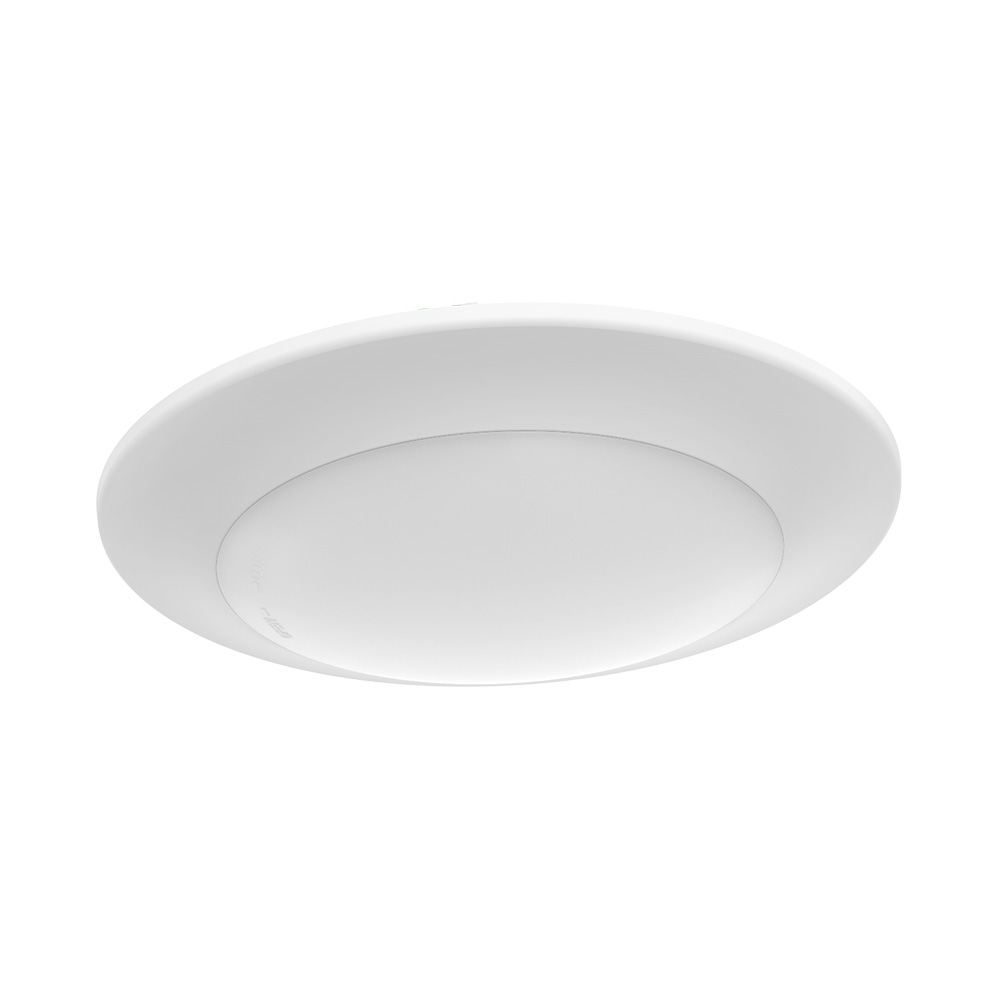

Illuminate your space with the sleek and modern REVOLVE. Designed to blend seamlessly with any decor, its thin profile ensures a sophisticated, unobtrusive look. Enjoy a hassle-free installation with surface mounting and easy colour temperature selection allowing customizable lighting to suit any mood or task. With energy-efficient LED technology and an integrated motion sensor, REVOLVE provides bright, long-lasting illumination, perfect for commercial and residential applications.
Features
- Sleek and modern design to blend seamlessly with any decor.
- Hassle-free installation.
- Easy color temperature selection.
- Energy-efficient LED technology.
Specifications
| Model | REV4-LED12 |
| Watts | 12W |
| Lumens | 900 lm |
| Efficacy (Lumens/Watts) | 70 lm/W |
| Voltage | 120V |
| CCT | Selectable (2700K, 3000K, 3500K, 4000K, 5000K ) |
| CRI | 80 |
| Operating Temp | -30°C to +50°C |
| Beam Pattern | 110 |
| Standard Lens | Polycarbonate Lens |
| Finish Options | White |
| Standard Options | TRIAC |
| Additional Options | SMS - PIR Motion Sensor |
| Certifications | ETL Listed for Canada & USA, per UL 1598 & CSA C22.2#250.0 Ed.5 Damp Location |
| Warranty | 5 Years |
- IES_RAB_REV4_07252024
IES Files
- REVOLVE-RAB-Install-Ins-ENG-FRE-2024-06-07
