RH1SRH1S

RHS-LED

QUICK OVERVIEW

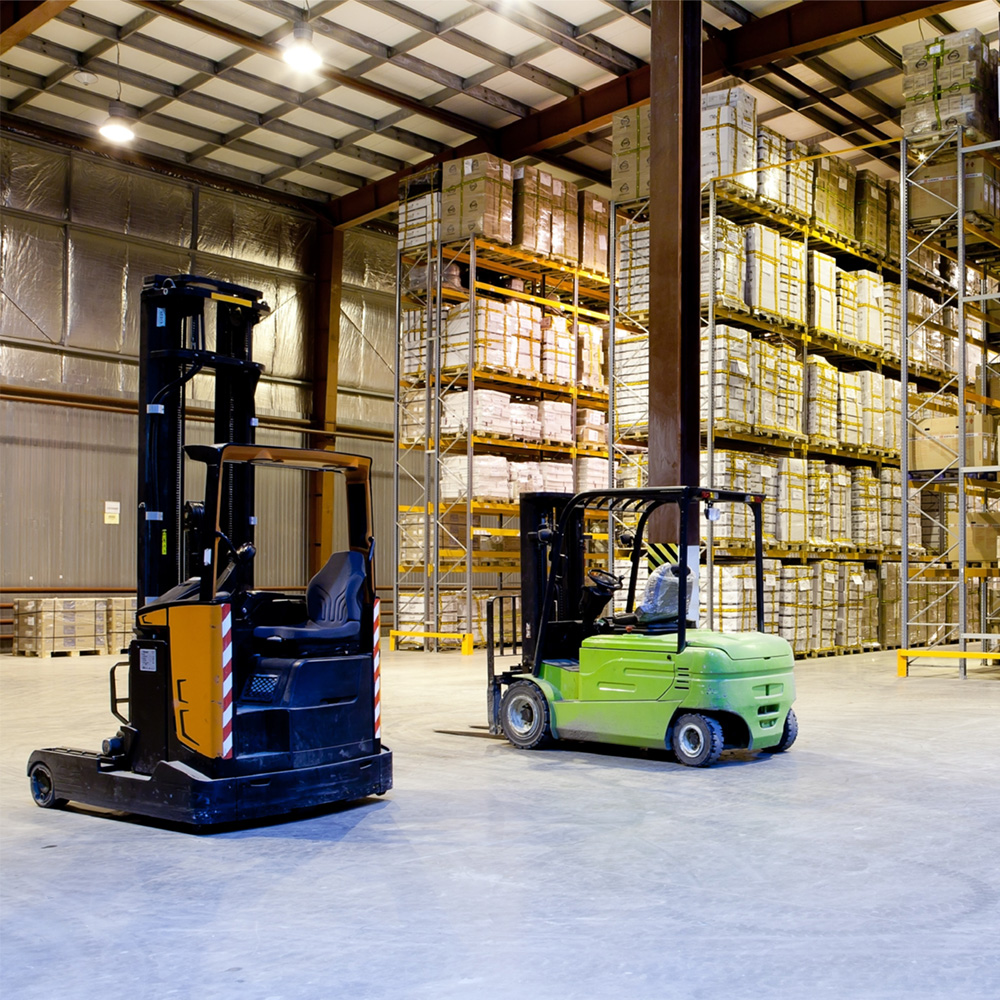

The RHS-LED Series of highbay luminaires are ruggedly designed, and deliver a high lumen output ideal for illuminating warehouses, manufacturing facilities, recreational facilities, gyms, food and beverage processing and commercial kitchens. This fixture series offers the most current, easy to use, affordable control options adding greater functionality to your installation.

NEMA4X and NSF certified.

Lutron Compatible Fixture using Athena Wireless Node (AWN).

RHS

FEATURES:

  • Ruggedly designed with die cast aluminum body and polycarbonate lens
  • NEMA4X and NSF certified
  • Colour Selectable fixture allows Installer to choose between 3500K/4000K/5000K at the time of installation
  • The Lumen adjustable fixture allows Installer to select between 3 wattage settings:
    • RH1S-LED100A60 – 100W/80W/60W
    • RH1S-LED150A100 – 150W/120W/100W
  • Easy to install with mounting hook and 2-meter cord for line voltage and 0.5-meter cord for 0 -10V dimming
  • At each wattage setting, the brightness can be adjusted using the DC dimmer and remote control (sold separately)
  • 12VDC Auxiliary available from fixture for lighting controls
  • Fixture can be suspended, pendant or yoke mounted (Yoke sold as a separate accessory)
  • Optional dual-functionality motion sensor/dimmer with easy plug-and-play install with no wiring needed
  • Optional smart lighting control available: Lutron Athena Wireless smart control allows zone and control changes digitally and wirelessly





Specification

Watts (Maximum) 100.2 W
Lumens (Maximum) 14802 Lm
Efficacy 147.8 Lm/W
Replaces Up To 250MH
Colour Temp VK - Colour Selectable (3500K/4000K/5000K)
Voltage 120-347V
CRI 83
Dimming 0-10V Dim to Off
THD 3.32%
PF 0.998
Beam Distribution 90 Degrees
LED Life (L78) 100,000 Hours
Housing Finish Matte Black
Housing Details Die Cast Aluminum
Lens Details Clear Polycarbonate Lens
Mounting Suspended*, Pendant, Yoke
Cable Length Input Power: 2m Cab Tire Cable (SJTW 3x18 AWG) Dimming and 12VDC AUX- 0.5m Cab Tire Cable (3x22 AWG)
Operating Temp. Without Motion Sensor: -40°C to 50°C, With Motion Sensor: -30°C to 50°C, With Battery Backup: 0°C to 50°C
Options Sold Separately Yoke, Wire Guard, Polycarbonate/ Aluminum Reflectors and Cover, Twistlock Motion Sensor/Wireless Dimmer and Remote Control, Emergency Battery Back-up, Junction Box Pendant Mount Kit, Adaptors for 1/2" NPT and 3/4" NPT Thread
Certifications cULus Listed for Canada and USA, per UL1598, CSA C22.2 NO. 250.0-18, 4th Ed, Wet Location, IP65, DLC Premium, NEMA 4X per UL 50E, CSA C22.2 No. 94.2:20, 3G vibration rated per ANSI/ IEEEC136.31-2010, NSF (Splash Zone and Non-Food Zone), 5 Year Warranty
