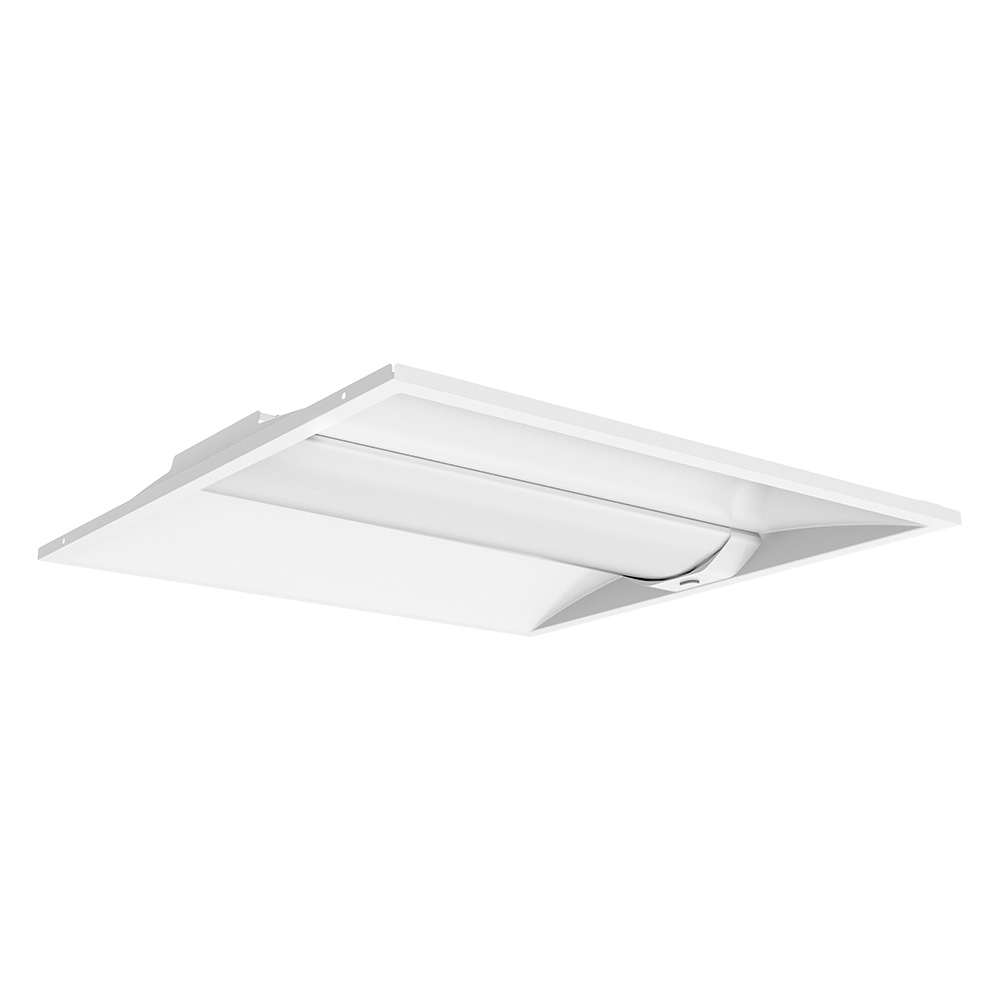

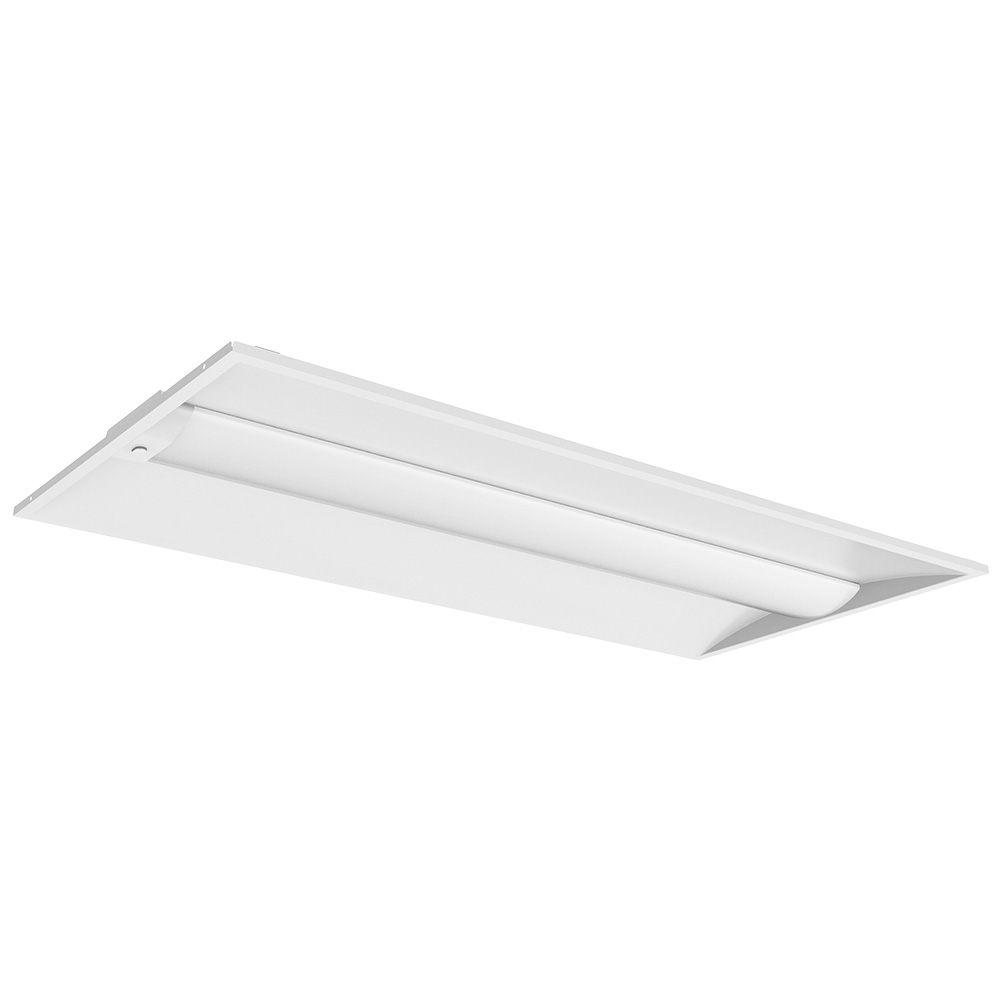

CBTS-LED

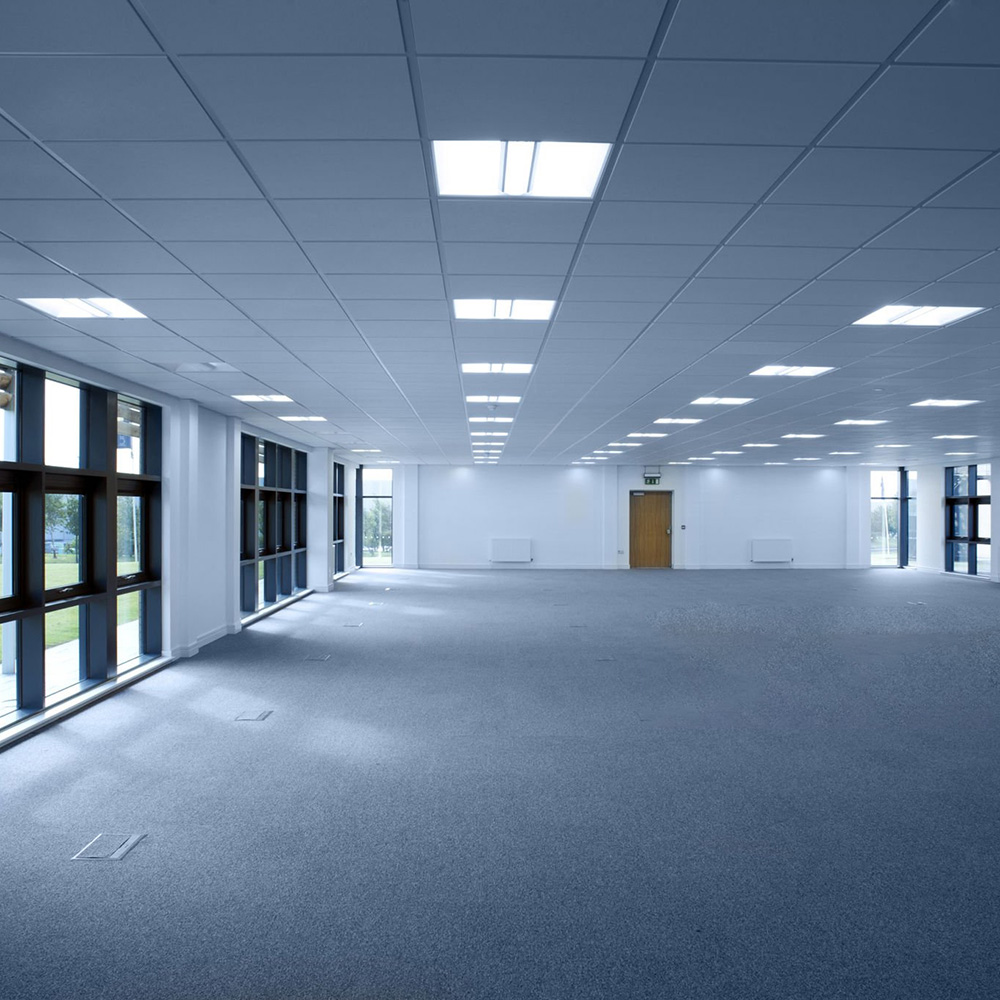

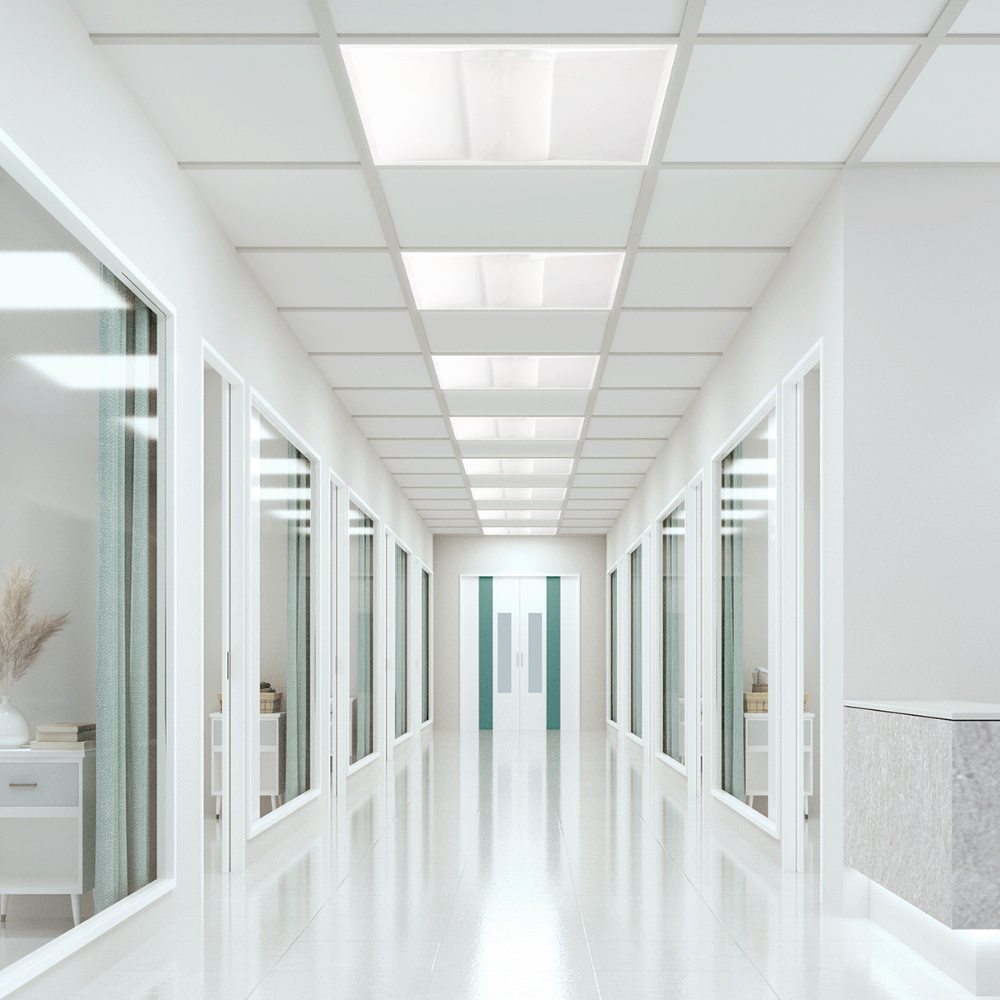

The CBTS-LED Series is a volumetric LED troffer engineered for performance and flexibility. Featuring a standard sensor receptacle along with lumen and CCT selection switches, it adapts easily to a wide range of applications. Designed to provide smooth, even illumination while minimizing glare, the CBTS-LED delivers comfortable, high-quality lighting. It is an ideal solution for schools, hospitality spaces, and commercial environments.
Features:
- Fully Selectable SKUs:
- All models have universal voltage (120-347V) and are wattage adjustable, lumen selectable, CCT selectable (3500K/4000K/5000K).
- Smart Controls:

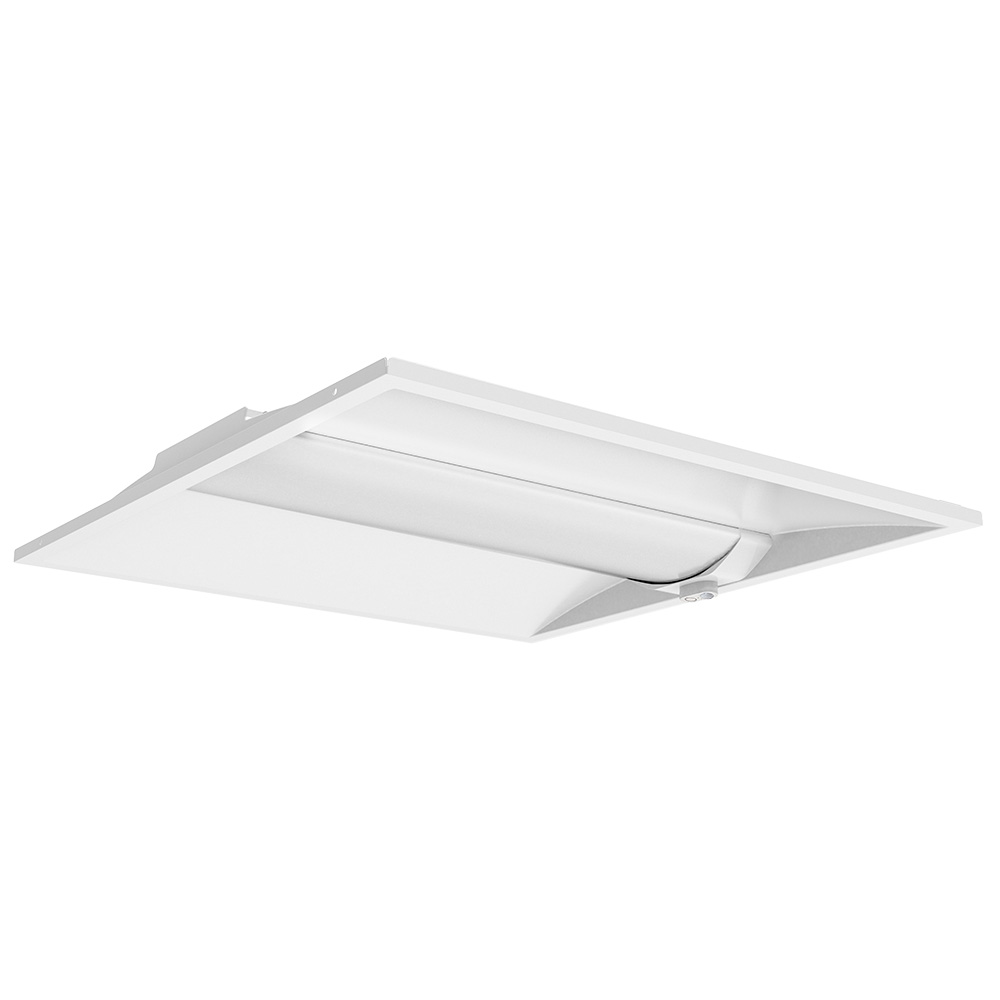

- Includes a receptacle for PIR motion sensor – Bluetooth or Remote controlled, enabling seamless automation and motion-based activation.
- Designed to provide a smooth, even illumination while minimizing glare.

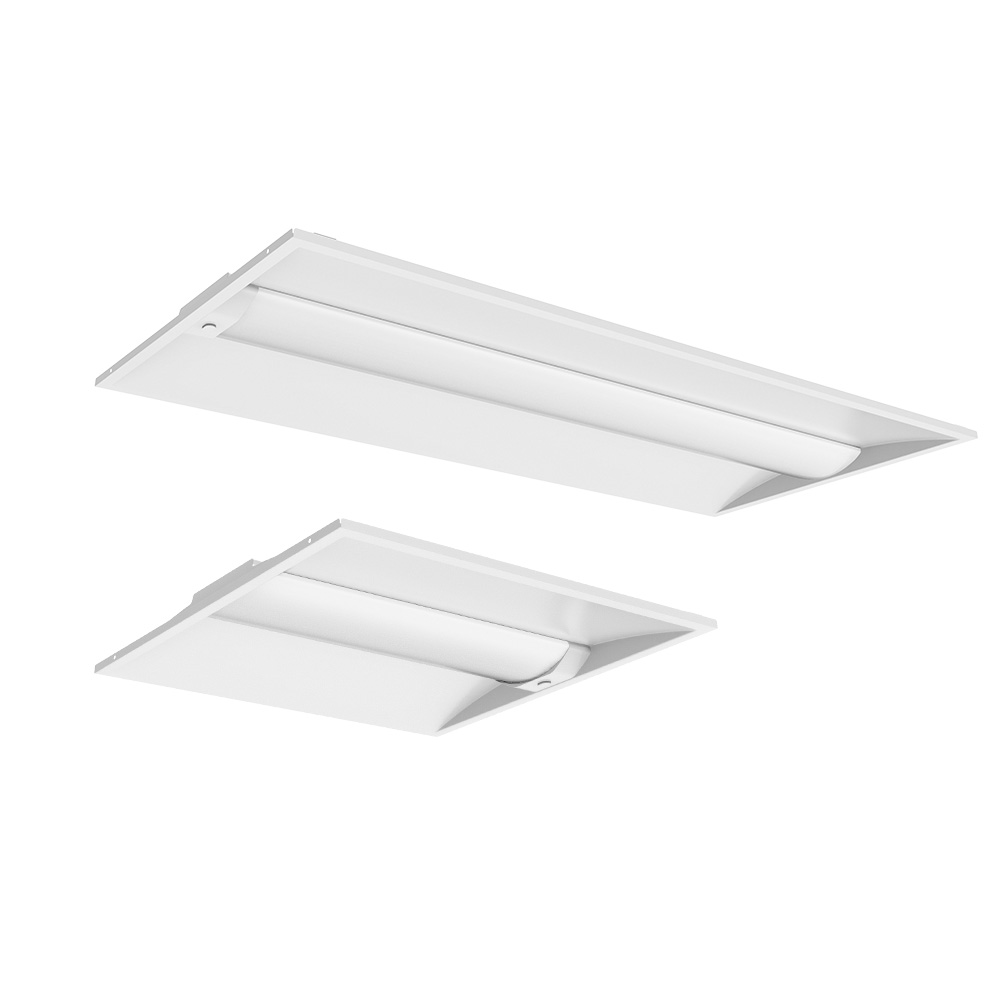

- Available in two sizes to fit various applications.
Specifications
| Light Output | 5800/4400/2900 lm (Lumen Selectable) |
| Efficacy | 145 lm/W |
| CCT | 3500/4000/5000K (CCT Selectable) |
| Beam Distribution | 120° |
| LED Lifetime (L85) | >100,000 Hrs |
| CRI | >83 |
| Wattage | 40/30/20W |
| Voltage | 120-347 V |
| Surge Protection | 2kV (Built-in Driver) as per IEC/EN61000-4-5 |
| Power Factor | ≥0.9 |
| THD | ≤15% |
| Dimming | 0-10V (0-100% Dimming, Dim to Off) |
| Housing | Steel Back housing |
| Finish | White |
| Lens | Frosted Polycarbonate |
| Weight | 6 lbs |
| Ambient Operating Temperature | -20℃ to 40℃ (-4°F to 104°F) |
| Mounting | Recessed in T-bar grid ceiling with integral earthquake clips, Surface mount/suspension mount (kit sold separately) |
| Certifications | cULus Listed for Canada and USA, per UL 1598, CSA C22.2 No. 250.0, DLC Premium |
| Controls | Bluetooth PIR Motion Sensor, PIR Motion Sensor (RC-500 remote needed to operate sensor), Bluetooth 3-KEY AC Line voltage wall switch, Bluetooth 5-KEY Battery powered wireless wall switch & plate |
