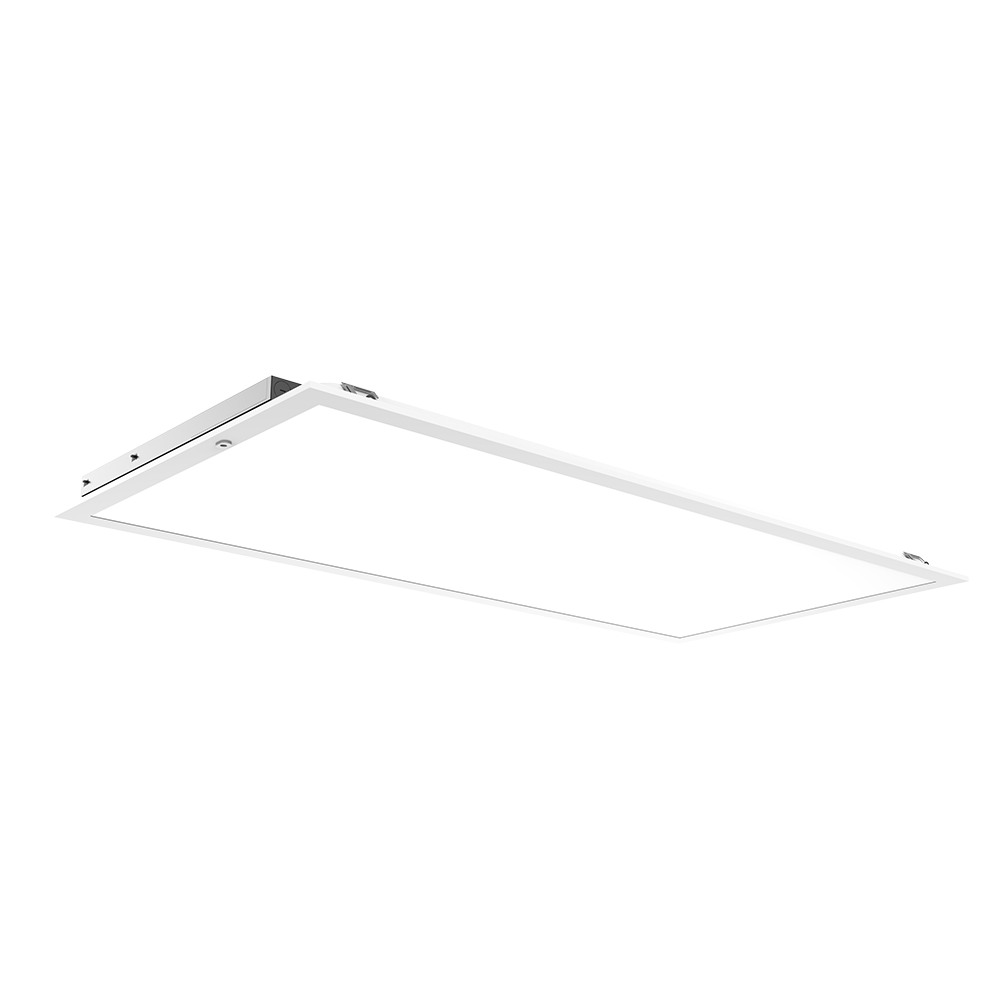

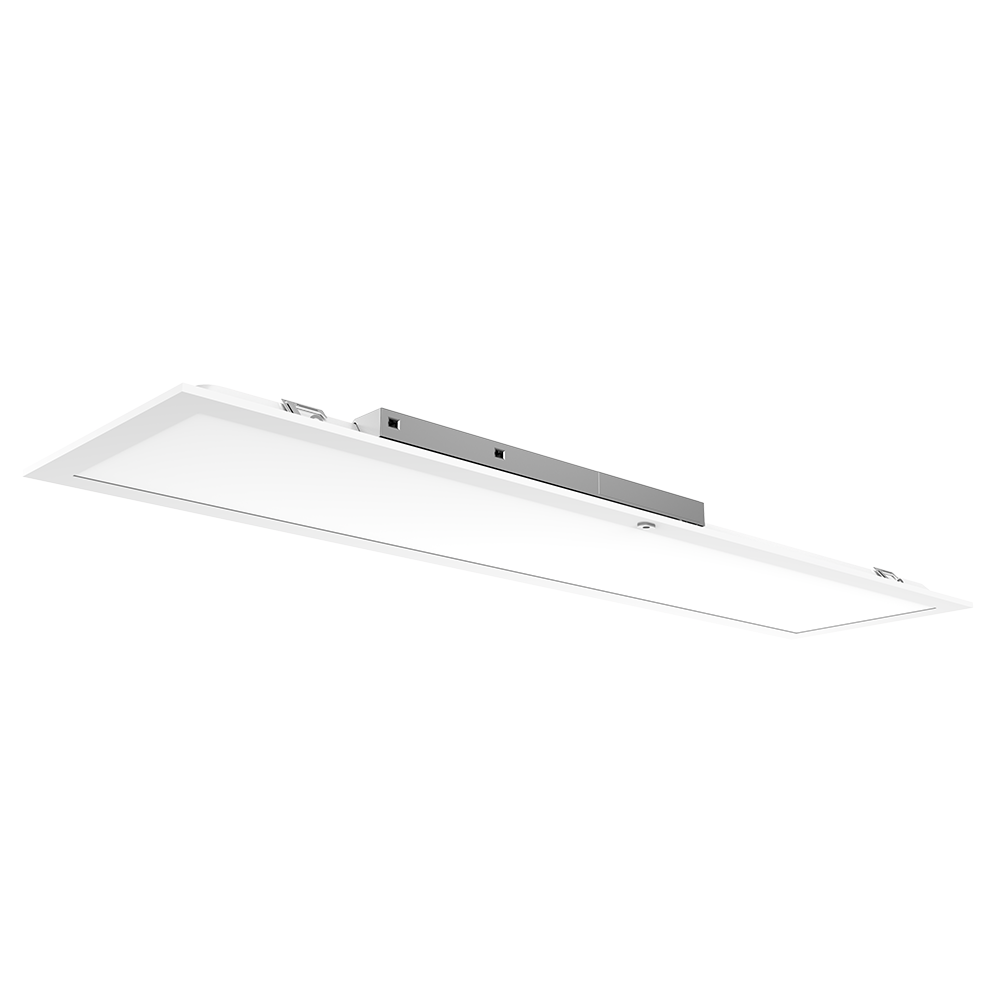

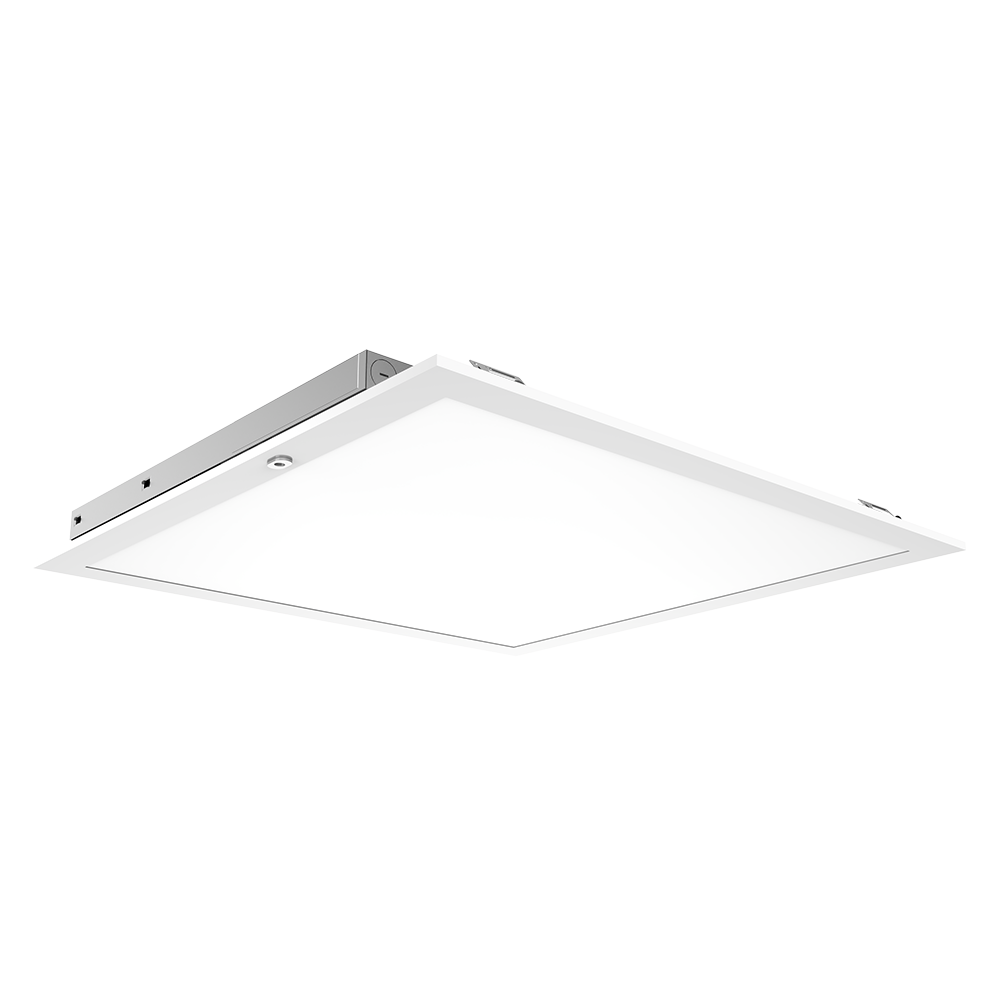

CPLH-LED Series
The RAB DESIGN CPLH is a ceiling panel light that combines high performance, intelligent design, and exceptional value. With advanced features like sensor-ready panels – including PIR sensor, high efficacy, and field-adjustable switches, it’s engineered to deliver unmatched efficiency and energy savings.
Now with:
Harnessing the power of Bluetooth Mesh technology, ControlLED by RAB DESIGN enables the seamless control of lighting fixtures connected through group synchronization; meeting your lighting needs how you want them, when you need them.
Download the app here:
Features
Maximize Efficiency, Minimize Costs
Sensor Ready:
- Includes a receptacle for PIR motion sensor – Bluetooth or Remote controlled, enabling seamless automation and motion-based activation.
Multiple Sizes:

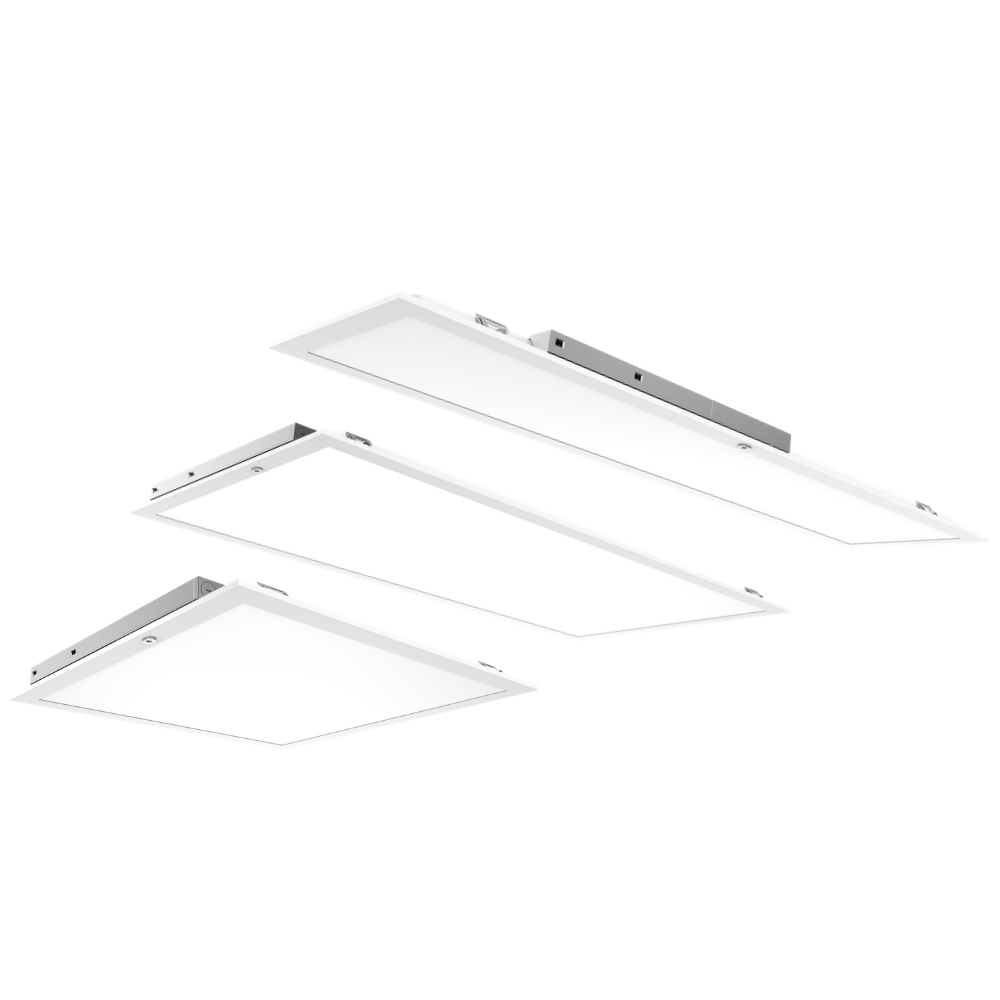

- Available in three sizes to suit various applications.
High Lumen Output:
- Delivers up to 7000 lumens with a high efficacy of 140 Lm/W for superior brightness and energy efficiency.
Contractor-Friendly:
- Optional large wiring compartment accessory for added convenience
Specifications
| Light Output | 5800/4200/2800 lm |
| Efficacy | 145 lm/W |
| CCT | CCT Selectable - 3500K/4000K/5000K |
| Beam Angle | 110° |
| LED Lifetime (L80) | >100,000 Hours |
| CRI | 83 |
| Wattage | 40/30/20W |
| Voltage | 120-347 V |
| Surge Protection | 2kV (Built-in Driver) as per IEC/EN61000-4-5 |
| Power Factor | ≥0.9 |
| THD | ≤20% |
| Dimming | 0-10V (5-100% Dimming, Dim to Off) |
| Ambient Operating Temperature | -20℃ to 40℃ (-4°F to 104°F) |
| Default CCT Setting | 4000K |
| Default Wattage Setting | 40W |
| Mounting | Recessed in T-bar grid ceiling with integral earthquake clips Surface mount, Suspension mount, Recessed drywall kit sold separately |
| Certifications | cULus Listed for Canada and USA, per UL 1598, CSA C22.2 No. 250.0, DLC Premium |
| Field Installed Controls | Bluetooth PIR Motion Sensor, PIR Motion Sensor (RC-500 remote needed to operate sensor) |
| Housing | Steel housing + Aluminum Frame |
| Lens | PMMA Lens |
| Finish | White |
| Weight (Fixture Only) | 4.40 lbs |
