FLEXILINE Series
The ultimate solution for highly versatile and adaptable lighting for indoor spaces. FLEXILINE offers unparalleled flexibility by enabling the user to effortlessly switch between direct/indirect light, different CCTs, and lumens. FLEXILINE offers multiple mounting options and unique shape configurations allowing for precise illumination tailored to any environment. Elevate your architectural designs with FLEXILINE and illuminate your vision with endless possibilities.
FEATURES:
Performance:
- CCT Selectable- 3000K/35000K/4000K
- Lumen Selectable – 3 settings available
- Up-Down Selection- 0%-100%, 15%-85%, 30%-70%
- Beam Distribution- 120°
Construction:
- Available in 4 sizes – 2′, 4′, 6′, 8′
- Available in White and Black finish

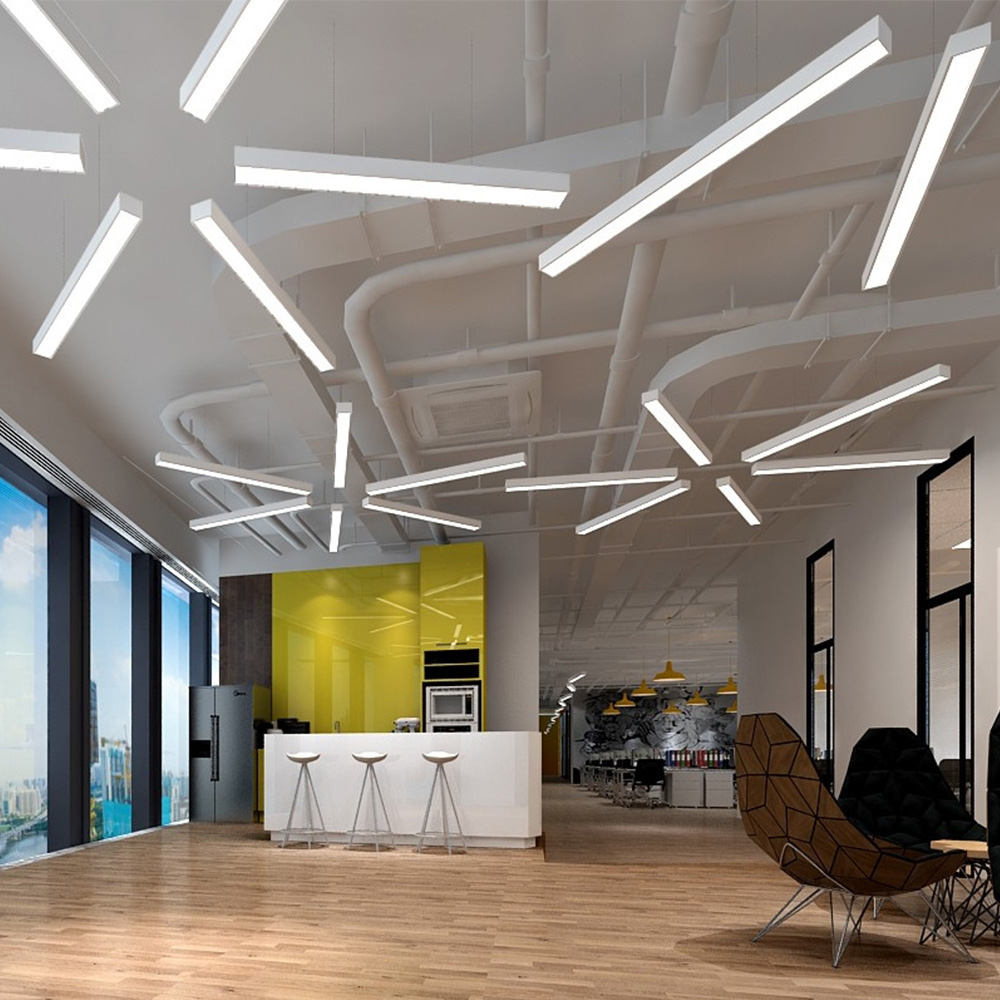

- Six different illuminated corner connected shapes to create any configuration of your choice
- Housing- extruded aluminum
- Lens- Frosted Polycarbonate Lens
Electrical:
- Voltage- 120-347V
- Pre-installed 6′ Power Cable (5×18 AWG)
- Continuous Run- Max. length of 40ft at 120V & 100ft at 347V
Mounting:
- Suspension Mount – 6′ power cable & air craft cable included in the box
- Suspension Mount for T-grid, Surface mount, Wall mount
Controls:
- 0-10V Dimming (Dim to Off)
Specifications
Light Output | 2700/1900/ 1600 lm (Lumen Selectable) |
Efficacy | 136 lm/W |
CCT | CCT Selectable - 3000K/3500K/ 4000K |
Up%-Down% Selection | 0%-100%, 15%-85%, 30%-70% |
Beam Distribution | 120° |
LED Lifetime (L80) | >100,000 Hrs |
CRI | 85 |
Wattage | 20/15/12W |
Voltage | 120-347V |
Surge Protection | 2kV as per IEC/EN61000-4-5 |
THD | <10% |
Power Factor | >0.99 |
Cord | Pre-installed 6' Power Cable (5x18 AWG) |
Continuous Run | Max. length of 40ft at 120V & 100ft at 347V |
Housing | Extruded Aluminum |
Lens | Frosted Polycarbonate Lens |
Weight | 3.0lbs |
Ambient Operating Temperature | -20°C to 45°C (-4°F to 113°F) |
Mounting | Suspension Mount - 6' power cable & air craft cable (Standard), Suspension Mount for T-grid, Surface mount, Wall mount |
Certifications | cULus Listed for Canada and USA, per UL 1598, CSA C22.2 No. 250.0, DLC Standard & Premium |
Controls | 0-10V Dimming (Dim to Off) |
