SFL-LED

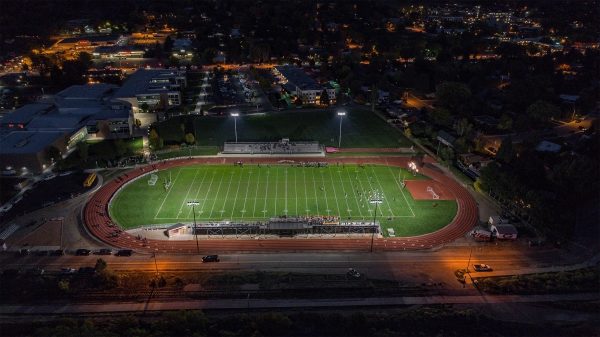

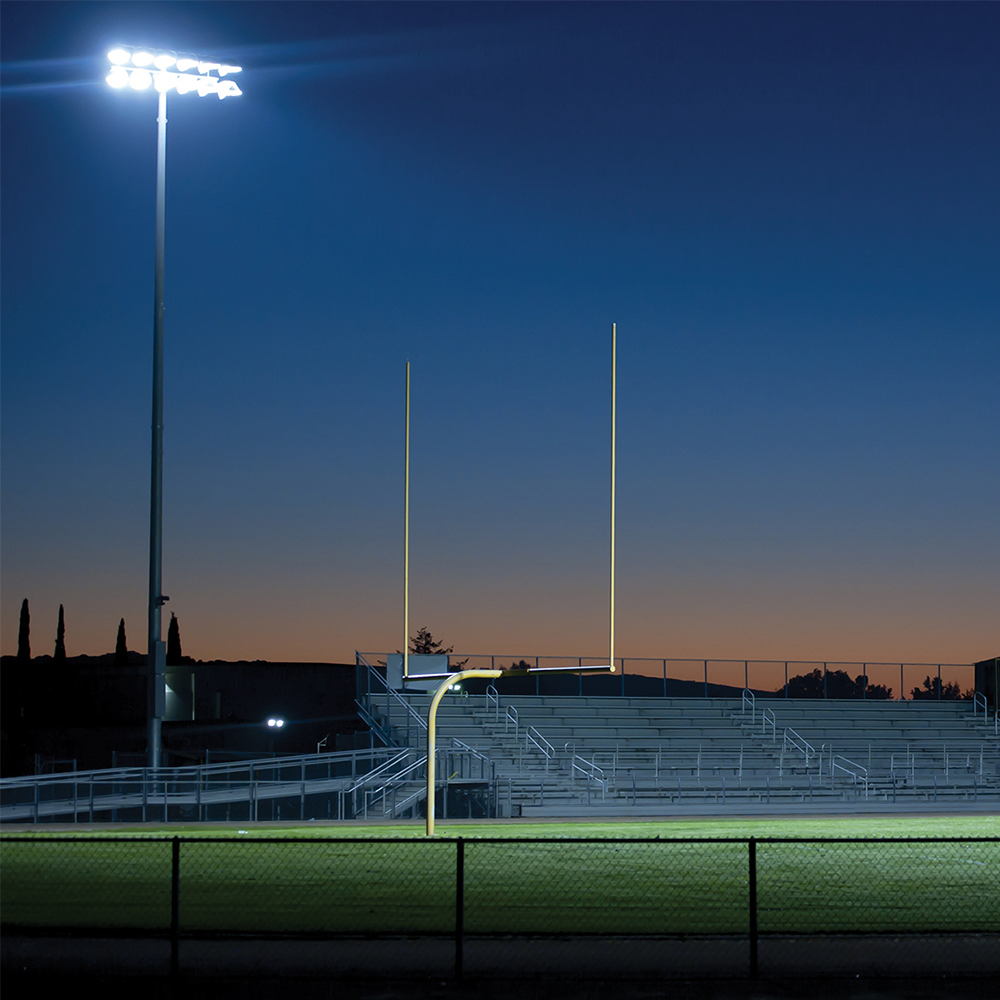

The SFL-LED series is a high lumen flood light that can be used in large sports, commercial, and industrial applications. Featuring a wide range of options and distinct features such as a lumen select switch, and mounting the driver remotely, this fixture can be customized to your needs and delivered to you within a quick time frame.
The SFL is robust, durable, and features an industry leading 7-year warranty.
Ideal for airplane hangars and large warehouses and distribution centers and more.
SFL 1/2
Construction
- Ruggedly designed with die cast aluminum housing and clear polycarbonate lens.
- Intelligently designed heat sink to facilitate maximum air flow.
- Fixture is lightweight compared to most sports floods and has angle increments calibrated on the housing, standard yoke mount and slip fit mount for precise aiming.
Electrical
- Standard unit comes with 120-347V driver with 6KV internal surge suppressor and 10KV external surge suppressor and has a power factor above 0.95.
Light Performance
- Standard unit comes with a dedicated CCT of 4000K or 5000K.
- Fixture is available in 20°(only SFL 2),30°, 40°, 80° beam distributions for Sports flood applications. Available with 80° beam for highbay applications.
Mounting
- 3 mounting options available – Yoke, slip fit and highbay yoke. Purchase mounting option separately. Mounting option is field installed.
SFL 3/4
FEATURES:
Design and Construction:
- Die cast aluminum body and polycarbonate lens.
- IP66 Rated Fixture to prevent dust and water ingress.
- Smart design with the placement of the driver away from the heatsink facilitating easy installation, and lower weight in retrofit projects.
- Available with a Yoke or Slip-fitter ( Factory Installed).
- Custom cable lengths available to facilitate remote mounting of the driver – 5ft,10ft, 30ft,65ft (Sold Separately)
- Corrosion resistant powder coating. Salt Spray tested for 1000 hours. Light Output and Distribution
- SFL3/SFL4 delivers a high lumen output (~126,000 lumens for SFL3 and ~185,000 lumens for SFL4) that can be adjusted on
- the field by the Installer. Fixture has 3 lumen adjustment settings.
- Multiple beam distributions available to fulfill most application requirements.
- Available in 4000K or 5000K colour temperature.
Precise Aiming Mechanism
- Fixture head can be aimed 180° in a vertical or horizontal plane for improved aiming.
- Calibrated angle increments on fixture housing and mounting system for precise aiming.
- Laser Pointer accessory to accurately aim the fixture to the desired location.
- Visor shield can be attached at the top or bottom to focus the light and minimize glare.
Electrical
- Drivers have built-in 10KV + External 10KV surge protection. (Additional 20KV Surge protection provided as an option)
- Power factor >0.99 results in reduced power losses and an efficacy of 155 lumens per watt
Specifications
| Watts | 485.6 W |
| Lumens | 71040 Lm |
| Efficacy | 146.3 Lm/W |
| Voltage | 120-347V, 347V |
| Colour Temperature | 4000K, 5000K |
| Replaces | 750W MH |
| CRI | 70 |
| Dimming | 0-10V Dim to Off (0-100%) |
| Surge Protection | 6 KV Internal (with driver), 10 KV External (added to every fixture), Optional 20kV Surge Protection |
| THD | 15% |
| PF | 0.99 |
| Beam Distribution | 30°, 40°, 80° |
| LED Life (L76) | 100, 000 Hours |
| Housing Finish | Matte Black, Custom Colours (optional) |
| Housing Details | Die Cast Aluminum |
| Lens Details | Clear Polycarbonate Lens |
| Mounting | Yoke Mount, Slip Fit, Highbay Yoke Mount |
| Operating Temp | -40°C to +45°C |
| Input Power / Dimming Cord Length | 1 meter Cab tire cable |
| Factory Installed Options | 7 Pin Receptacle with Shorting Cap ANSI C136. 41-2013 compliant, Photocell Optional 20kV Surge Protection |
| Options Sold Separately | Standard Yoke Mount, Slip Fitter, Highbay Yoke Mount, Visor, Laser Pointer (comes with one rechargeable battery and battery charger) |
| Certifications | UL, Wet Location, IP66, 3G Vibration Tested & DLC 5.1 Premium |
| Warranty | 7 Years |
