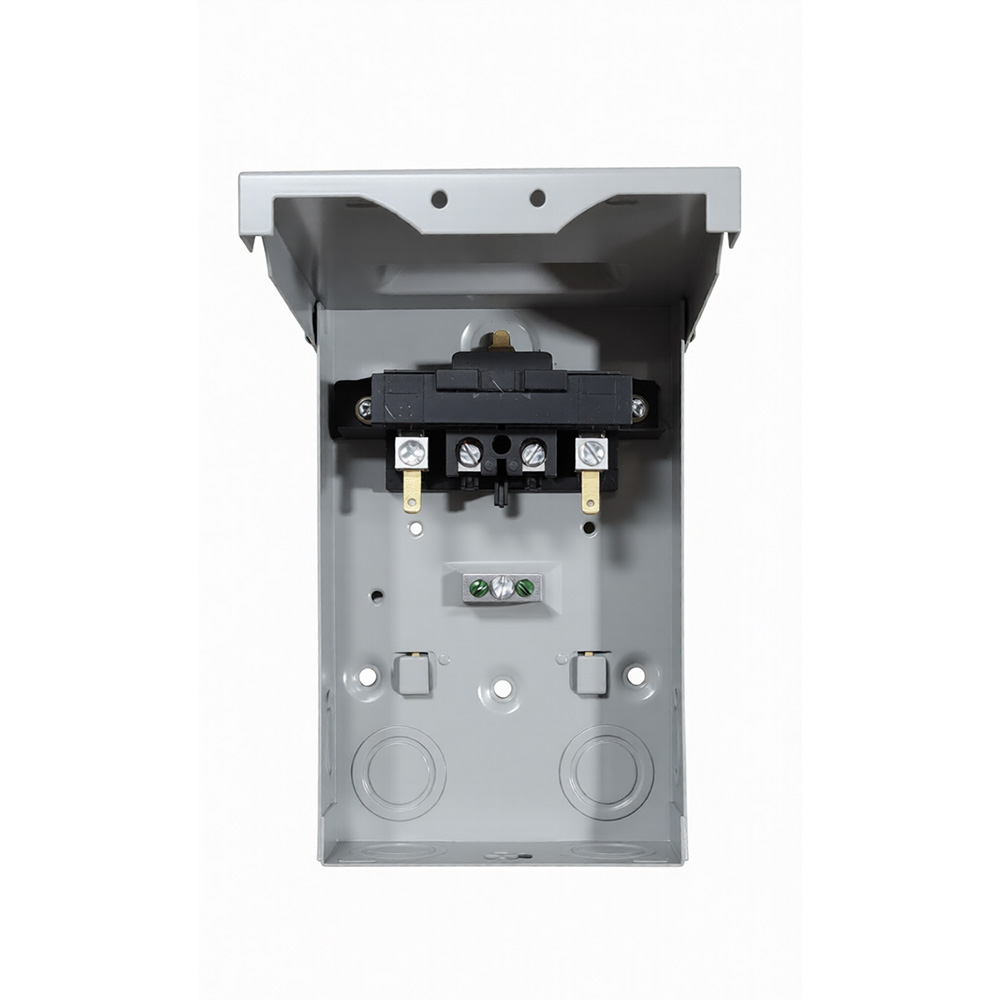

AC Disconnect

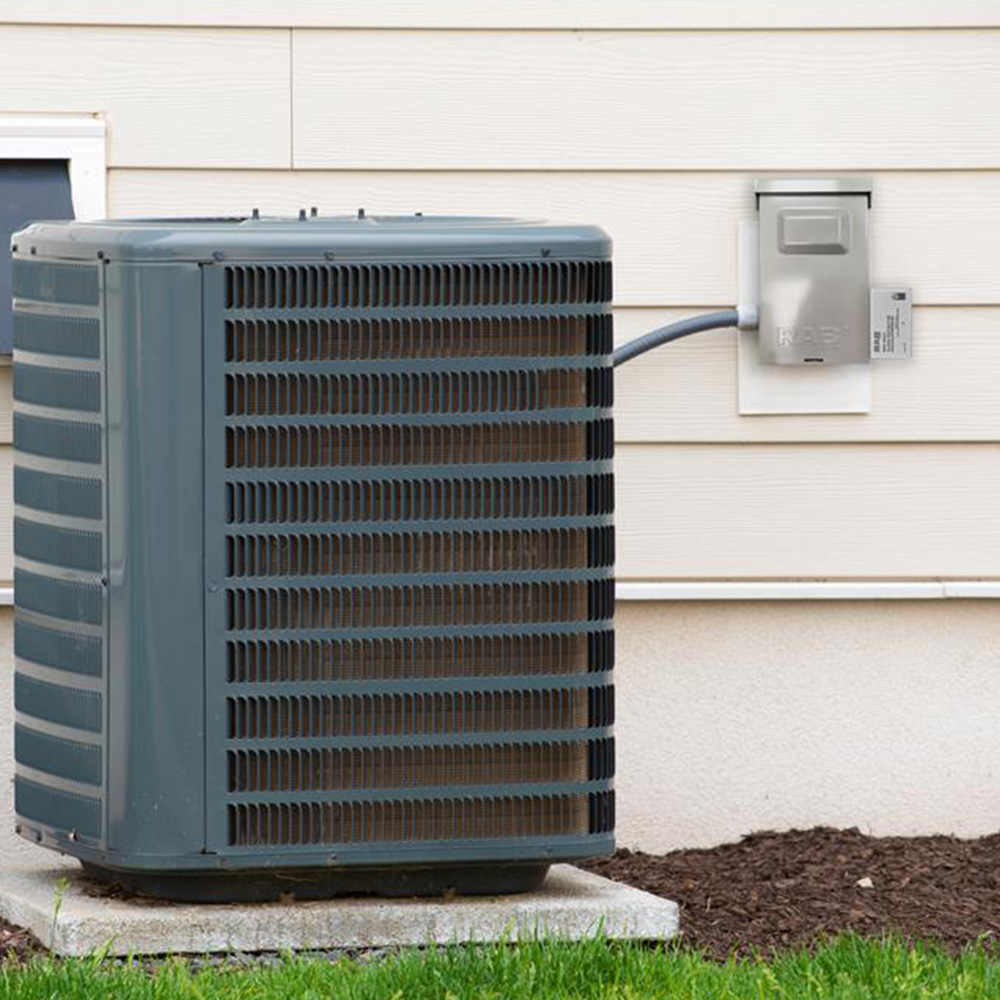

RAB DESIGN’s contractor friendly AC disconnect ensures reliable, safe, and efficient control of electrical system, enabling quick power disconnection during maintenance or emergencies. Ideal for residential, commercial, and industrial use.
Features:
The RAB DESIGN AC Disconnect puts user safety first with its intuitive pullout switch which is clearly marked with “ON” and “OFF” positions and can only be used when in the “OFF” position to mitigate any chance of electrical mishaps.
Durable Metallic Housing:
- Weather-resistant powder coating for indoor and outdoor use.
Flexible Conduit Entry:
- Multiple knockouts for 1/2″, 3/4″, and 1″conduit size entry.
Secure Cover:
- Pad-lockable design that opens upward and locks in place for added protection.
Easy Mounting:
- Hangable pilot holes for quick and simple installation.
Streamlined Setup:
- Toolless access to the wiring compartment for quick convenience.

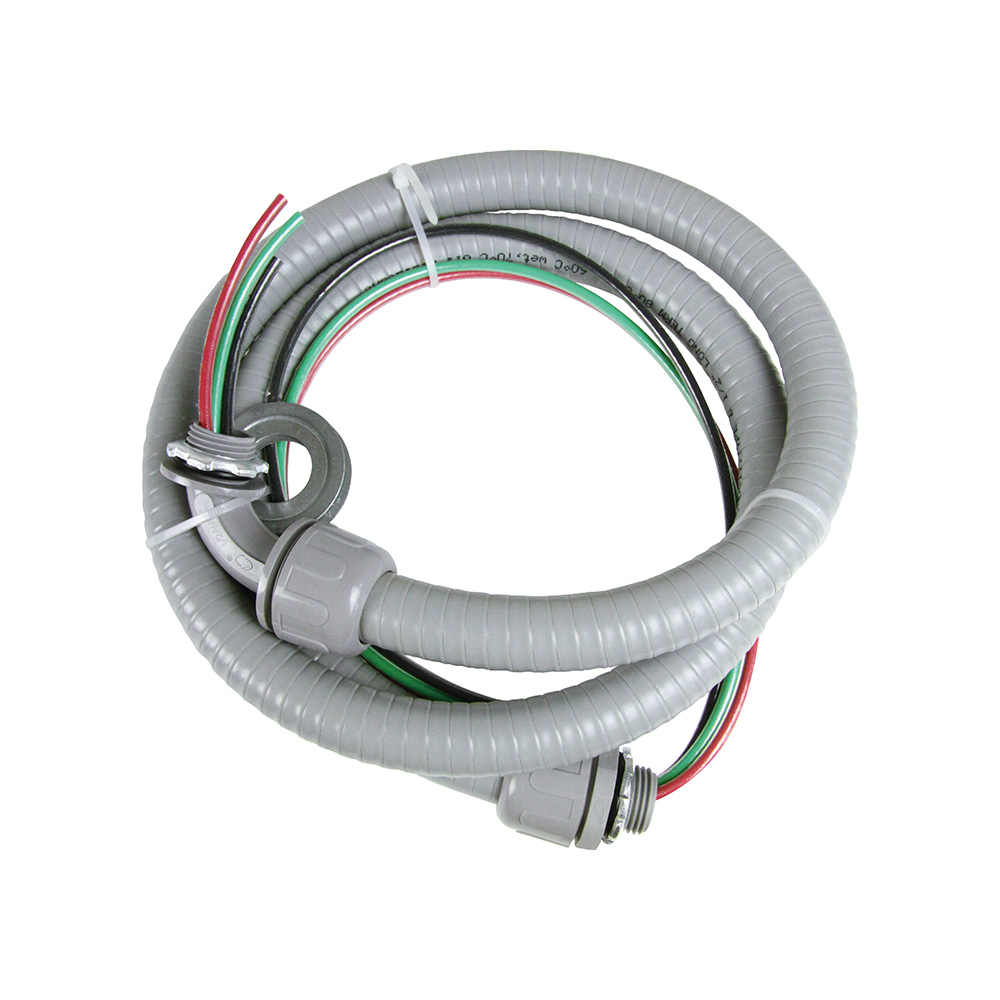

Accessories sold separately:
- 1/2″, 6ft Long, Non Metallic conduit, fittings, straps w/ 3 x 10 AWG cables.
- 3/4″, 6ft Long, Non Metallic conduit, fittings, straps w/ 3 x 8 AWG cables.
Includes:
- Anodized copper terminals designed to deliver long-term reliability.
- Easy identifiable green ground screw to secure ground wires to electrical junction box.
- Fold-away feature protects the lock tab from accidental impacts, extending its lifespan and reliability.
Specifications
| Voltage | 120, 240V AC |
| Amperage | 60A |
| Switch Type | Pull Out |
| Fuse Type | Non-Fused |
| Housing | Steel Housing |
| Paint Specs | Weather and Corrosion resistant Polyester powder coat finish |
| Housing Finish | Light Grey |
| Cover | Opens upwards & locks |
| Lock Type | Pad lockable |
| Wire Size | #14-3 |
| Terminals | Electro plated copper |
| Knockouts | Six - Accommodates 1/2", 3/4", and 1" conduits |
| Dimensions | 8.77" x 5.45" x 3.18" |
| Weight | 1.25 kgs (2.76 lbs) |
| Certifications | cUL Listed for Canada per CSA 22.2 No. 29 NEMA 3R |
