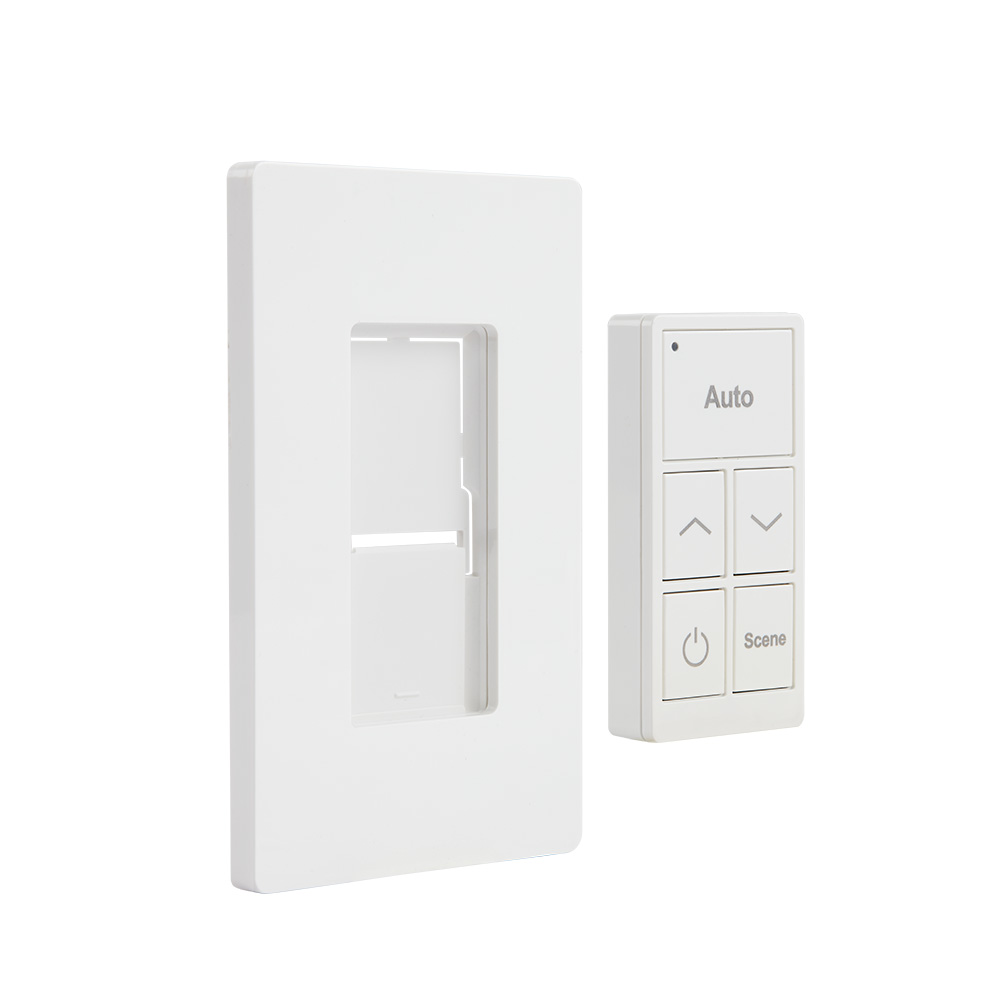

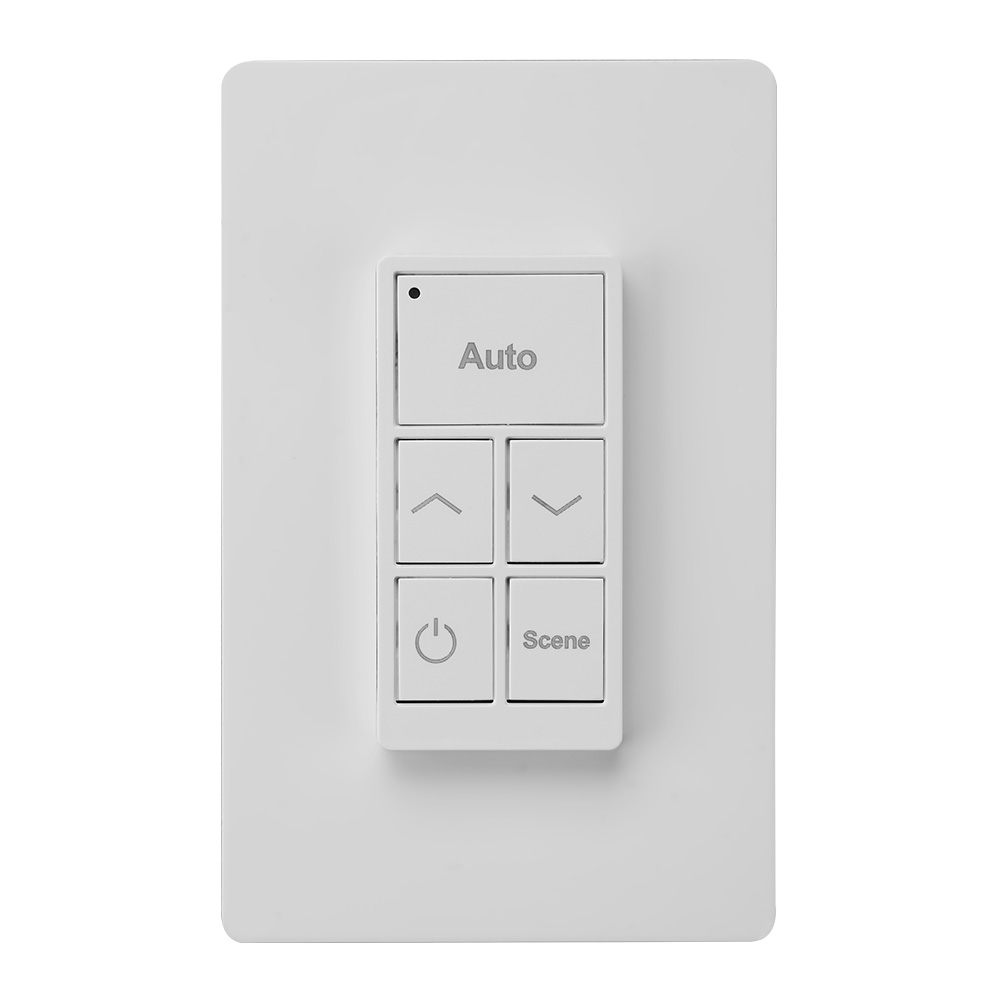

Bluetooth 5-Key Battery Powered Wall Switch
The ControlLED Bluetooth 5-key battery powered wall switch provides seamless wireless control of luminaires with both flexibility and convenience. Designed for versatile use, it functions as a handheld remote or can be mounted for traditional wall switch operation.
Features:
- Versatile Use:
- Use as a portable handheld remote.

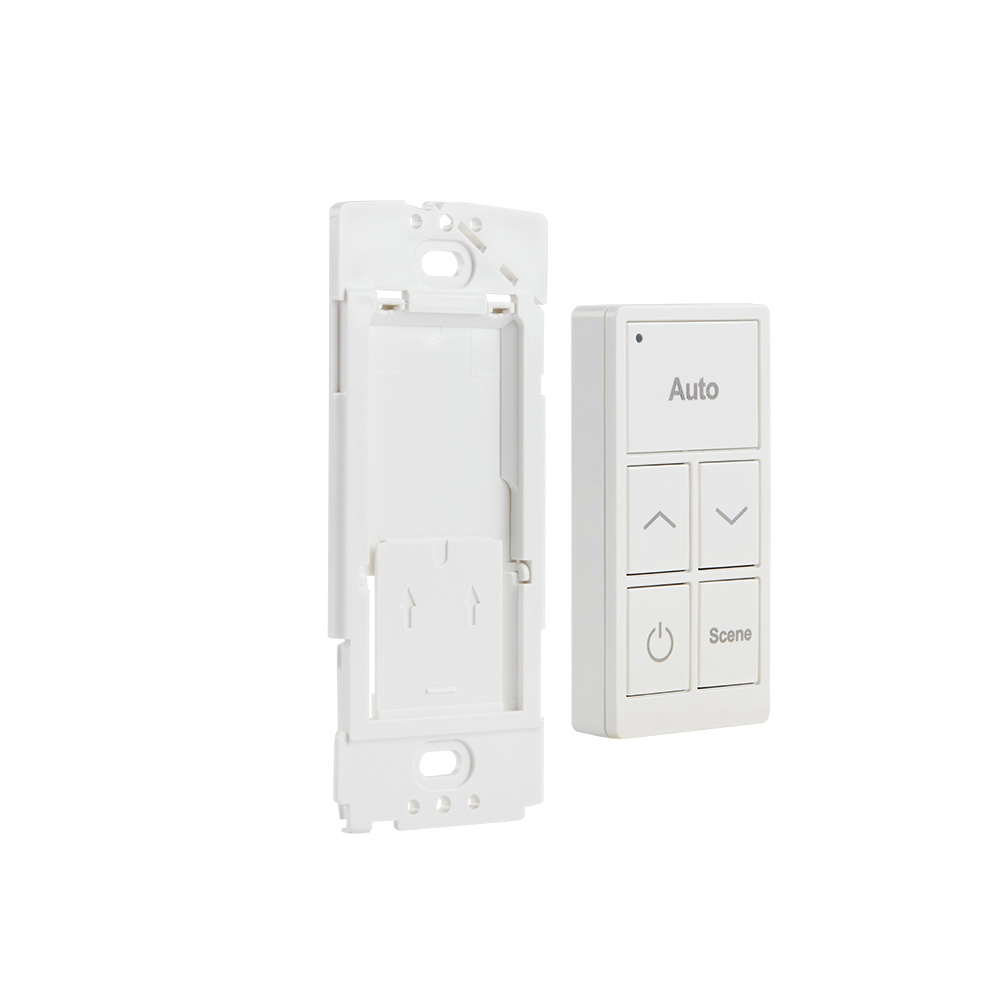

- Use in an existing junction box using a standard wall plate.
- Mount directly on a wall without a junction box.
- Save up to 3 scenes.
- Turn luminaires ON/OFF, control dimming, change scene and enable AUTO sensor mode.
- Compatible with standard wall plates.
- Bluetooth mesh network.
- DLC – Networked Lighting Control (NLC).
Specifications
| Input Voltage | 3VDC |
| Compatible Battery | 1 x CR2032 |
| Bluetooth Transmit | 100ft Max. |
| Radio Frequency | 2.4GHz ±75MHz |
| Bluetooth Version | 5.0 |
| Housing Material | Polycarbonate (UL 94-V0) |
| Housing Finish | White |
| Indoor/Outdoor Use | Indoor Use Only |
| Operating Temperature | 0°C to 30°C (32°F to 86°F) |
| Storage Temperature | -18°C to 50°C (0°F to 122°F) |
| IP Rating | IP20 |
| Programming Tool | Programmable using the ControlLED App |
