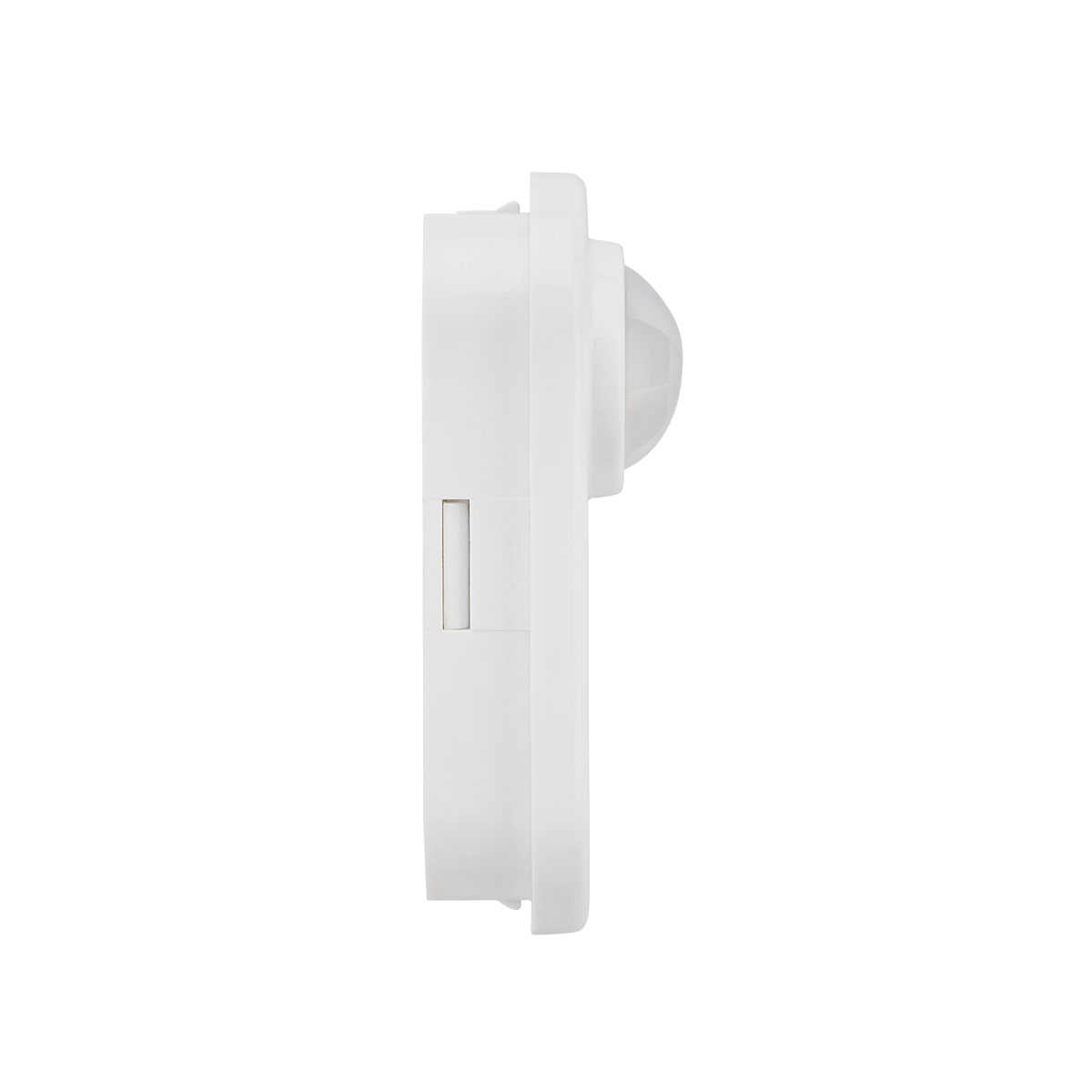

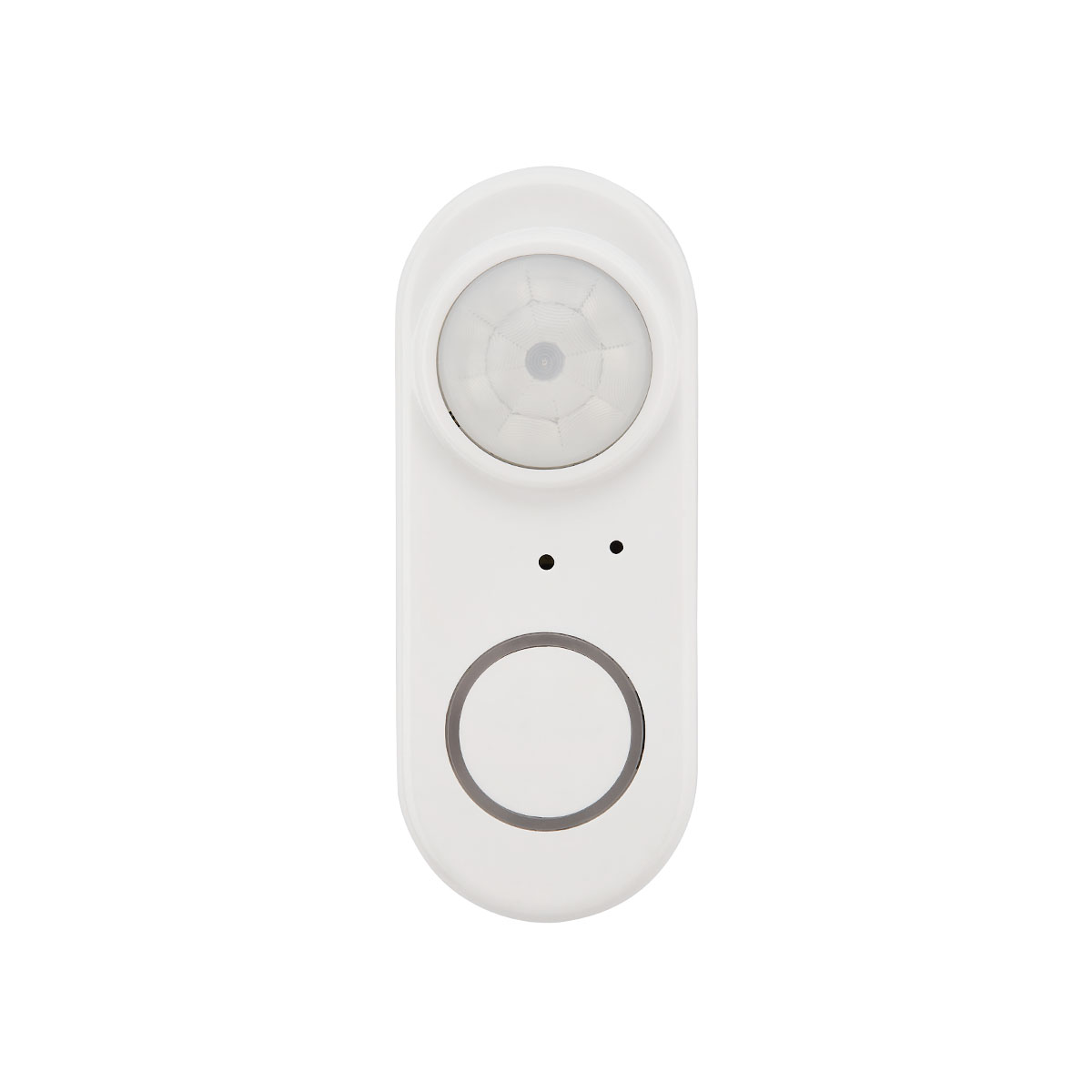

Lowbay Bluetooth PIR Motion/DLH Snap-in Sensor
The ControlLED lowbay bluetooth PIR sensor offers reliable and wireless bluetooth networked controls in lowbay applications. It ensures fast and easy installation and commissioning using the ControlLED Mobile App.
Features
- PIR motion and daylight harvest sensor
- Bluetooth mesh network
- DLC – Networked Lighting Control (NLC) & Luminaire Level Lighting Control (LLLC)
Specifications
| Input Voltage | 12VDC |
| Input Current | 25mA Max. |
| Input Power | 0.3W |
| Output Current | 10mA Max. Sinking Current |
| Output Power | 0.1W |
| Dimming | Class 2, 0-10VDC |
| Bluetooth Transmit | 100ft Max. |
| Radio Frequency | 2.4GHz ±75MHz |
| Bluetooth Version | 5.0 |
| Housing Material | Polycarbonate (UL 94-5VA) |
| Housing Finish | White |
| Detection Range | 40ft Max. |
| Mounting Height | 18ft Max. |
| Indoor/Outdoor Use | Indoor Use Only |
| Operating Temperature | -30°C to 55°C (-22°F to 131°F) |
| Storage Temperature | -30°C to 85°C (-22°F to 185°F) |
| IP Rating | IP20 |
| Programming Tool | Programmable using the ControlLED App |
| Default Motion Sensor | On |
| Default Mode | Occupancy |
| Default High End Trim | 100% |
| Default Sensitivity | High |
| Default Hold Time (T1) | 20 min |
| Default Standby Dim | 50% |
| Default Standby Time (T2) | 1 min |
| Default Daylight Harvest | Off |
| Default Linkage | Off |
| Default Linkage Level | 100% |
