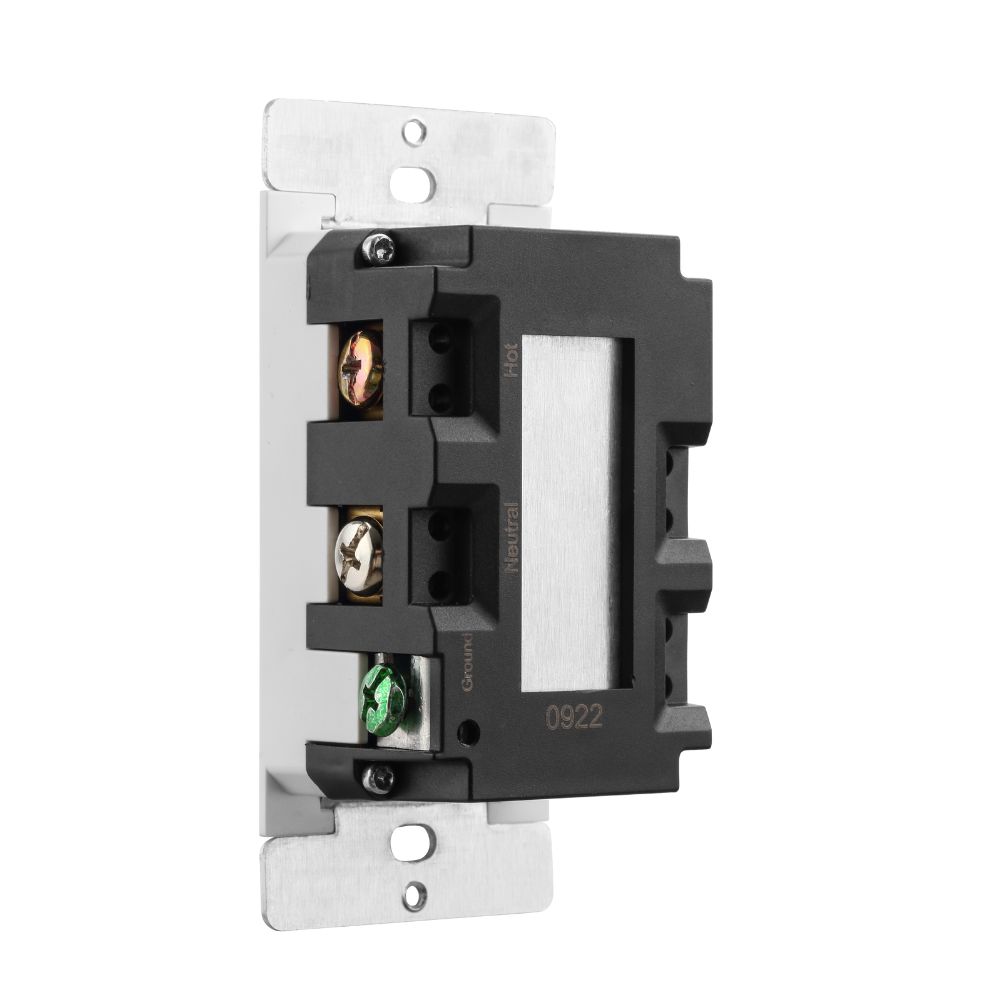

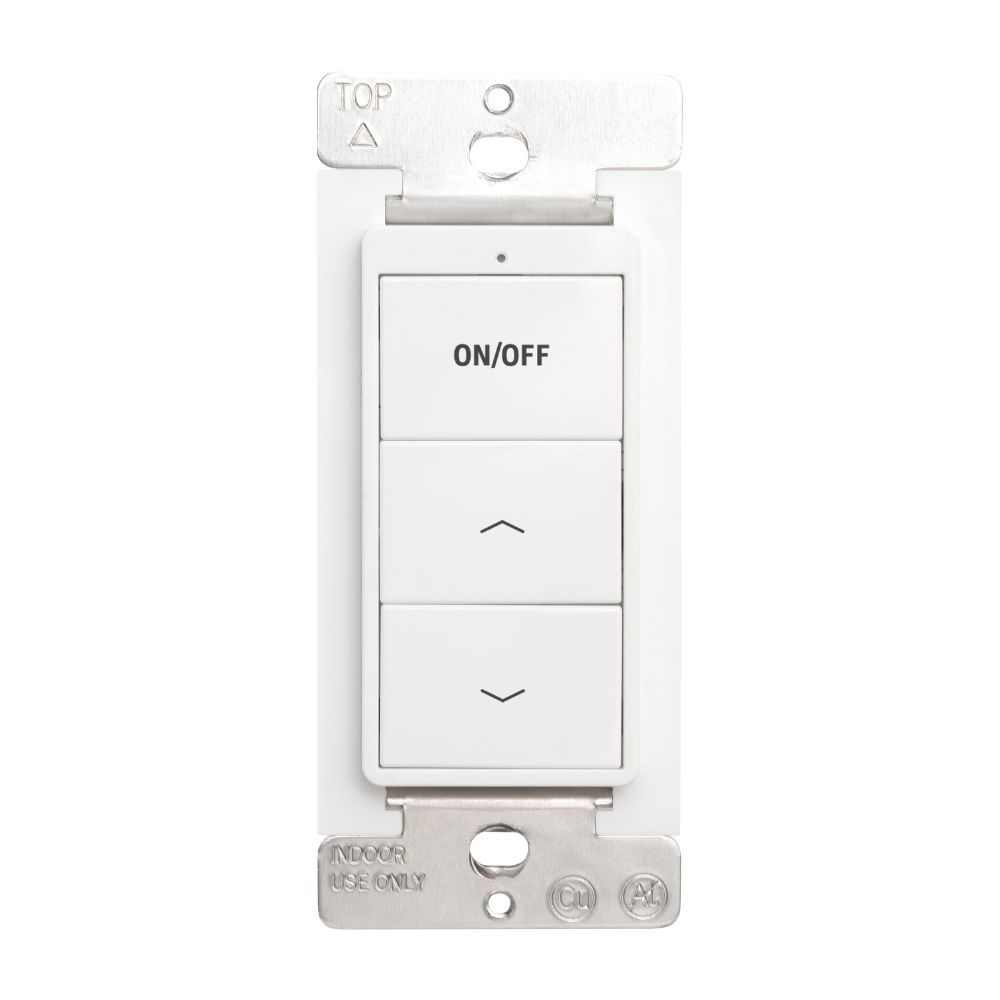

Bluetooth 3-Key Line Voltage Wall Switch
The ControlLED Bluetooth 3-key AC line voltage wall switch offers seamless control of luminaires. This retrofit solution is designed to provide programmable settings through the ControlLED Mobile App, making it a versatile and convenient option for modern lighting systems.
Features
- Turn a group of luminaires ON/OFF and control dimming
- Retrofit installation for existing wiring
- (Neutral is required)
- Compatible with all standard wall plates
- (Not included)
- Bluetooth mesh network
- DLC – Networked Lighting Control (NLC)
Specifications
| Input Voltage | 120-277VAC |
| Input Current | 10mA Max. |
| Bluetooth Transmit | 100ft Max. |
| Radio Frequency | 2.4GHz ±75MHz |
| Bluetooth Version | 5.0 |
| Housing Material | Polycarbonate (UL 94-5VA) |
| Housing Finish | White Plate & Black Housing |
| Indoor/Outdoor Use | Indoor Use Only |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -30°C to 85°C (-22°F to 185°F) |
| IP Rating | IP20 |
| Programming Tool | Programmable using the ControlLED App |
