LHA Series

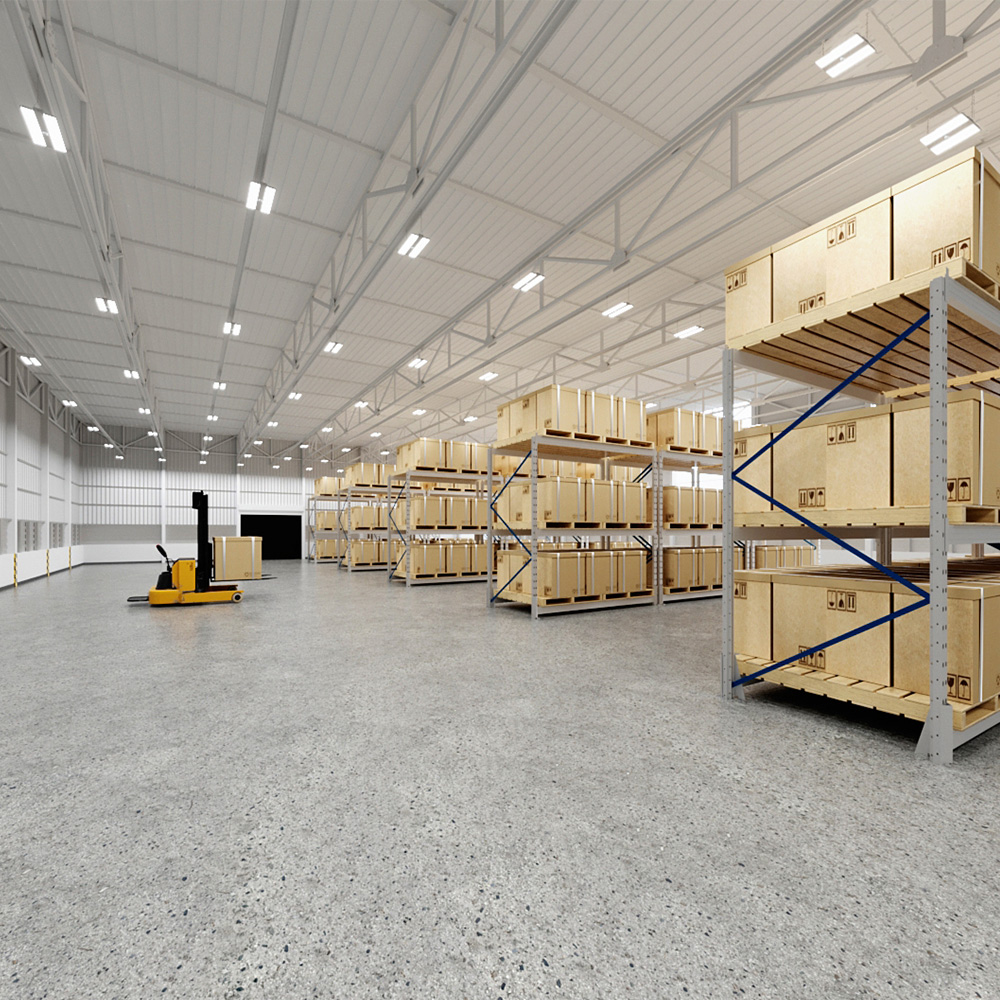

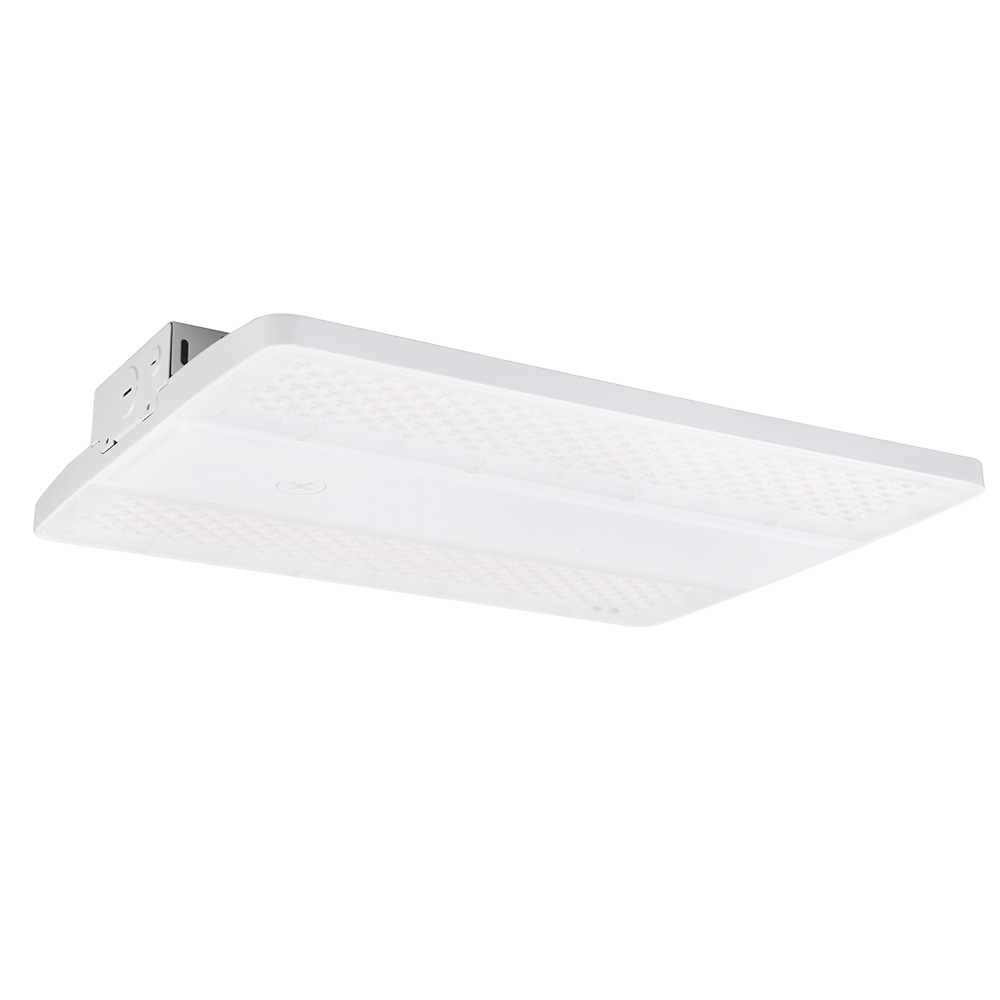

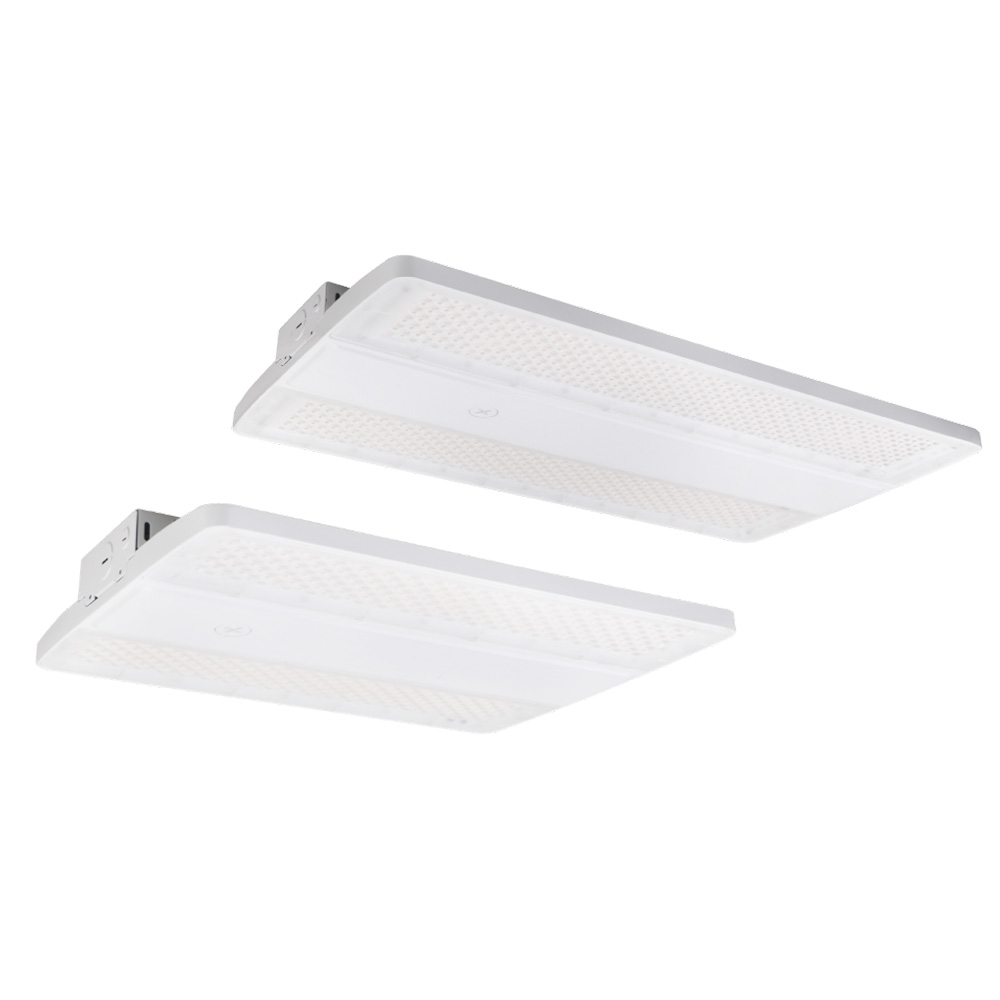

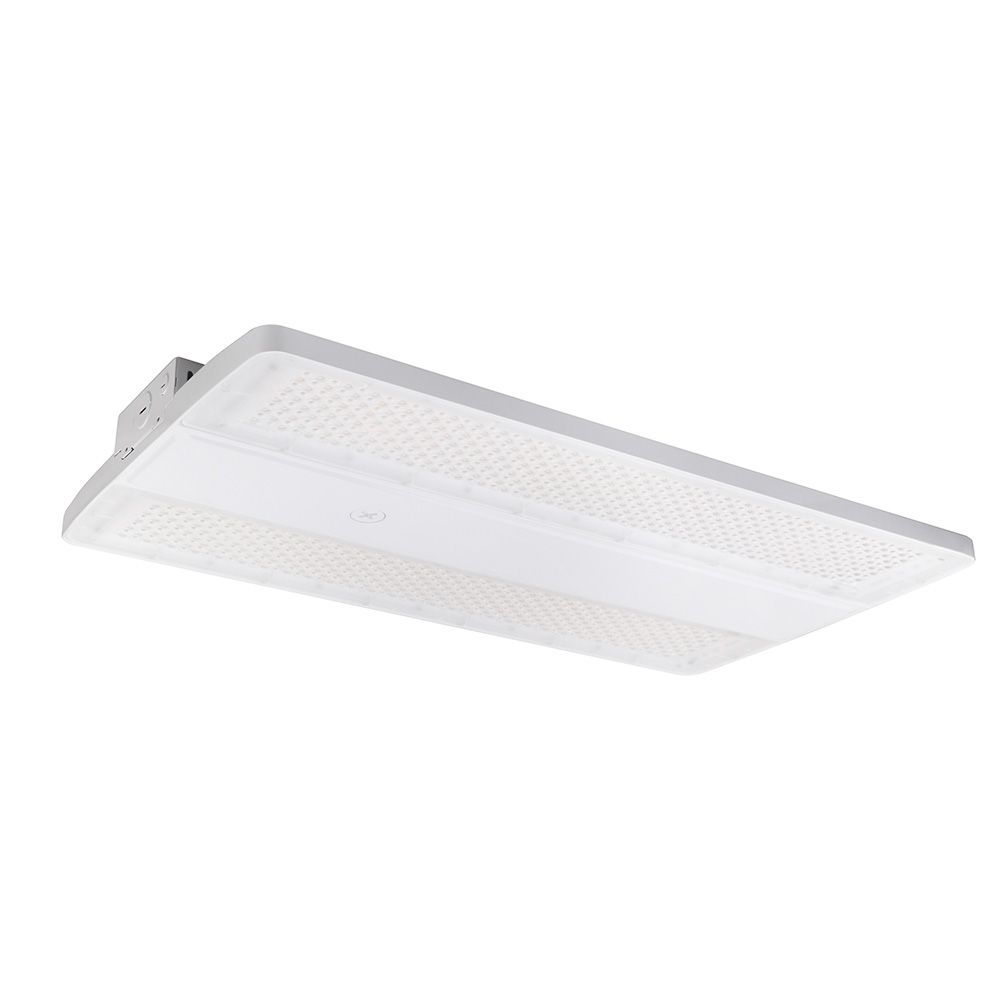

The LHA-LED series delivers versatile, high-efficiency linear highbay luminaires with adjustable wattage, selectable CCT, and electronically adjustable beam pattern, all in a compact design. Durable and contractor-friendly, it’s perfect for industrial and commercial applications, replacing HID and fluorescent systems. With ControlLED capability, it integrates plug-and-play motion and daylight sensors wirelessly and with Bluetooth mesh network, providing advanced lighting control without hubs or gateways.
Features:
- Compact Size:
-
Die cast aluminum housing with smaller footprint makes it easier to stock, handle, and install.
-
- Fully Selectable SKUs:
- All models have universal voltage (120-347V) and are wattage, lumen, CCT (3500K/4000K/5000K), and beam selectable (45°x100° / 65°x95° / 90°x90°).
- Smart Controls:

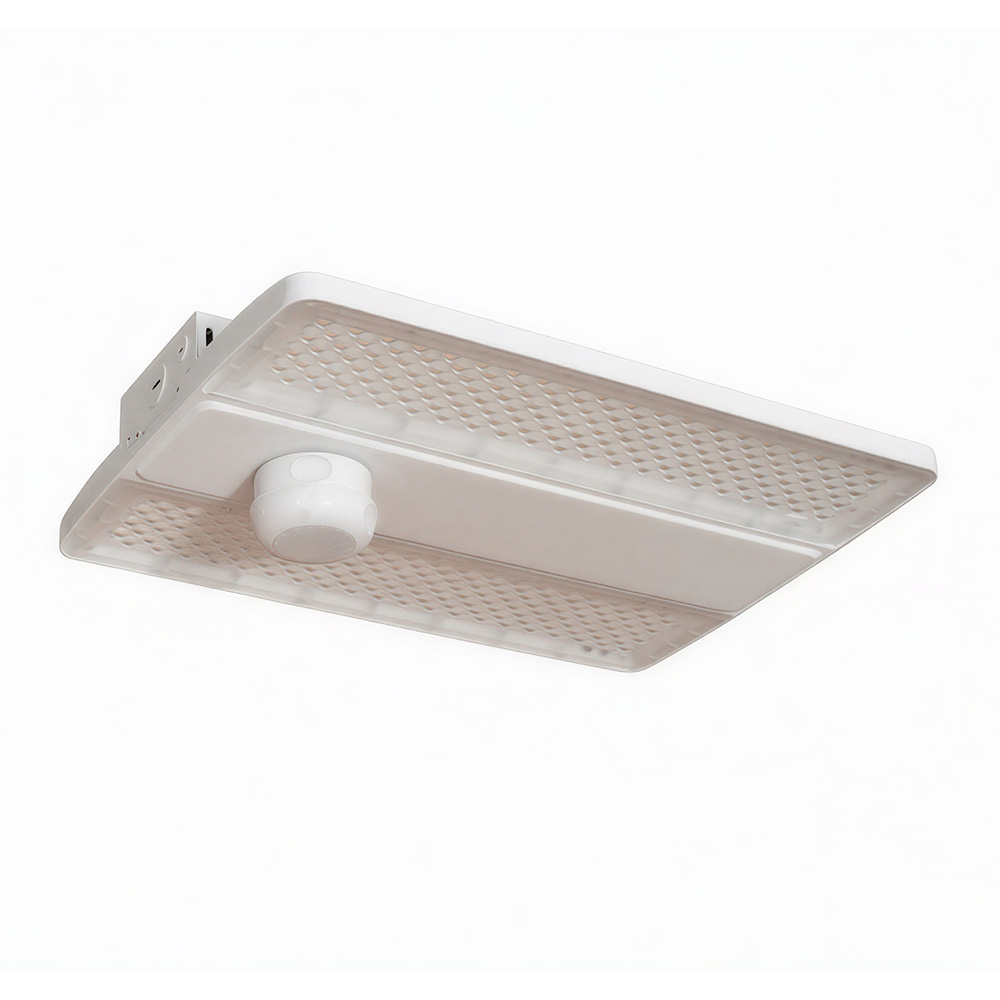

- Compatible with a range of sensors offered as accessories sold separately:

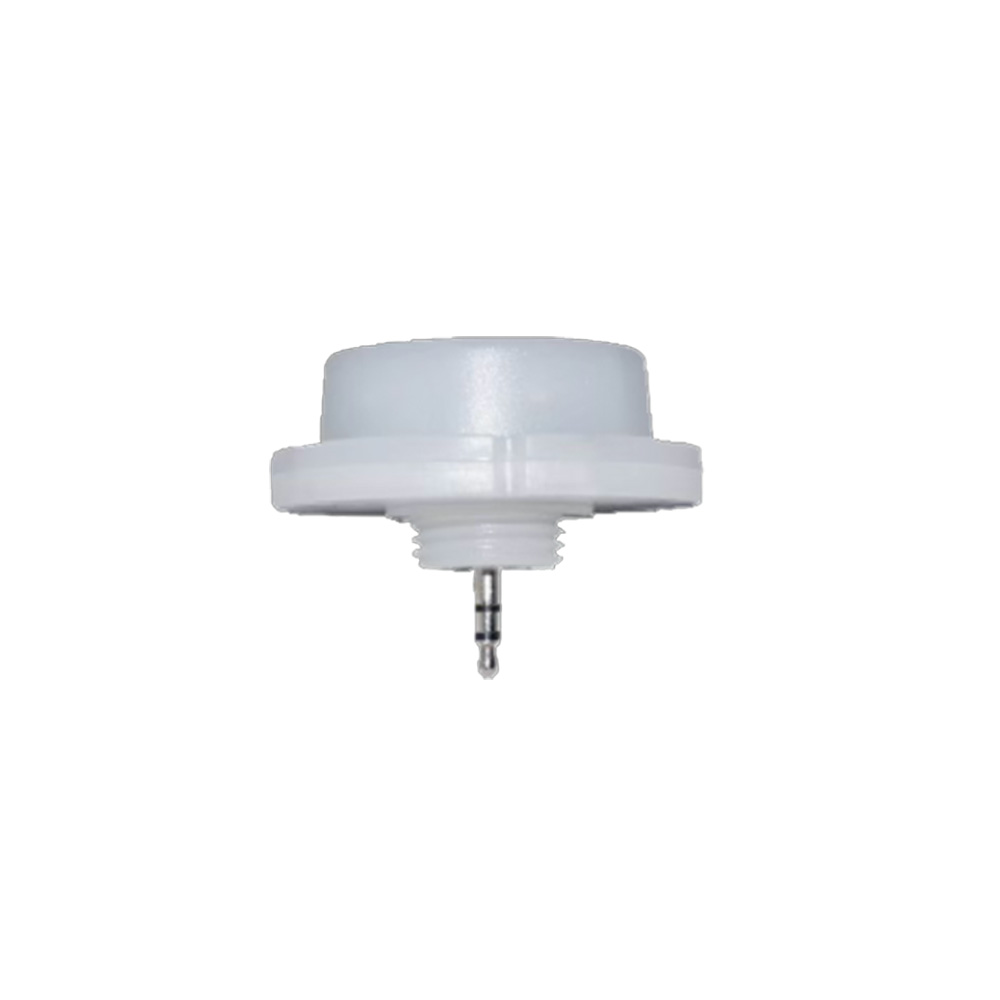

- MW40P-RCA-W1: Field-installed microwave motion sensor/dimmer.

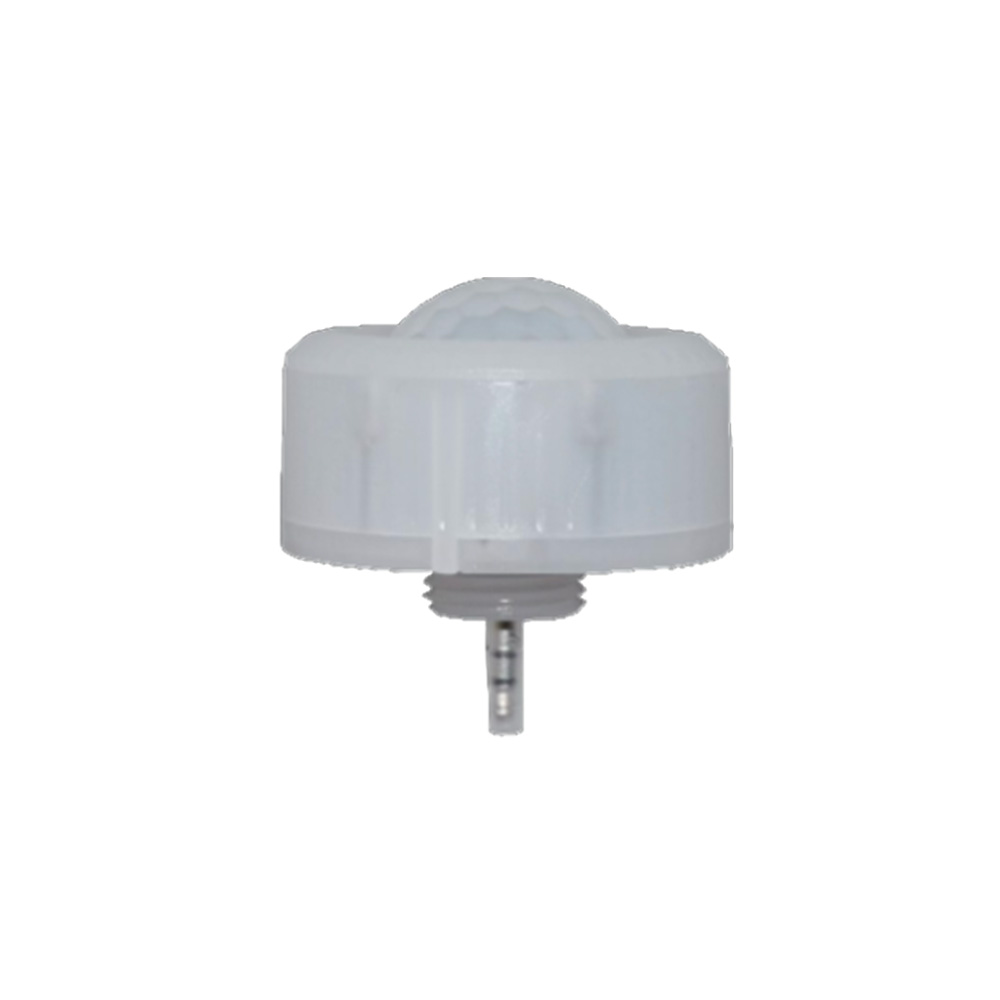

- PIR40P-RCA-W1: Field- installed PIR motion sensor/dimmer.

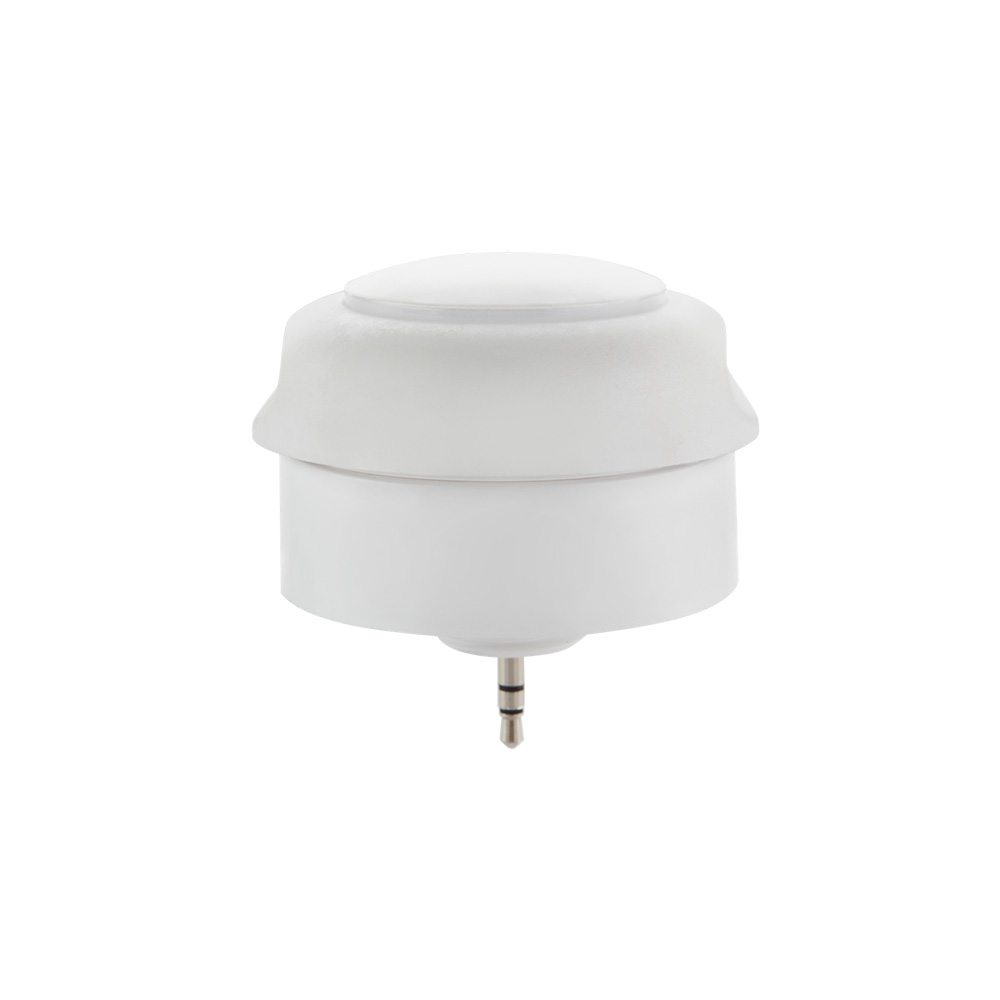

- PIR40P-BTA-W1: Highbay Bluetooth PIR sensor.
- ControlLED Compatible: Integrates plug-and-play motion and daylight sensors wirelessly with Bluetooth mesh network, providing advanced lighting control without hubs or gateways.
- Compatible with a range of sensors offered as accessories sold separately:
- Versatile Mounting Configurations:
- Suspension mount (included in box).
- Suspension with aircraft cables.
- Pendant mount.
- Surface mount.
Specifications
| Light Output | 16100/12700/ 9500lm (Lumen Selectable) |
| Efficacy | 159 lm/W |
| CCT | 3500/4000/5000K (CCT Selectable) |
| Beam Distribution | 45°x100° / 65°x95° / 90°x90° (Beam Selectable) |
| Replaces Up To | 150 MH |
| CRI | >83 |
| Wattage | 105/80/60W |
| Voltage | 120-347V |
| Surge Protection | 6kV (Built-in Driver) as per IEC/EN61000-4-5 |
| Power Factor | >0.99 |
| THD | <4% |
| Cord | Pre-installed 10' Power Cable (3x18 AWG) |
| Battery Backup | 9W (Option Available) |
| Housing | Die-cast Aluminum |
| Paint | Glossy White, Polyester Powder Coat |
| Lens | Low Glare Frosted Polycarbonate |
| Weight (Fixture & Cable) | 5.29 lb |
| Weight (2x2' T-Grid Mounting Plate) | 6.35 lb |
| Weight (2x4' T-Grid Mounting Plate) | 14.45 lb |
| Ambient Operating Temperature | -40°C to 50°C (-40°F to 122°F) |
| Mounting | Suspension Mount - V-Hooks & Chain (Included), Aircraft Cable, Surface Mount, Pendant Mount, T-Grid Drop Ceiling Mount |
| Certifications | cULus Listed for Canada and USA, per UL 1598, CSA C22.2 No. 250.0, DLC 6.0 Premium |
| Dimming | 0-10V Dimming (Dim to Off) |
| Controls Sensor | PIR/Microwave Motion Sensor/Dimmer with Remote Control, Bluetooth PIR Motion & Daylight Harvest Sensor |
| Controls Switch | All ControlLED Switches Compatible |
