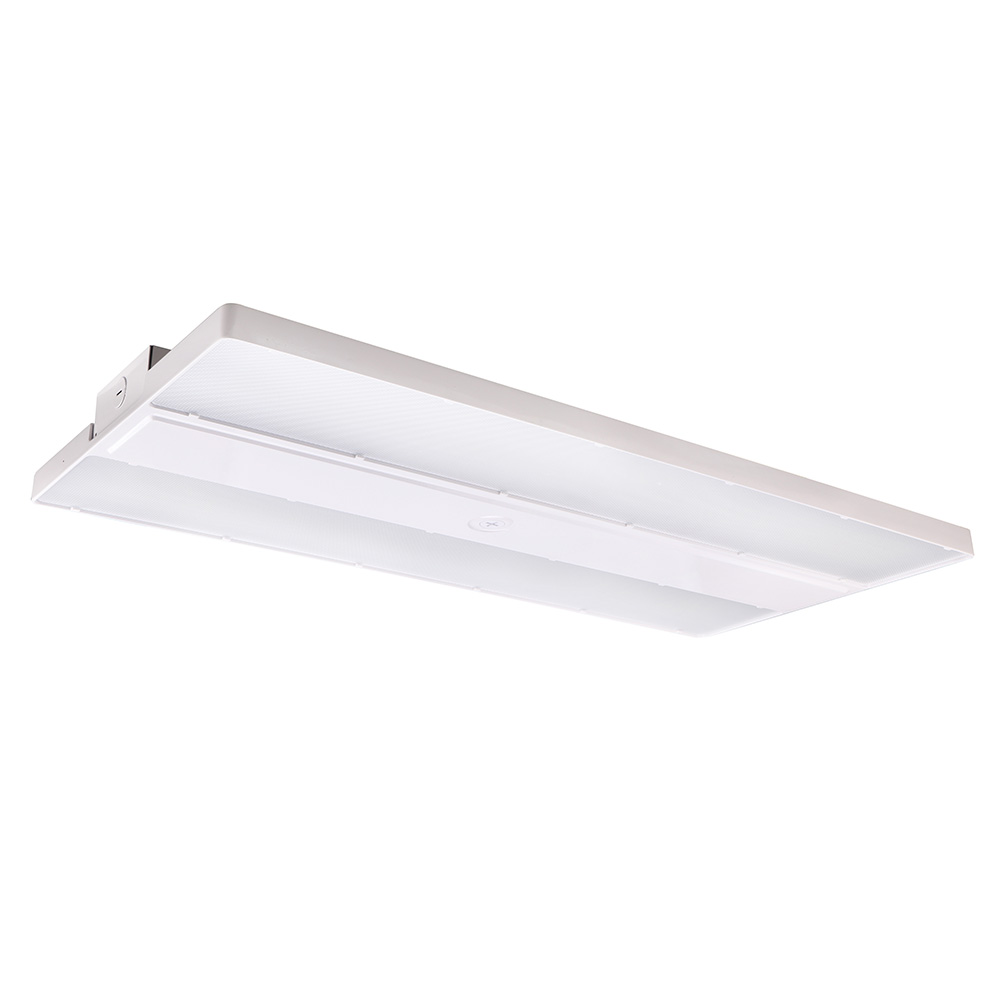

LHS-LED

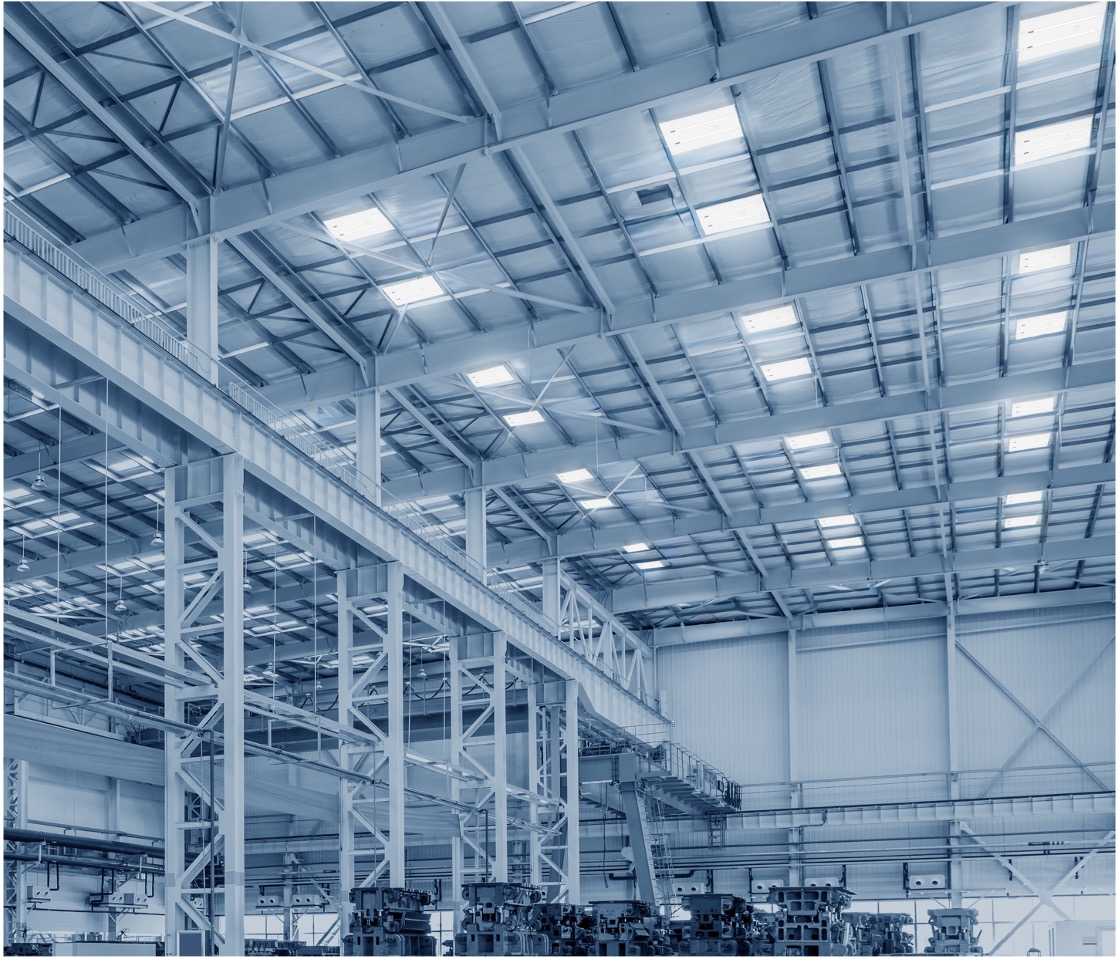

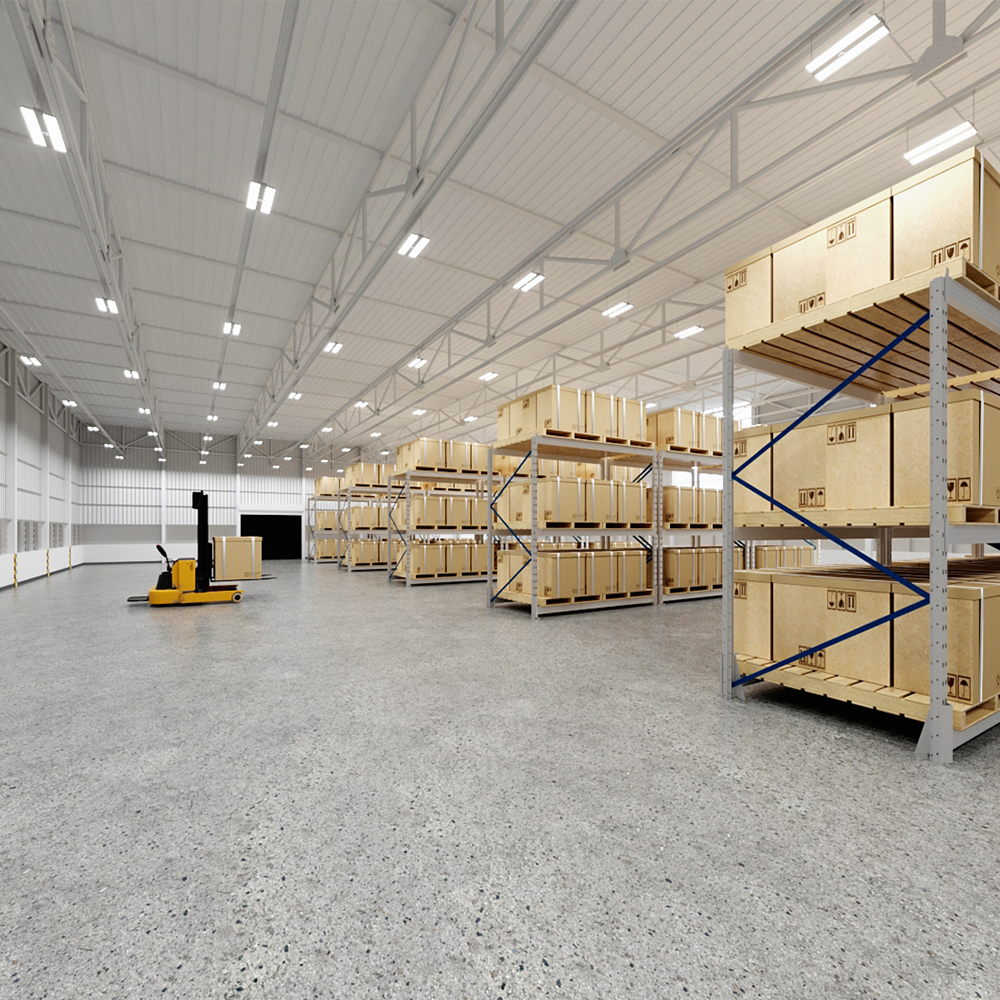

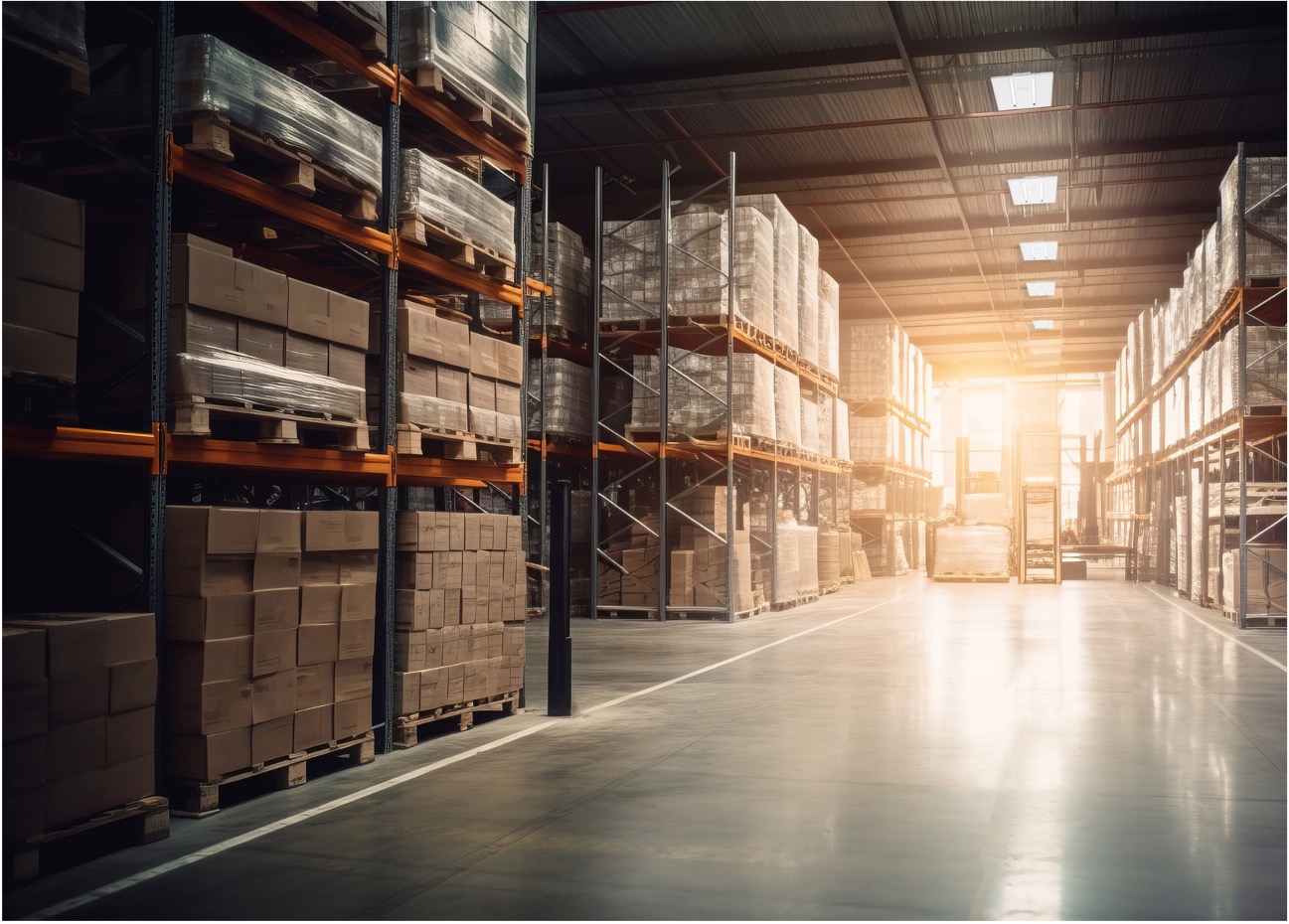

The LHS-LED Series of linear highbay luminaires is highly versatile with industry leading selectable features and a high lumen package while keeping a compact design and contractor-friendly installation. Its durability and high efficiency make it ideal for illuminating a wide range of industrial and commercial facilities and is an optimal one-to-one replacement for conventional lighting systems such as HID and fluorescent.
FEATURES:
Field changeable optics
- Tool-less swap in less than 1 minute
- Beam distribution- 90°x90 – Wide Beam (installed), 45°x90° – Narrow Beam (included in the box)
Performance:
- Enhanced heat dissipation allowing operation at higher ambient temperature
- CCT selectable- 3500/4000/5000K
- Wattage and lumen Selectable
Electrical:
- High efficiency driver covers a wide voltage range of 120-347V
- Pre-installed 10′ Power Cable
- 9W Battery backup option available
- 6kV surge protection (built-in driver)
Mounting options:
- Suspension mount with V hooks and suspension chain – included in the box
- 10 ft aircraft cable, surface mount, pendant mount
Construction:
- Die cast aluminum housing with a glare-free polycarbonate lens
- Compact contractor-friendly design
- Ideal for stocking
Controls:
- 0-10v Dimming (dim to off)
- PIR sensor: 20′ & 40′ mounting height
- Microwave sensor: 50’ mounting height
Specifications
| Light Output | 15900/12400/9300 lm (Lumen Selectable) |
| Efficacy | 155 lm/W |
| CCT | 3500/4000/5000K (CCT Selectable) |
| Beam Distribution | Wide (90°x90°), Narrow (45°x90°) - Field Changeable |
| Replaces Up to | 250 MH |
| LED Lifetime (L80) | >100,000 Hrs |
| CRI | 84 |
| Wattage | 105/80/60W |
| Voltage | 120-347V |
| Surge Protection | 6kV (Built-in Driver) as per IEC/EN61000-4-5 |
| Power Factor | >0.99 |
| THD | <4% |
| Cord | Pre-installed 10' Power Cable (3x18 AWG) |
| Battery Backup | 9W (Option Available) |
| Housing | Die-cast Aluminum |
| Lens | Glare-free Polycarbonate |
| Weight | 4.40 lbs, 10' Power Cable - Additional 1 lb |
| Ambient Rating Temperature | Fixture: -40℃ to 55℃ Motion Sensor: -30℃ to 55℃ Battery Backup: 0℃ to 55℃ |
| Mounting | Suspension Mount - V-Hooks & Chain (Included), Aircraft Cable, Surface Mount & Pendant Mount |
| Certifications | cULus Listed for Canada and USA, per UL 1598, CSA C22.2 No. 250.0, DLC Premium |
| Controls | 0-10V Dimming (Dim to Off), PIR/ Microwave Motion Sensor/Dimmer (Dual Functionality) |
| Accessories | AIRCRAFT CABLE - 10' Length, SURFACE MOUNT KIT, PENDANT MOUNT KIT, WIRE GUARD, MICROWAVE SENSOR, PIR SENSOR, MOTION SENSOR REMOTE CONTROL |
