NS2H-LED & NS2HP-LED Series
The NS2H-LED and NS2HP-LED Series are twin head, security floods that are durable, simple-to-install, and features versatile controls to adjust brightness, colour temperature, motion sensor sensitivity, standby time, accent/night light, and photocontrol settings. The sensor can detect motion 180° wide and 45’ in length to offer maximum coverage in large driveways, backyards, residential, and commercial buildings.
Features:
NS2H-LED Series:
- The NS2H-LED Series is available in two models (with sensor or without sensor) and in two finishes (matte black or white).
- Robust die-cast aluminum housing and UV-rated clear polycarbonate lens.
- Integrated visor shields to reduce glare and light trespass.
- Fully adjustable heads to direct light where needed.
- Easy to use controls: adjust brightness, colour temperature and photocontrol settings of the fixture.
- Integrated photocell for dusk-to-dawn operation.
- Fixture can be hung on the mounting bracket using aircraft cable, allowing the installer to complete wiring easily, quickly and safely.

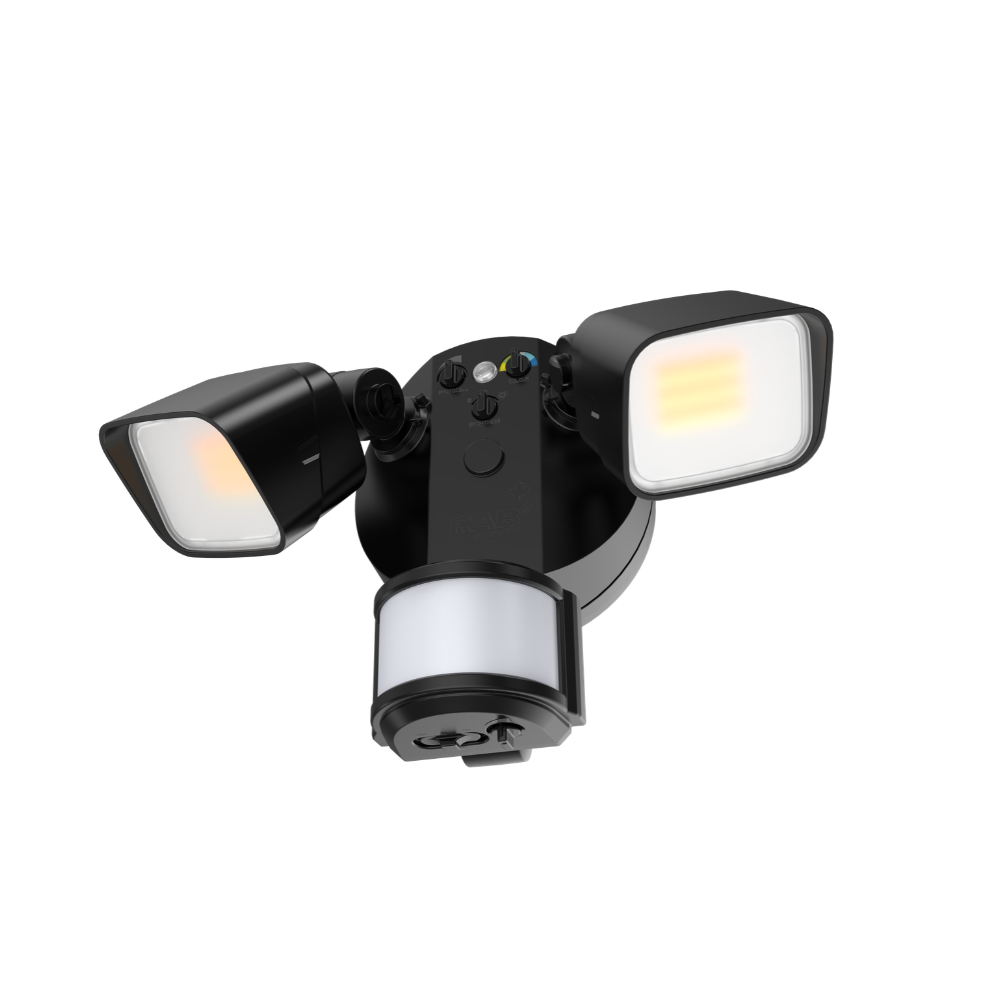

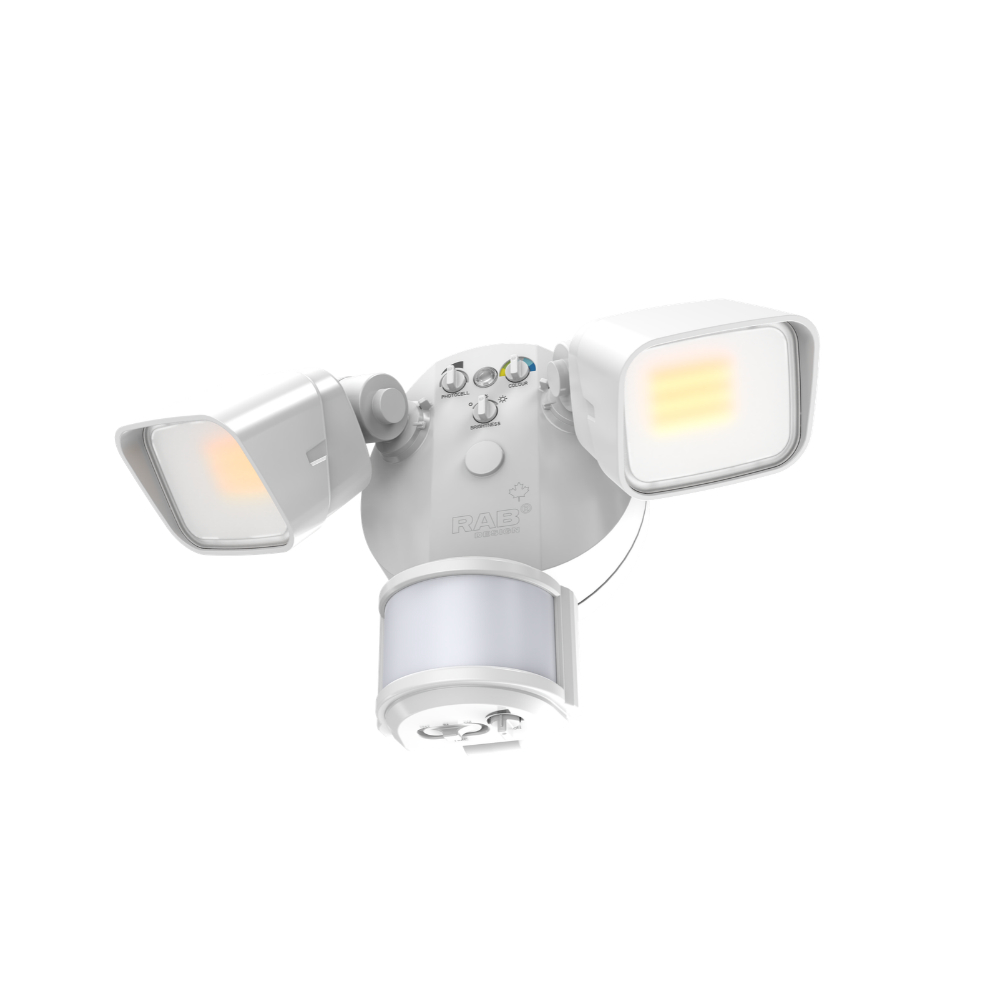

NS2HP-LED Series:
- Value-engineered polycarbonate housing: Delivers reliable performance without unnecessary cost.
- Wide motion detection: 180° detection with up to 45′ range helps capture movement across a broader area.
- Fully selectable settings: Adjust CCT, brightness, photocell sensitivity, and night lighting to suit different applications from one fixture.
- Aircraft cable included: Provides added support and convenience during installation.
- Tool-less adjustable heads: Easily aim and adjust the fixture without tools for precise light placement.
- Motion Sensor Included: Every fixture comes with a plug-and-play motion sensor that can be field-installed and adjusted with 360° rotation and 90° vertical tilt.
Specifications
| Watts | 25W Max, 17W Min |
| Lumens | 3300 Max, 2200 Min |
| Efficacy | 130 lm/W |
| Voltage | 120V |
| Colour Temp | Selectable (3000K/4000K/5000K) |
| CRI | 80 |
| Total Harmonic Distortion | < 15% |
| Power Factor | > 0.99 |
| Surge Protection | 2kV |
| Beam Angle | 100° |
| LED Life (L70) | 50,000 hours |
| Finish | Matte Black, White |
| Housing Details | Die cast aluminum |
| Lens Details | Clear polycarbonate lens, ultraviolet light resistant, suitable for outdoor use |
| Mounting | Wall mount or eave mount |
| Operating Temp. | -40°C to +50°C (-40°F to 122°F) |
| Certifications | cULus certified as per UL1598 & CSA C22.2 NO. 250.0:21, Wet Location, IP65, 5 Year Warranty |
