RDL4G-LED

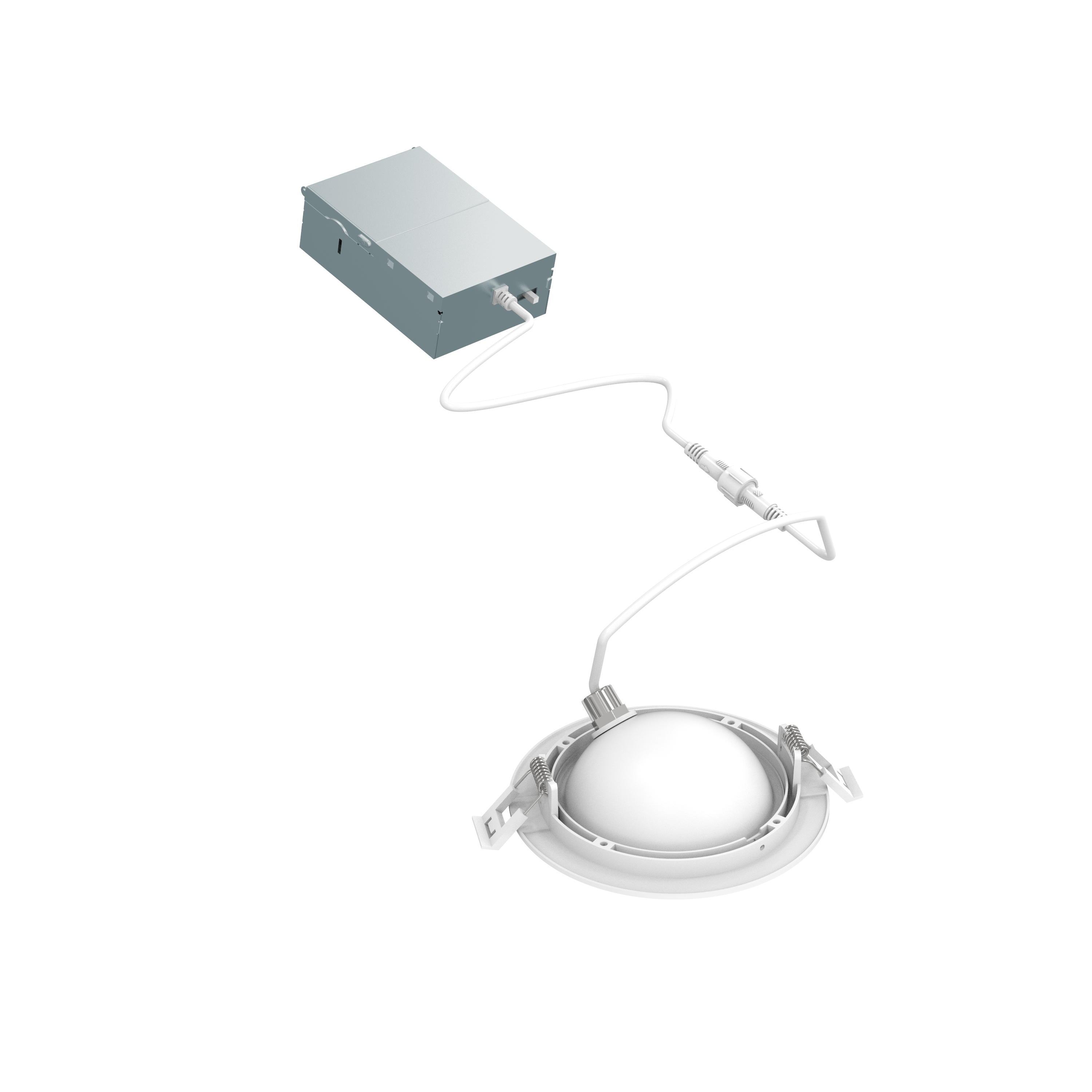

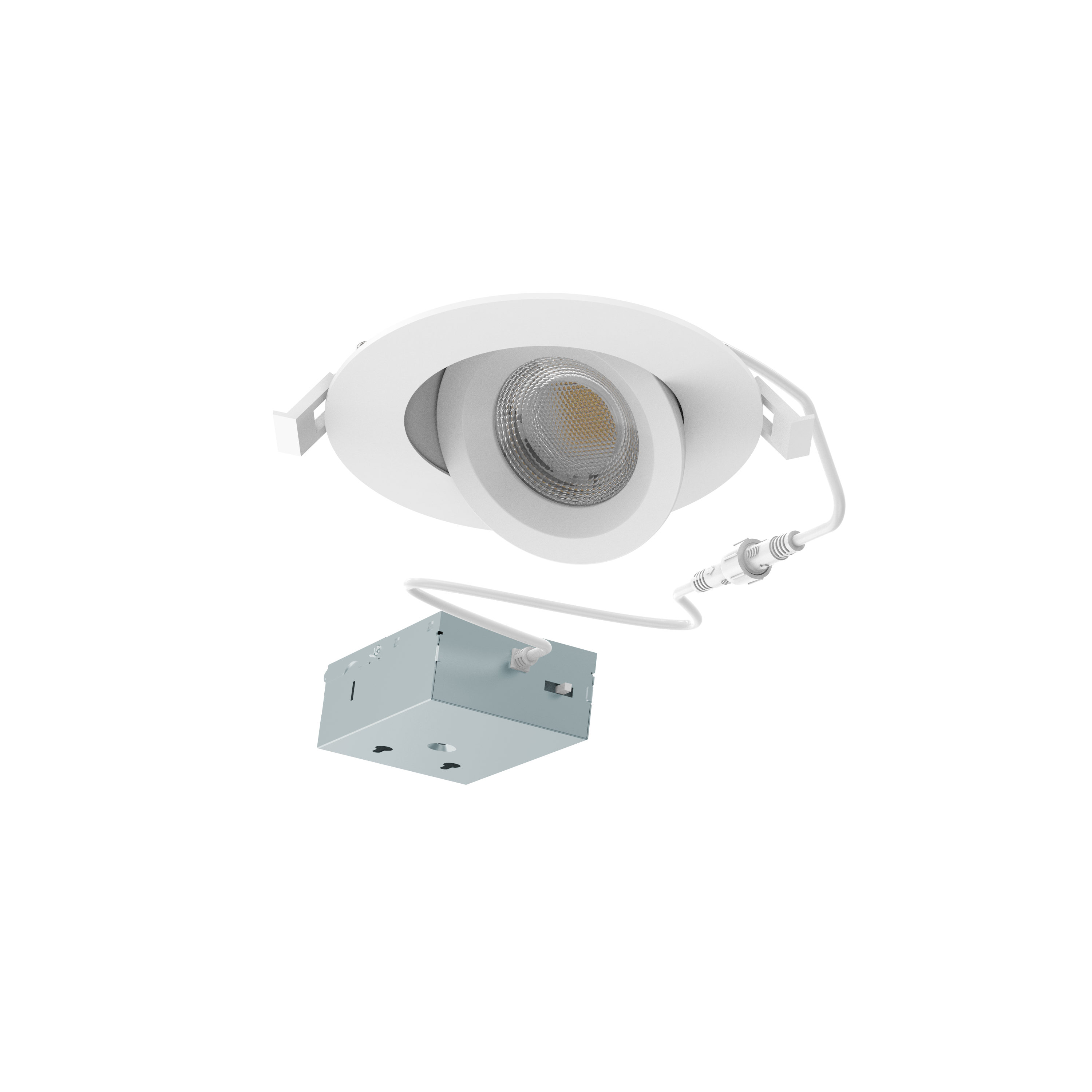

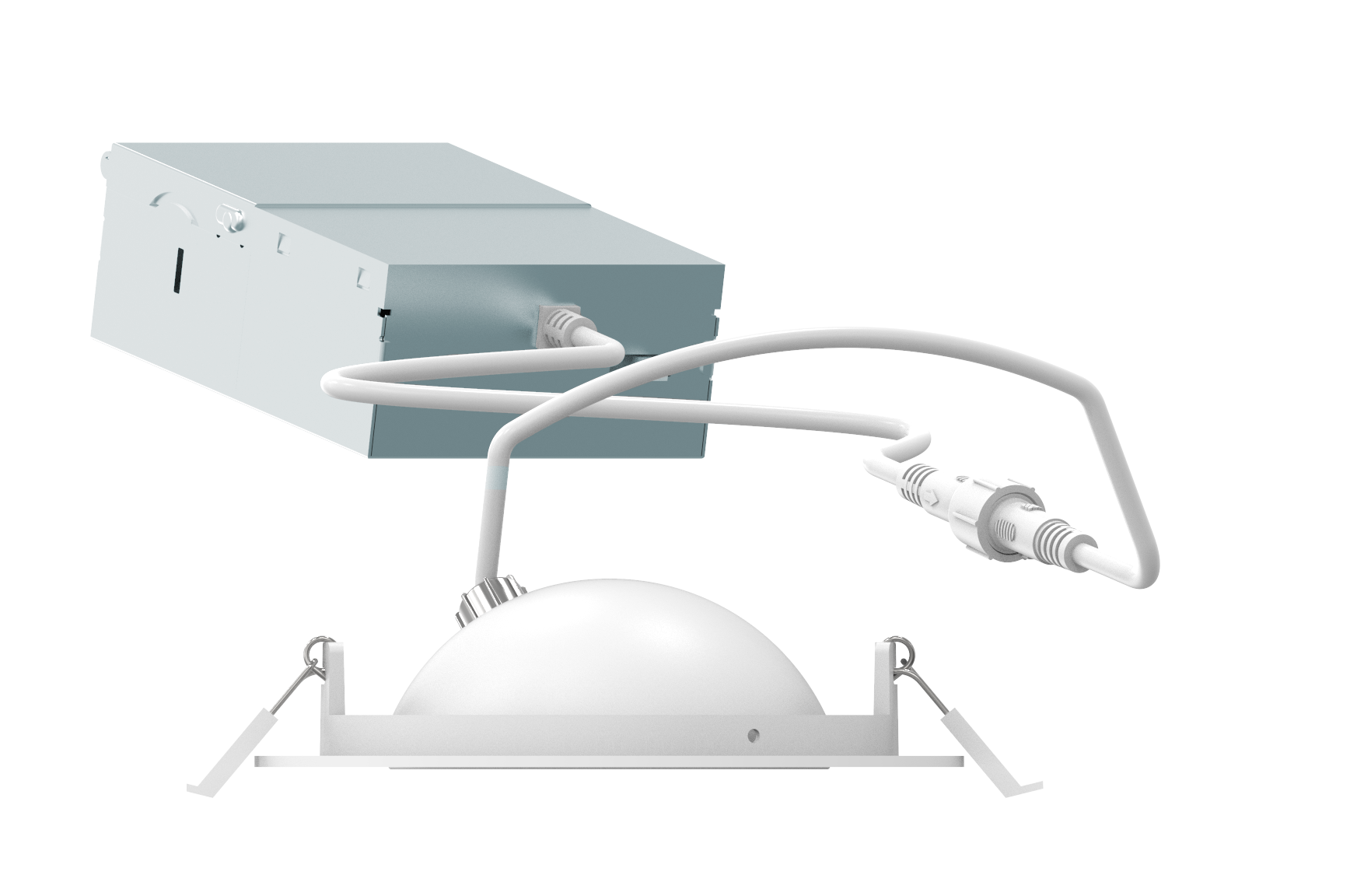

The RDL4G gimbal downlight is designed for versatility, featuring a 360° swivel and up to 90° tilt to effectively highlight specific areas. It includes a 5 CCT select switch, allowing users to customize the colour temperature to suit different environments. With a simple installation process and a 5-year warranty, this fixture is perfect for both new construction and remodelling projects in commercial and residential settings, ensuring flexibility and high performance.
Features
- Easy and quick installation with robust torsion spring clips
- IC rated for direct contact with insulation
- 90º Tilt with 360º Rotation LED Module
- Light-weight Die-cast Aluminum Trim
- 15″ power Cord, AWM 300V 24AWG
- CCT Selectable switch to choose between 5 different CCT options
- Acrylic lens with 40º beam angle
- 80+ CRI

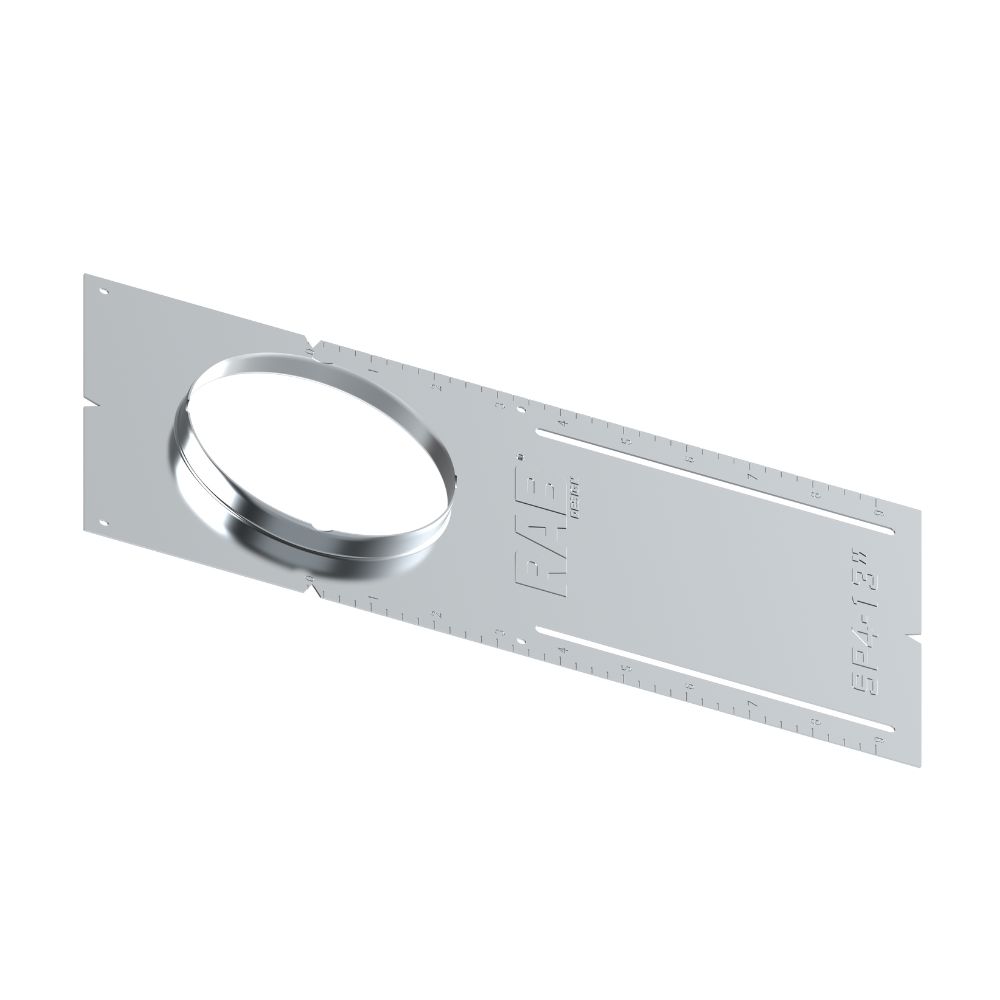

- *Smashplate information on spec sheet
Specifications
| Light Output | 850lm |
| Efficacy | 70 lm/W |
| CCT | CCT Selectable - 2700K/3000K/3500K/4000K/5000K |
| Beam Distribution | 40° Beam Angle |
| LED Lifetime (L70) | >100,000 Hrs |
| CRI | 80 |
| Wattage | 12W |
| Voltage | 120V |
| Surge Protection | 2.5kV |
| Power Factor | >0.9 |
| THD | <15% |
| Cord | 15" Power Cord, AWM 300V 24AWG (Between fixture and junction box) |
| Conduit Entries | 3x 1/2" Conduit Entries |
| Housing | Die-Cast Aluminum |
| Lens | Acrylic |
| Adjustable Head | 360° Rotation & 0-90° Tilt |
| Fixture Weight | 0.4 lbs |
| Junction Box Weight | 0.4 lbs |
| Ambient Operating Temperature | -30°C to 50°C (-22°F to 122°F) |
| Mounting | Recessed Mount |
| Certifications | ETL Listed for Canada & USA, per UL 1598 & CSA C22.2#250.0 Ed.5, IC (Insulation Contact) Rated |
| Controls | TRIAC Dimming (10-100%, Dim to Off) |
