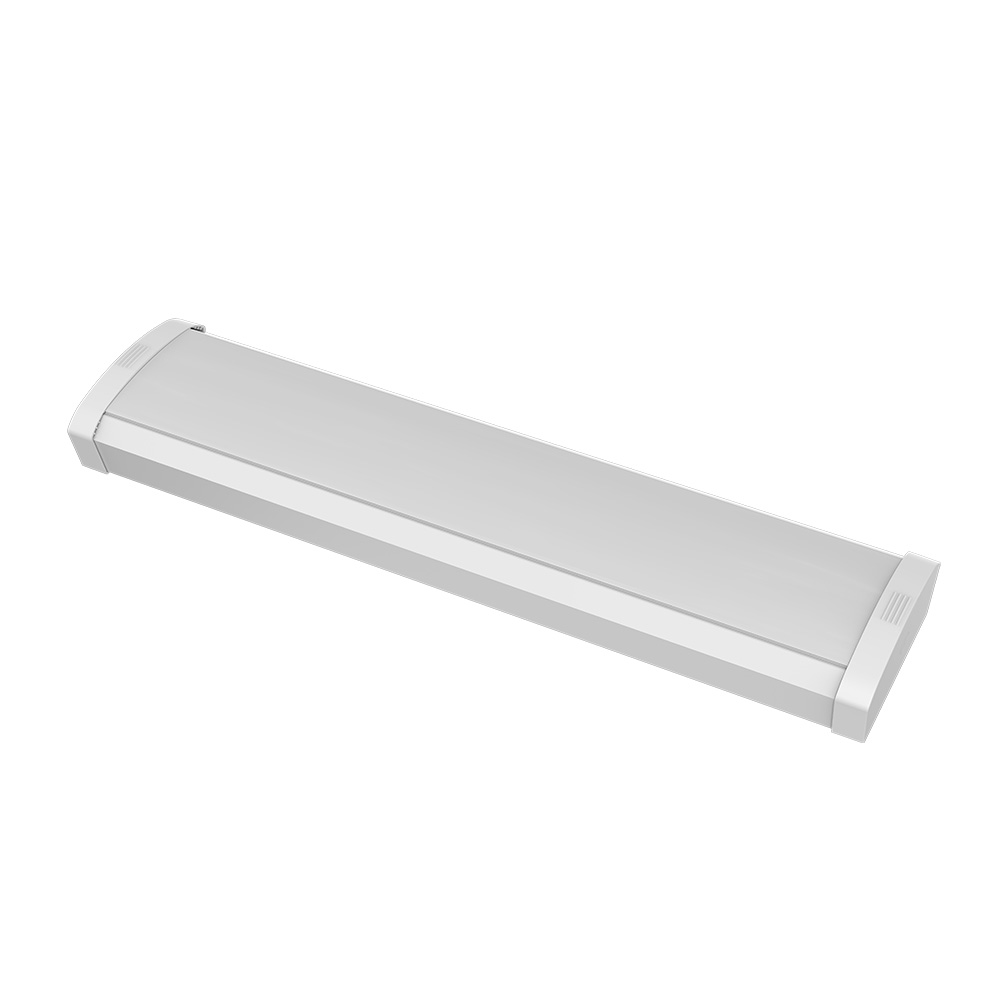

SMWN-LED Performance Series

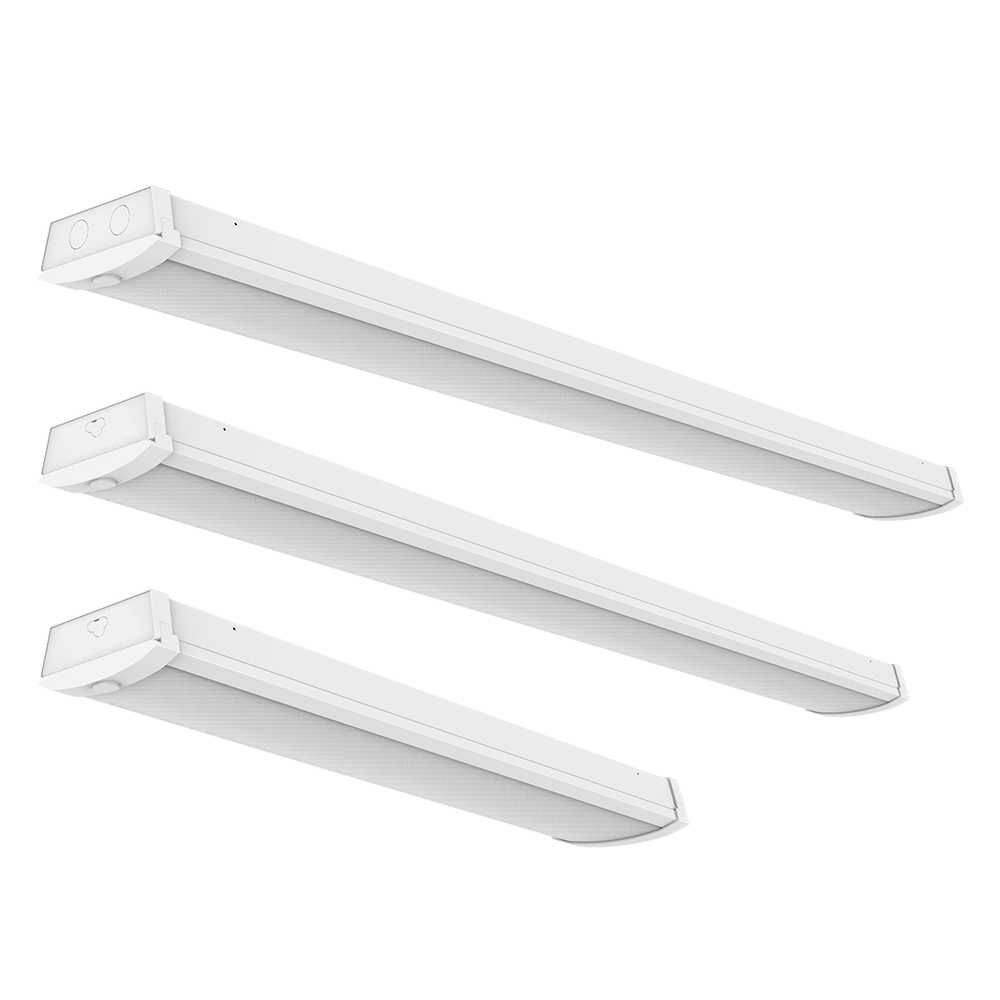

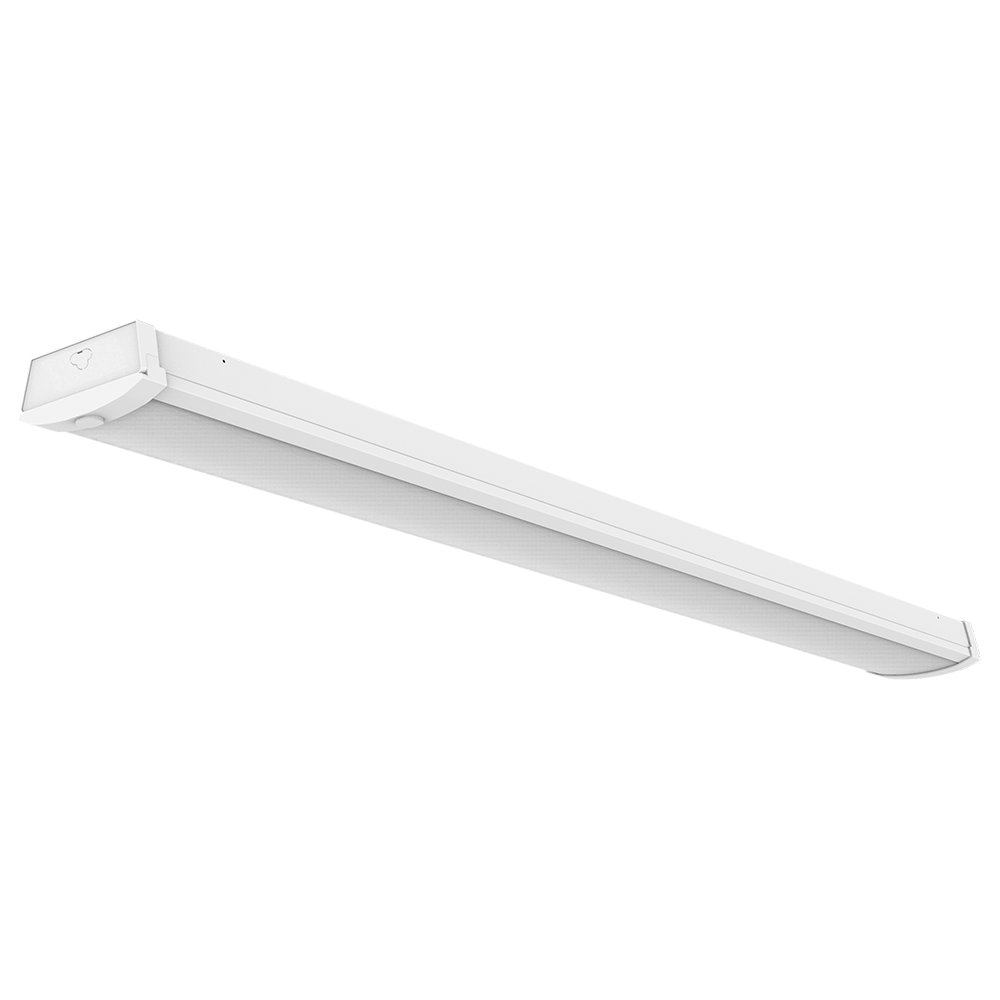

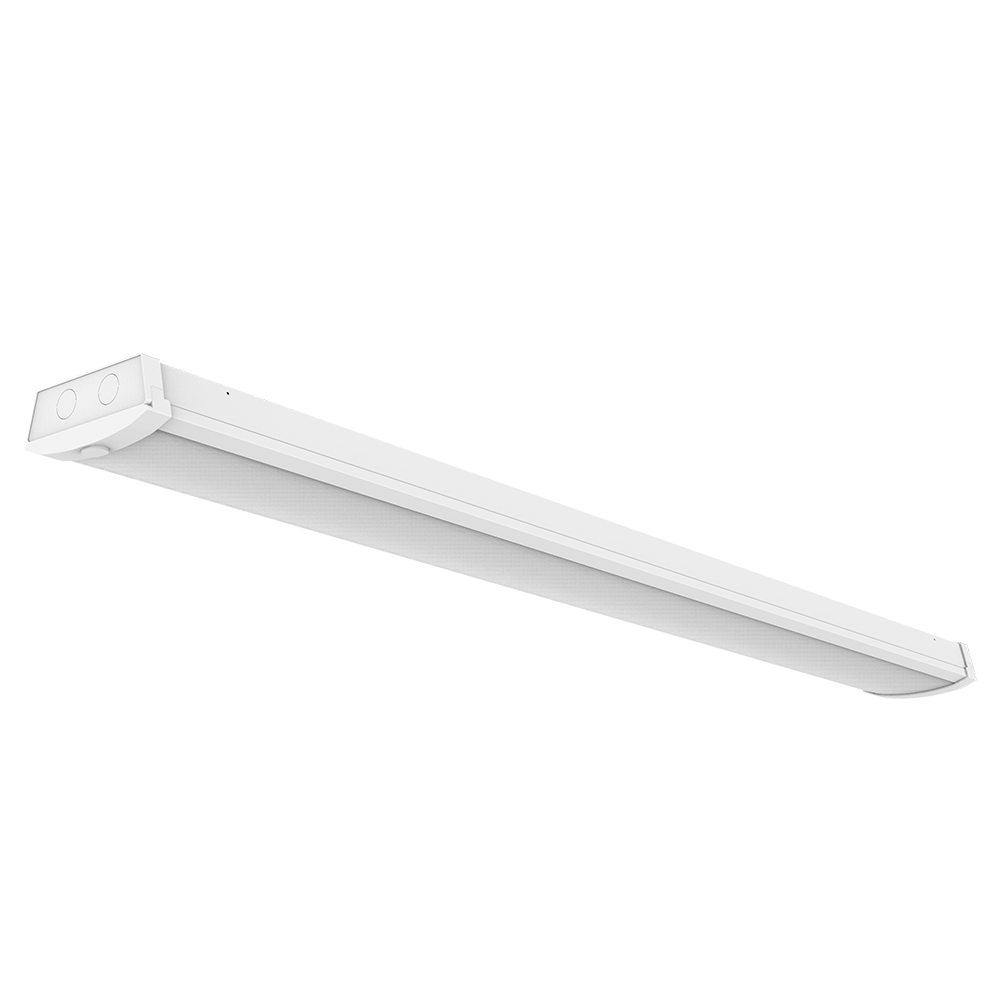

The SMWN-LED Performance is a surface-mounted LED wraparound fixture designed for reliable shadow-free illumination and fast, contractor friendly installation. Its innovative hinged dual-compartment design provides easy access for wiring, simplifying wire management and significantly reducing installation time. The fixture is sensor-ready with an integrated receptacle for field-installed standalone or smart networked Bluetooth controls. Select 2ft and 4ft models offer a 3-pin linkable option for quick row mounting, while a lumen-selectable model provides added flexibility.
Features:
- Simple to Install:

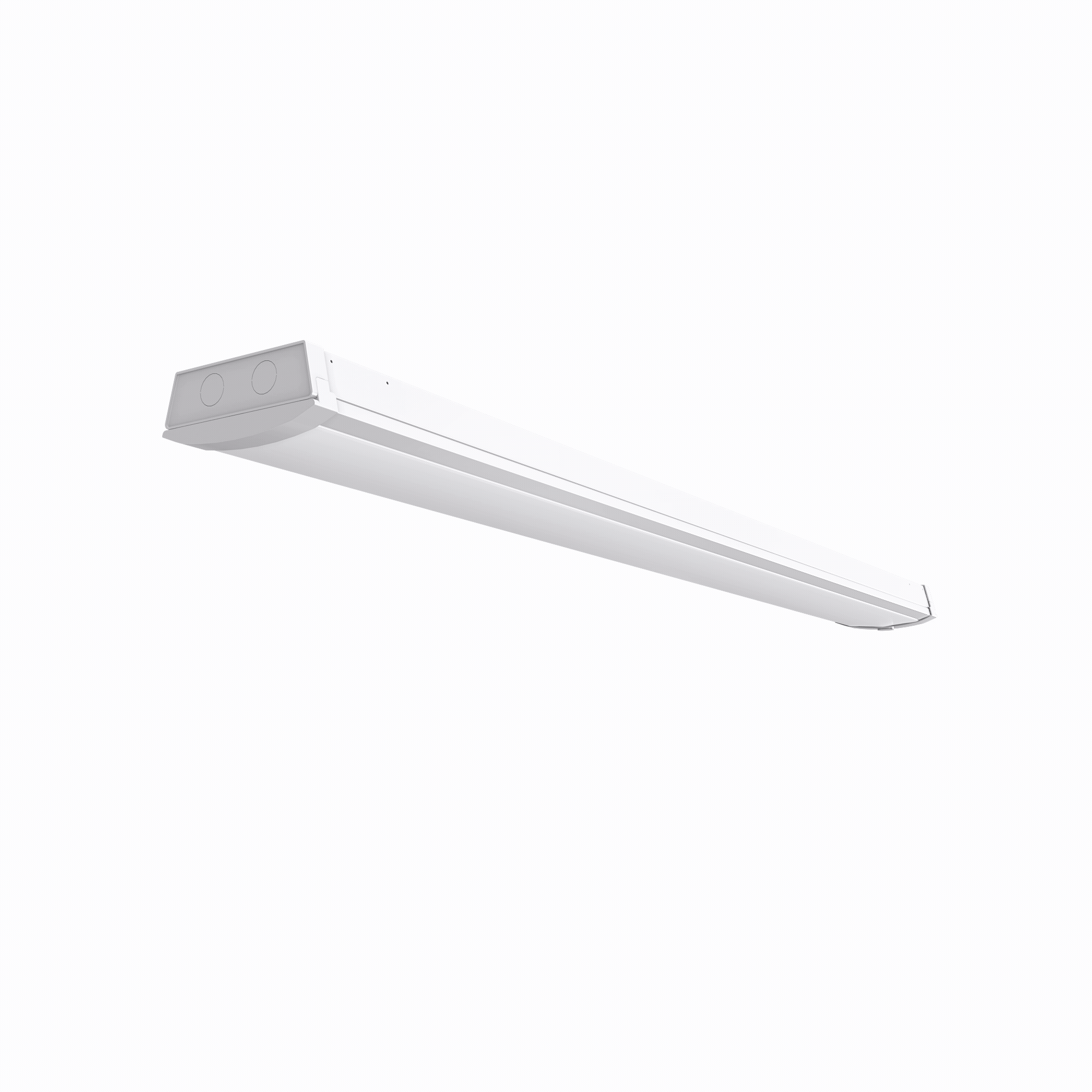

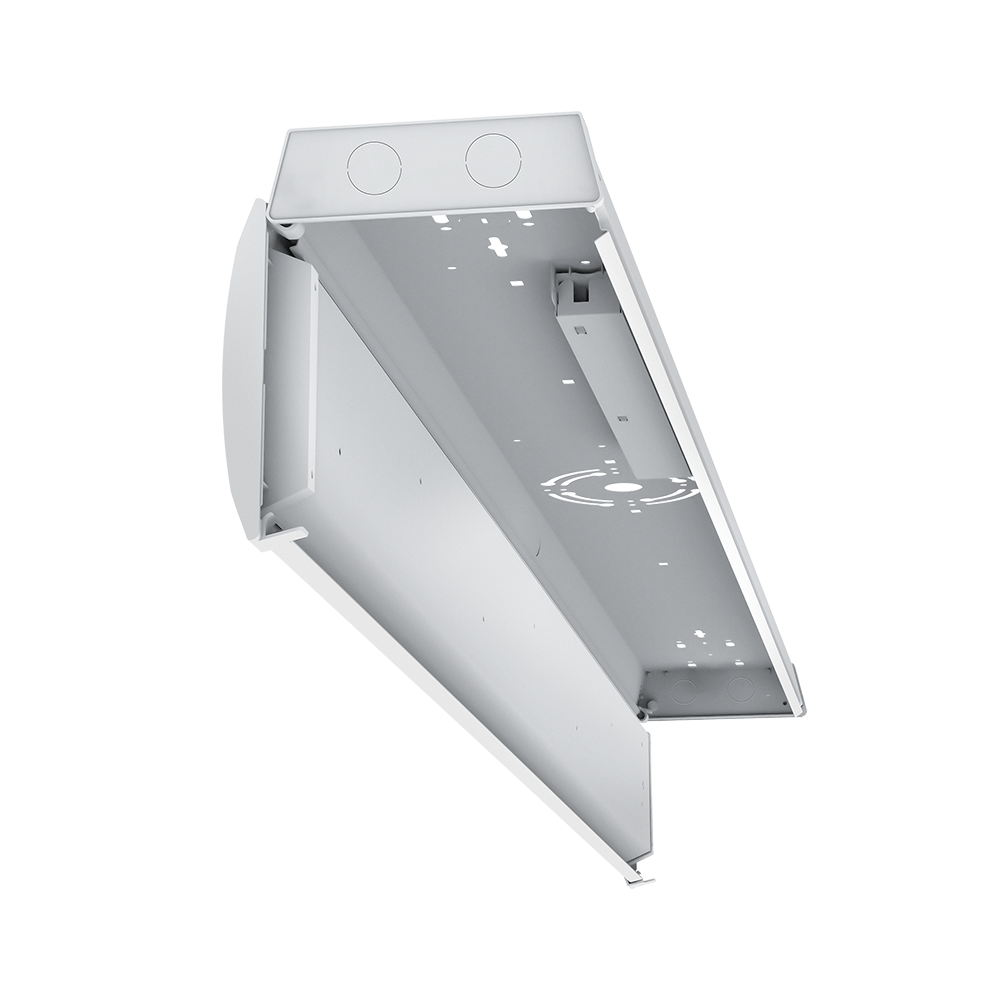

- New hinged opening for fast, simple access to wiring.
- No need to remove the lens during install or maintenance.
- Expansive space for wiring and other accessories.
- Better Performance:
- The latest RAB Wrap is DLC 6.0 Premium listed.
- Higher efficacy with lower wattage – dropped from 46W to 35W.
- All models are CCT selectable.
- Every model comes sensor-ready for Bluetooth® and stand-alone controls.
- IP20-rated fixture with IP40 LED compartment to reduce bug entry and lens shadows.
- Better Savings:
- Energy savings through improved efficacy and a lower wattage.
- Lower operating costs through improved efficiencies for install and maintenance.
- DLC 6.0 Premium listed under the Linear Ambient and Lowbay Categories (rebates vary by province).
Specifications

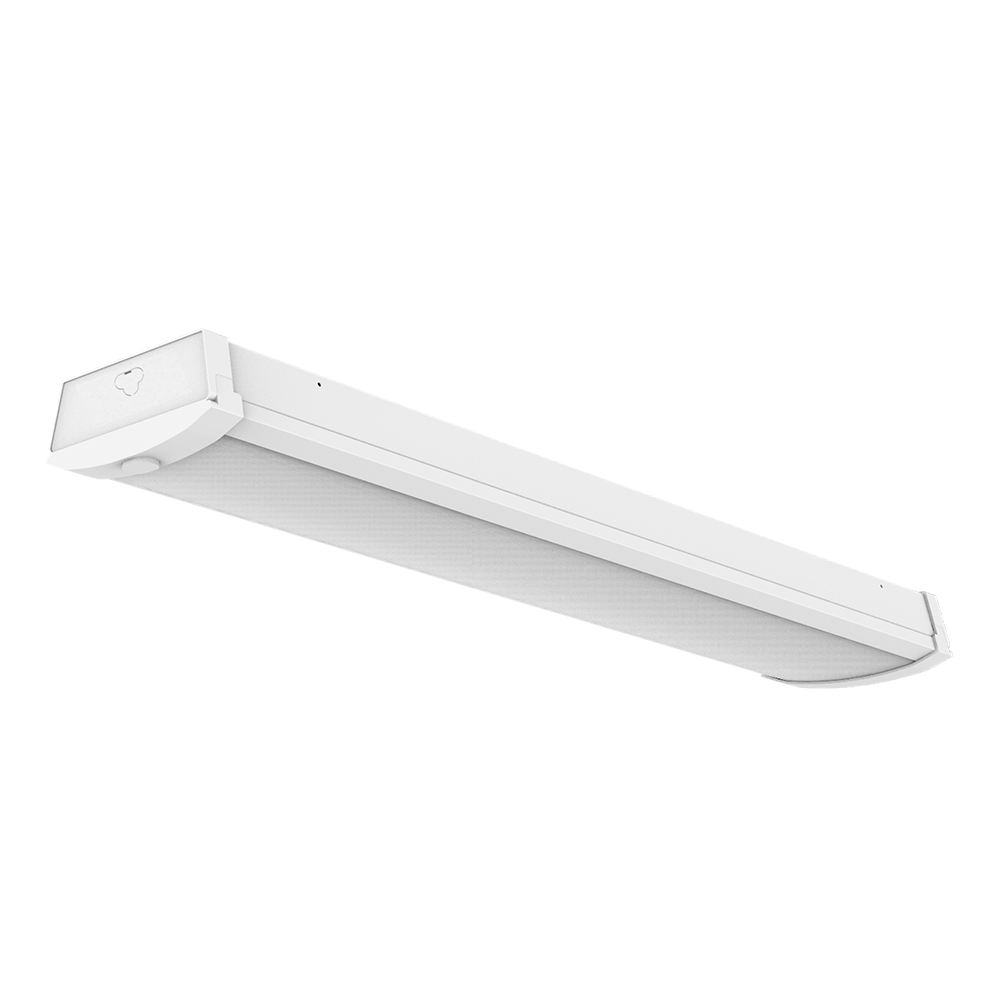

| Length | 2ft |
| Light Output | 3400 lm |
| Efficacy | 147 lm/W |
| CCT | 3500/4000/5000K (CCT Selectable) |
| Beam Angle | 110° |
| Replaces Up to | 2ft T8 lamp |
| CRI | 86 |
| Wattage | 25 W |
| Voltage | 120-277V |
| Surge Protection | 2 kV (Built-in Driver) |
| Power Factor | 0.99 |
| THD | 11.6% |
| Wire Leads | 6" from centre conduit knockout |
| Daisy Chain | Max. 16 Fixtures |
| Housing | Steel Sheet Metal |
| Paint | White Powder Coat Finish |
| Lens | Frosted Polycarbonate |
| Weight | 3.5 lbs |
| Ambient Operating Temperature | -20°C to 40°C (-4°F to 104°F) |
| Mounting | Surface Mount (Accessories Included), Suspension Mount (Sold Separately) |
| Certifications | ETL Listed for Canada & USA per UL 1598 & CSA C22.2#250.0 Ed.5 DLC 6.0 Premium |
| Dimming | 0-10V (0-100% Dimming, Dim to Off) |
| Sensor | Sensor Ready for Standalone & Bluetooth Networked Controls - PIR Motion & Daylight Harvest Sensor |
