CYLUX-LED
The CYLUX-LED cylinder light family provides versatile lighting solutions with a range of sizes and mounting options, including wall, ceiling, and suspended mounts. It offers easy field selection for uplight and downlight configurations, along with adjustable colour temperatures. Each fixture includes various beam options, making it perfect for architectural applications. Designed for both indoor and outdoor use, CYLUX is suitable
for dry, damp, and wet environments.
Features:
- Fully Selectable SKUs:
- Wattage, CCT, and UP/DOWN light selection switches built into the fixture for easy field adjustment.
- Adjustable Beam Distribution:
- Includes 30° and 75° optics, with optional 45° optics available for customized light output.
- Standard Photocell:
- Easily switched ON/OFF as needed for added flexibility (wall mount only).
- Four Sizes:
- Offered in 3″, 4″, 6″, and 8″ options to fit a variety of applications.
- Mounting:

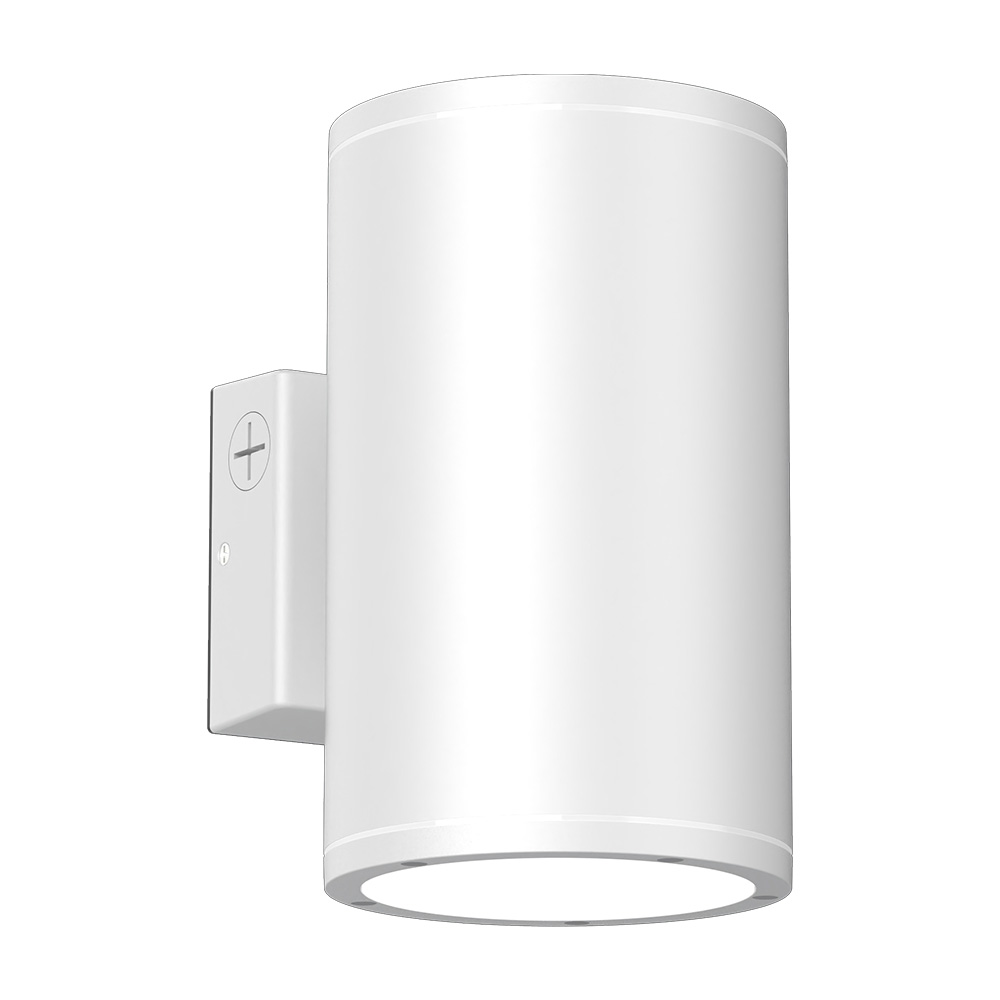

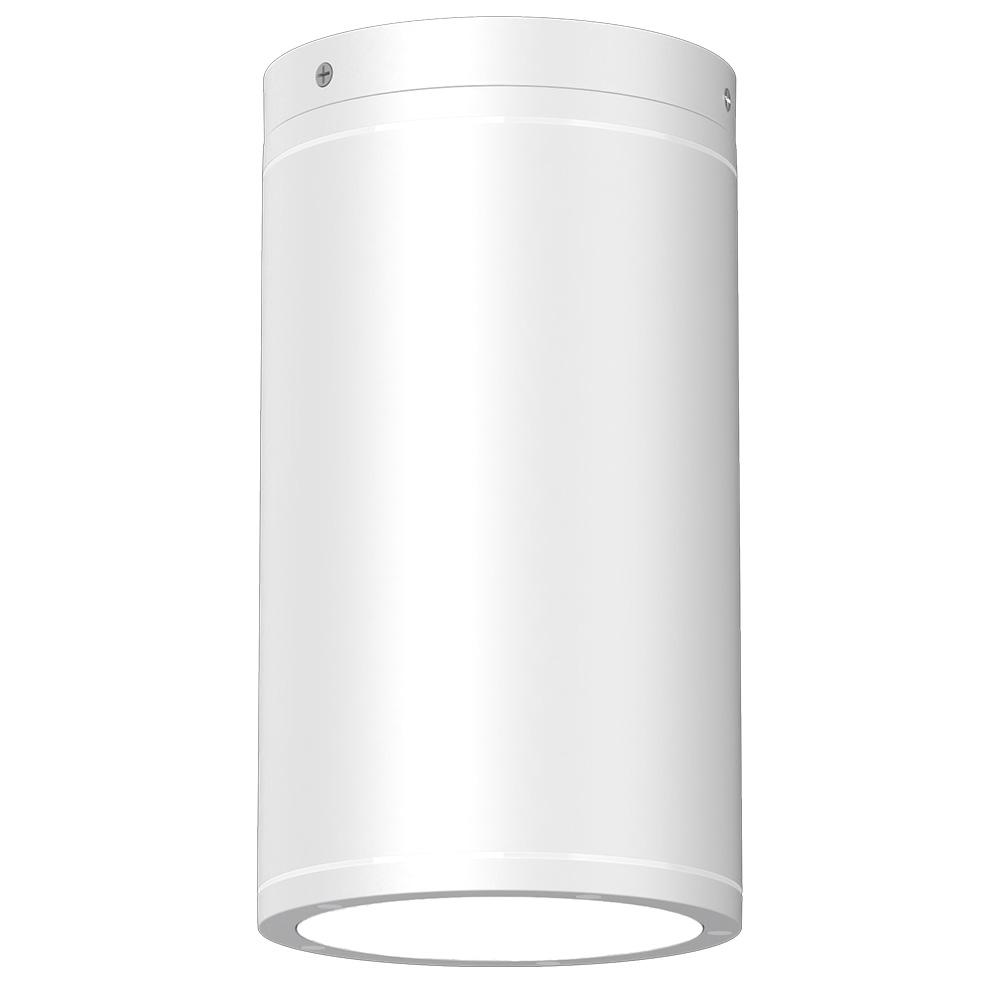

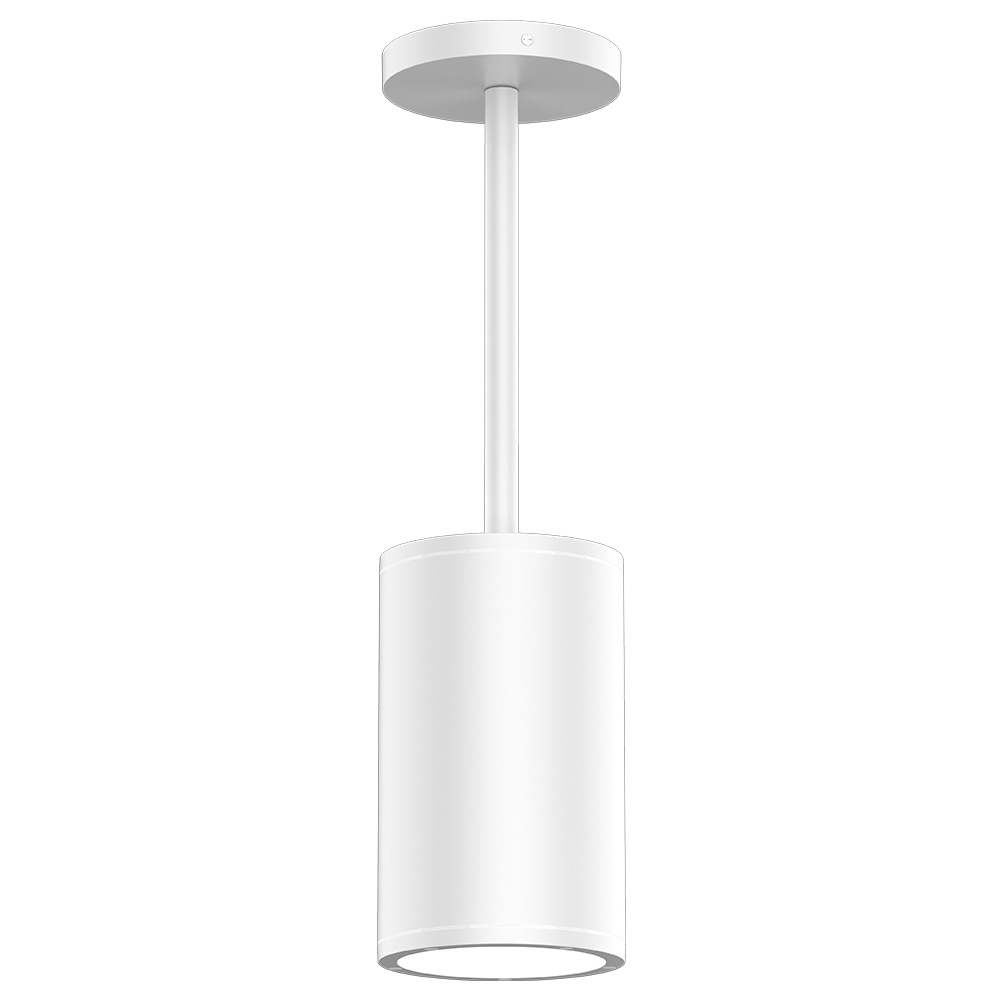

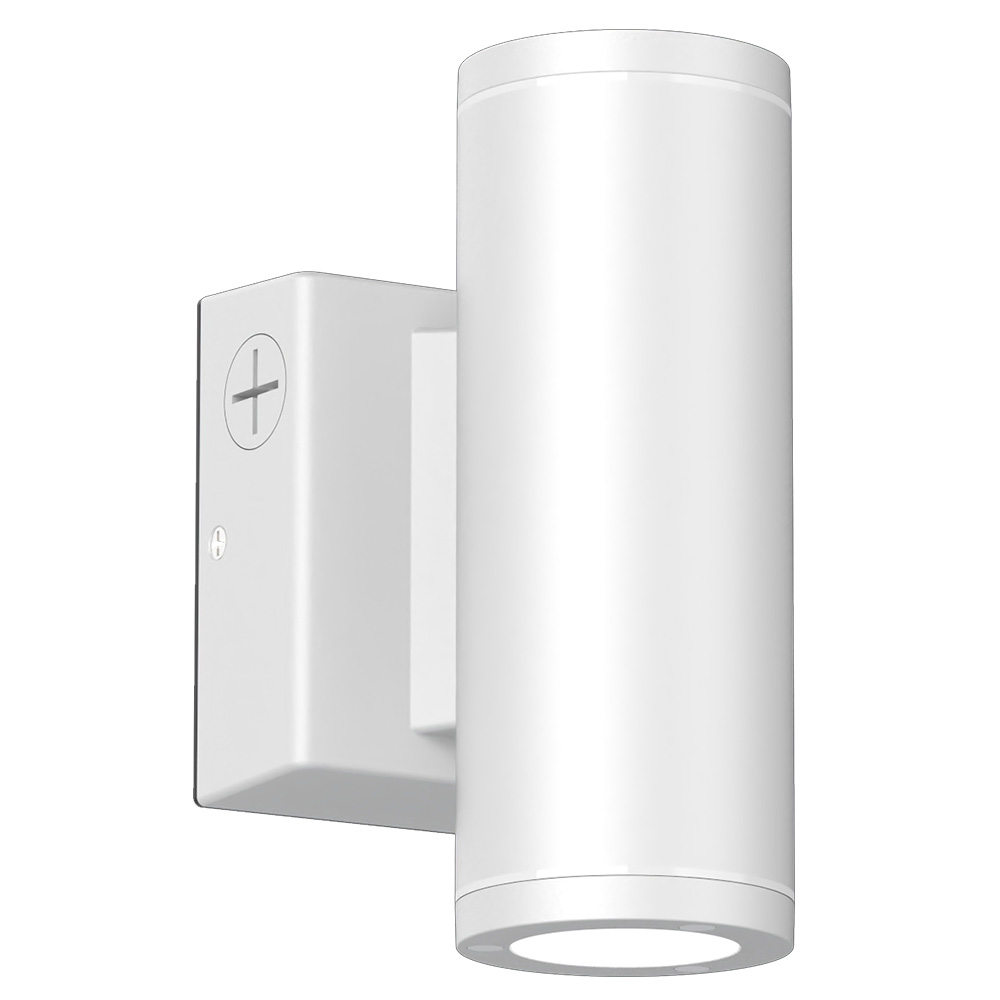

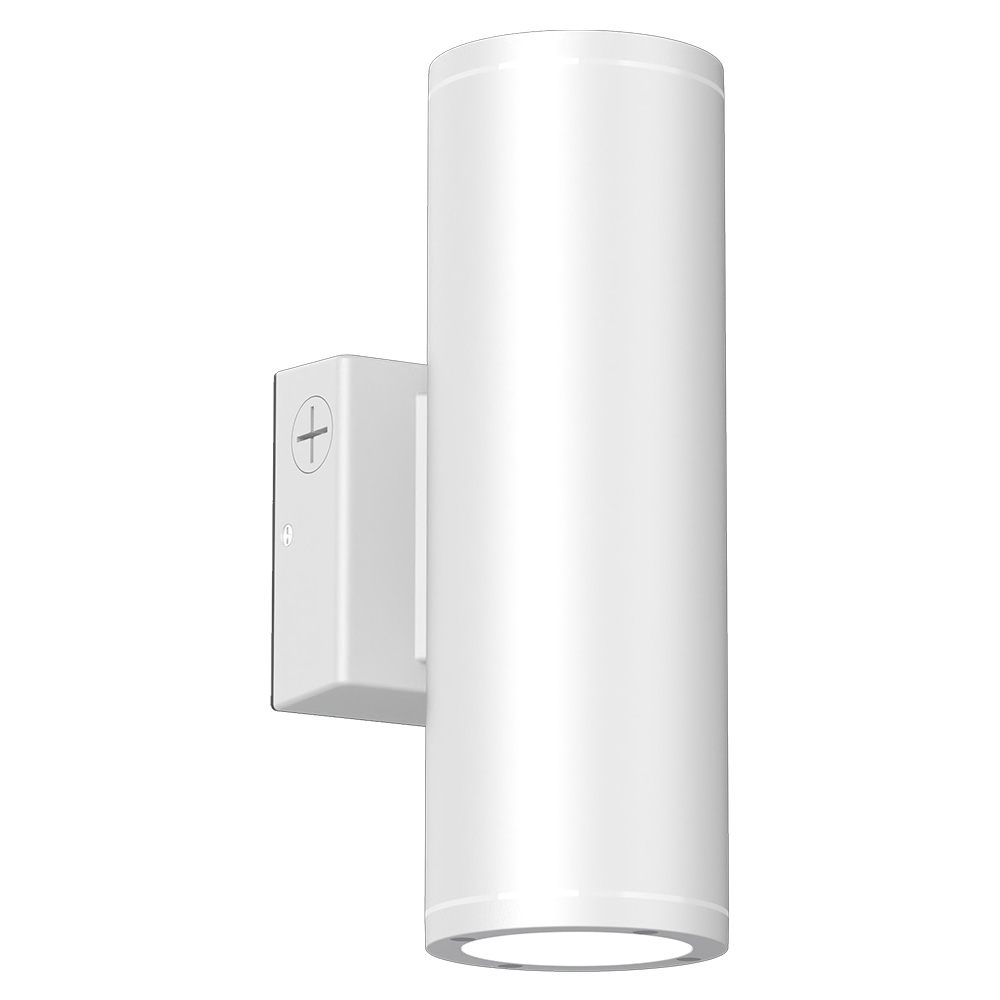

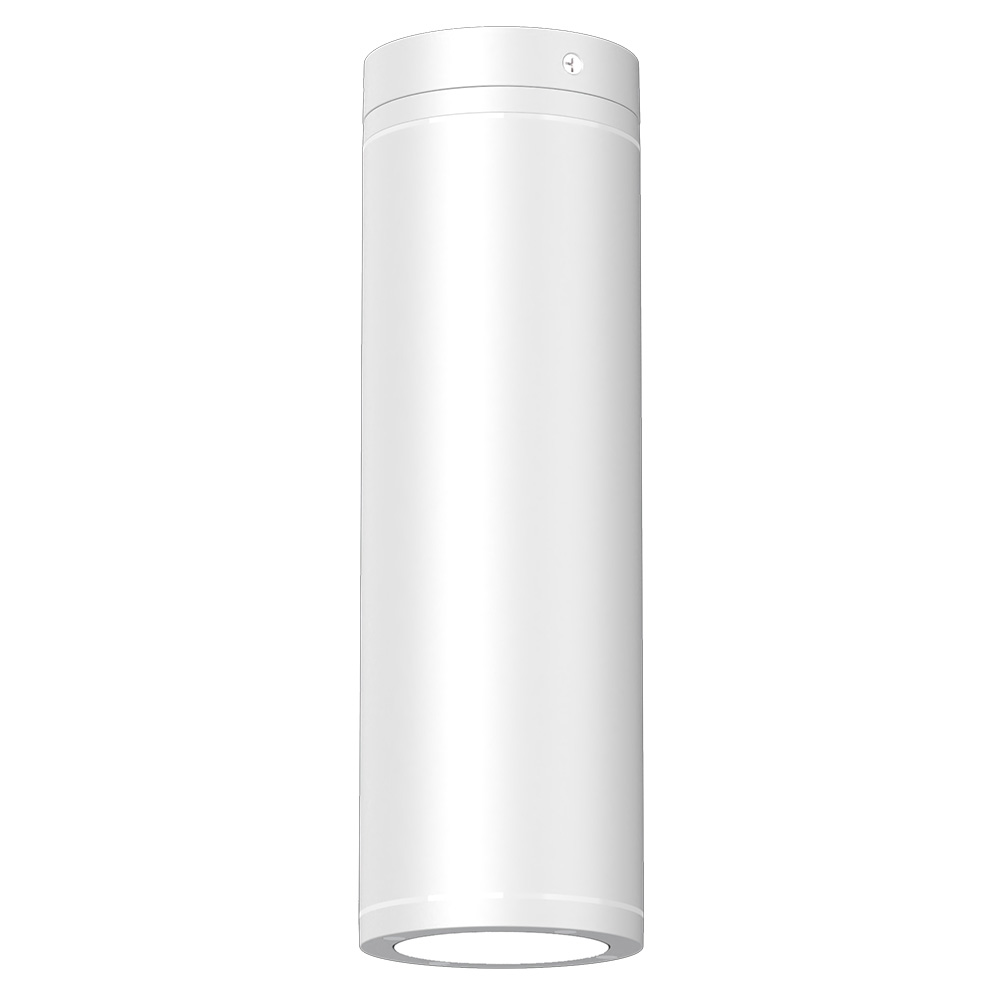

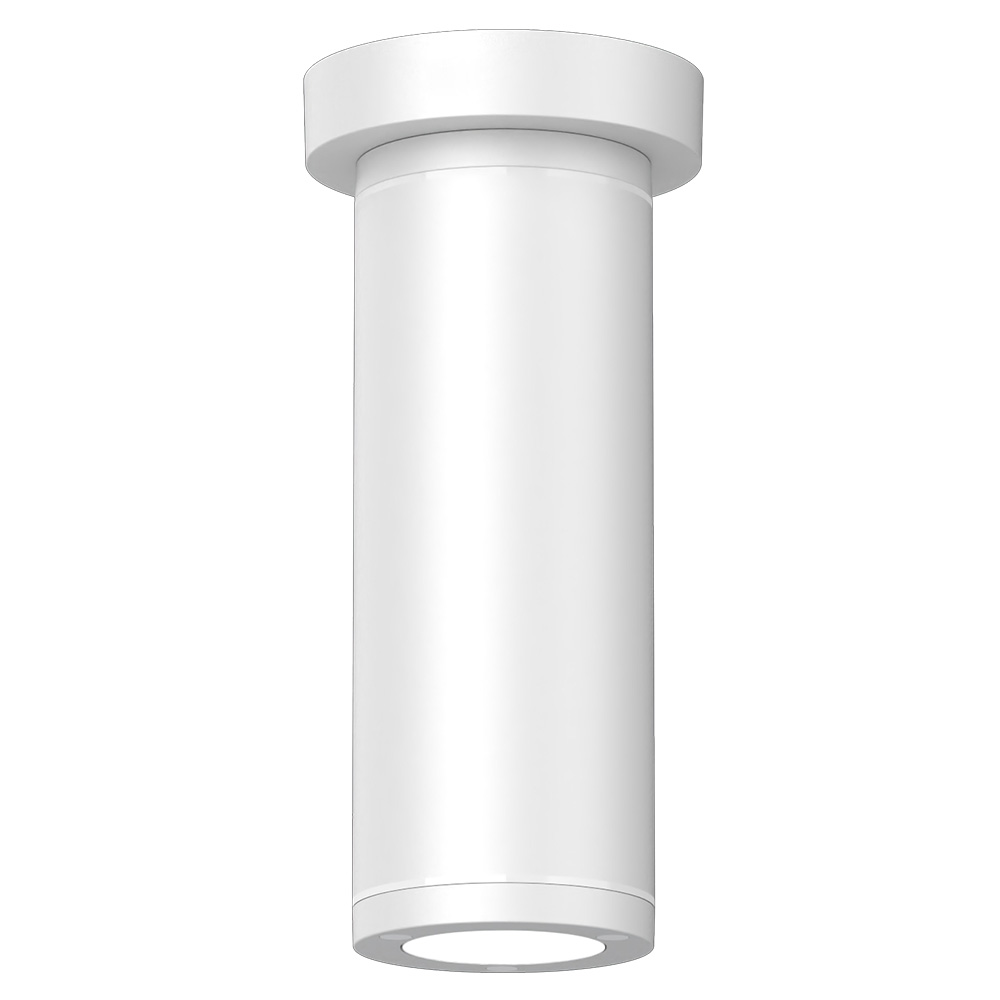

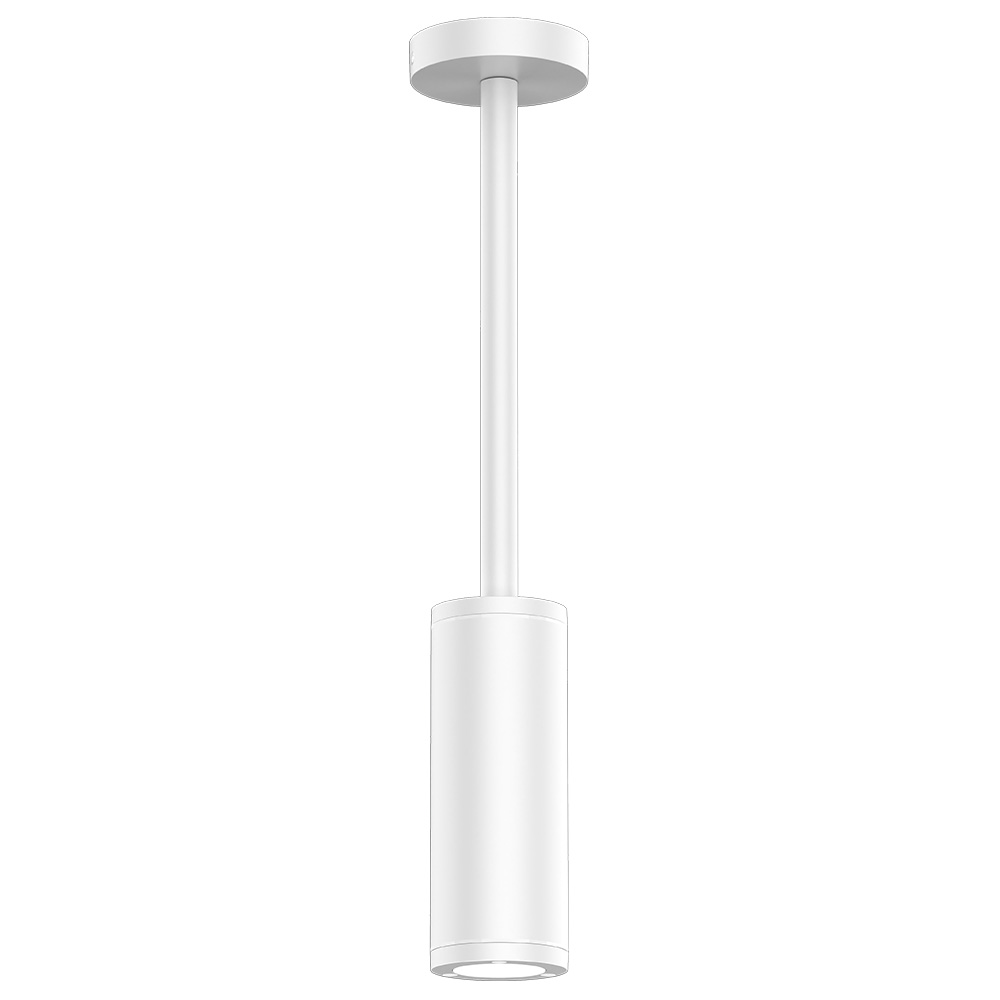

- Wall mount, ceiling mount, pendant mount.
- Multiple Finishes:

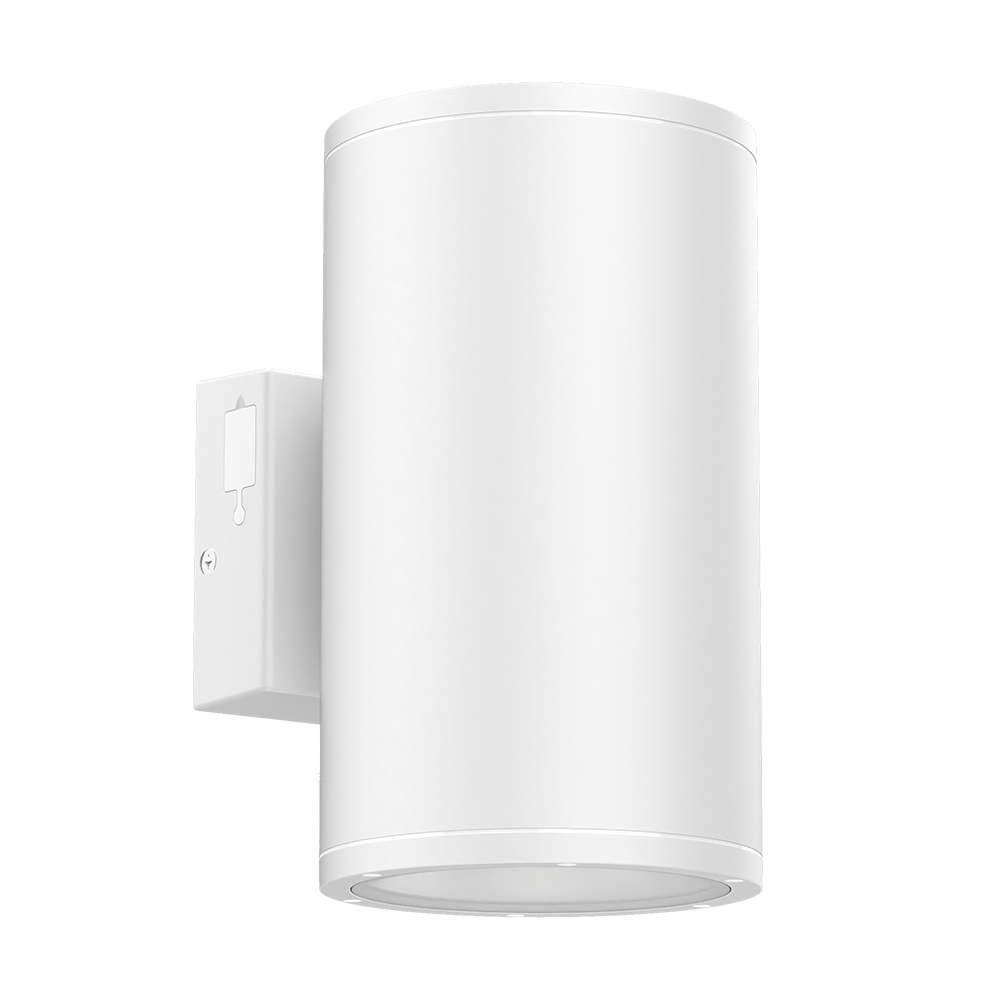

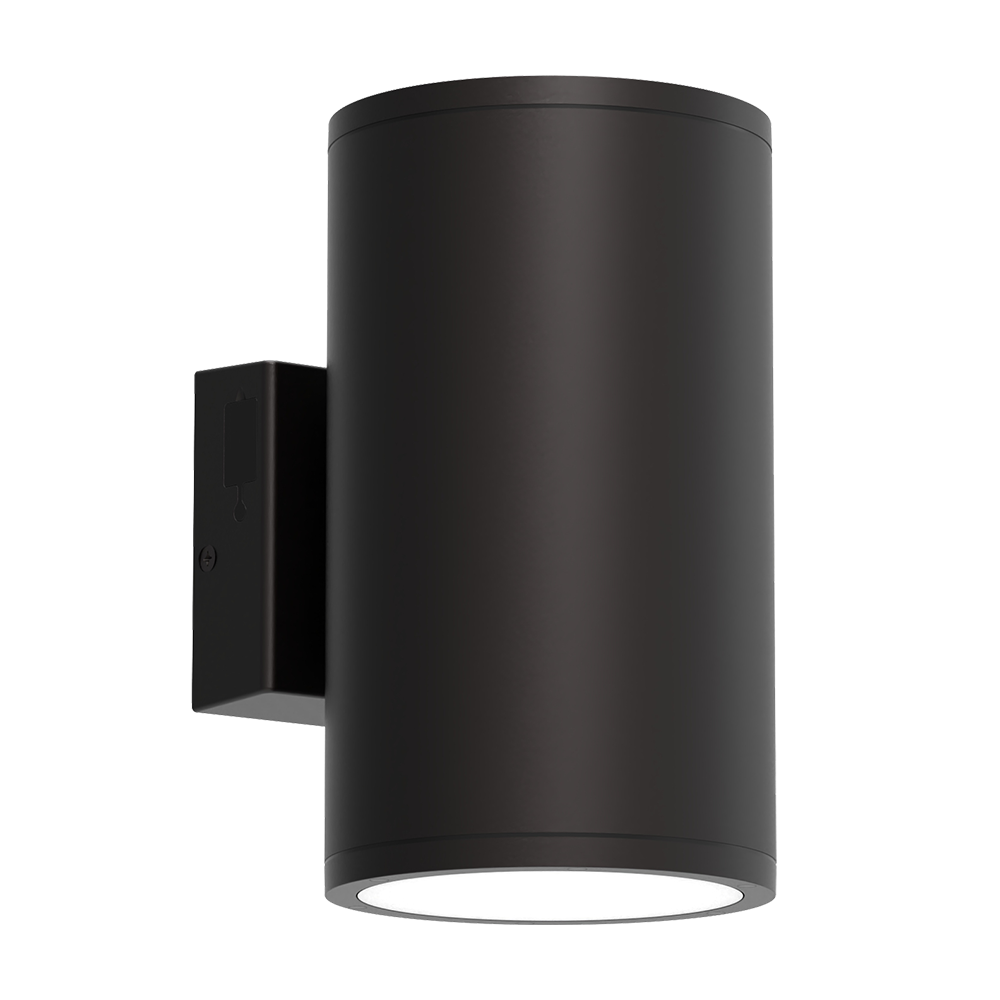

- Black, white, or custom finishes.
Specifications
| Diameter | 3" |
| Light Output | 1070 lm |
| Efficacy | 90 lm/W |
| CCT | CCT Selectable - 3000K/4000K/5000K |
| Beam Angle | 30°, 45°, 75° |
| CRI | >80 |
| Wattage | 13W |
| Voltage | 120V - 347V |
| Surge Protection (as per IEC/EN61000-4-5 ) | 4kV |
| THD | 10% |
| Power Factor | 0.9 |
| Dimming | 0-10V (10-100% Dimming, Dim to Off) |
| LED Life (L80) | >60,000 hrs |
| Housing | Extruded Aluminum |
| Lens | Frosted Glass |
| Housing Finish | Matte Black, White, Custom Finish |
| Weight | 3.5 lb (1.5kg) |
| Cable Length | 4 ft - STW 600V (Ceiling/Pendant Mount) |
| Ambient Operating Temperature | -40°C to 40°C (-40°F to + 104°F) |
| Mounting | Wall mount, Ceiling Mount, Pendant Mount |
| Certifications | cULus Certified as per UL1598 & CSA C22.2 NO.250.0:21., Wet Location (Wall mount only) |
| Controls | Photocell (Wall mount only) |
