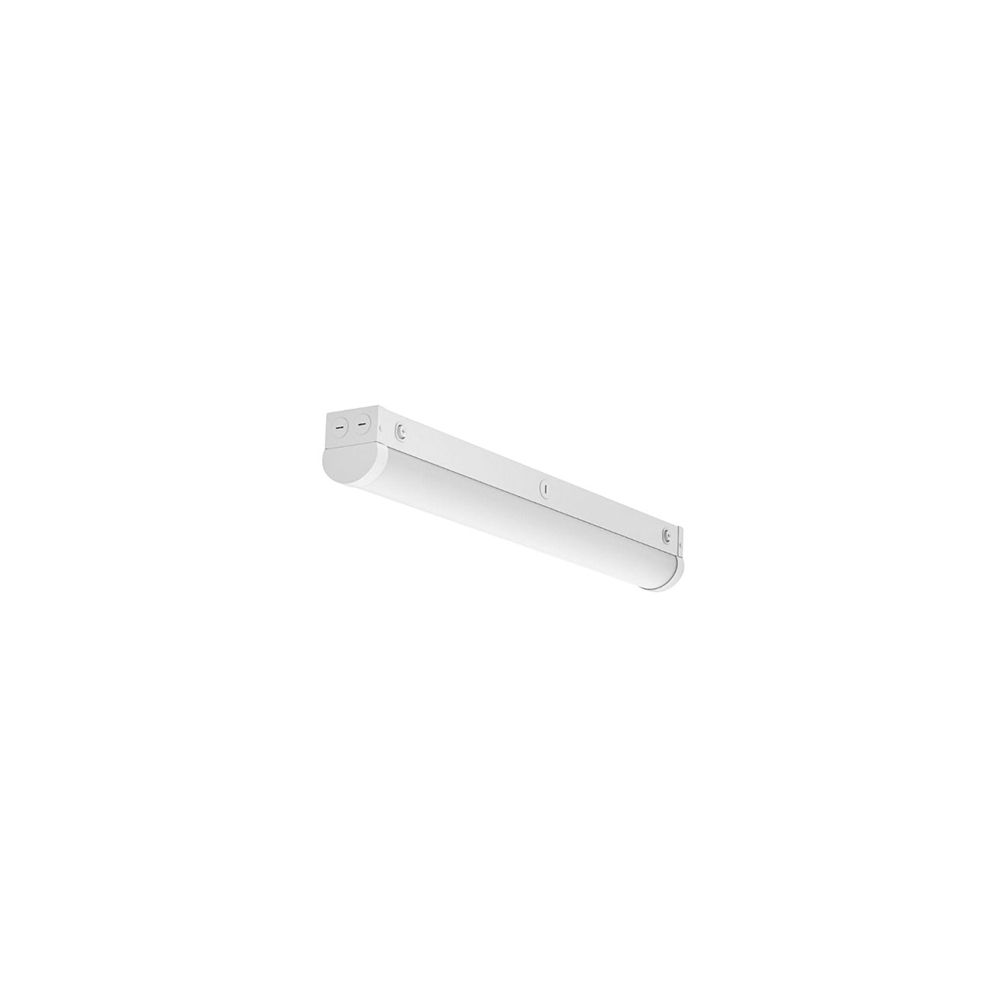

SLE-LED
Experience ultimate convenience and performance with RAB DESIGN’s re-imagined SLE Strip Light. Featuring an elegant, toolless opening, universal adjustable settings, and high lumen output, this fixture is engineered to give contractors the best installation experience. Available in three lengths, with and without sensor, and optional Bluetooth controls.
Now with:
Harnessing the power of Bluetooth Mesh technology, ControlLED by RAB DESIGN enables the seamless control of lighting fixtures connected through group synchronization; meeting your lighting needs how you want them, when you need them.
Download the app here:
Features
- Sleek toolless opening design.
- High lumen version (4ft: 7,000 LMs, 8ft: 12,400 LMs).
- Externally adjustable CCT and wattage switches.

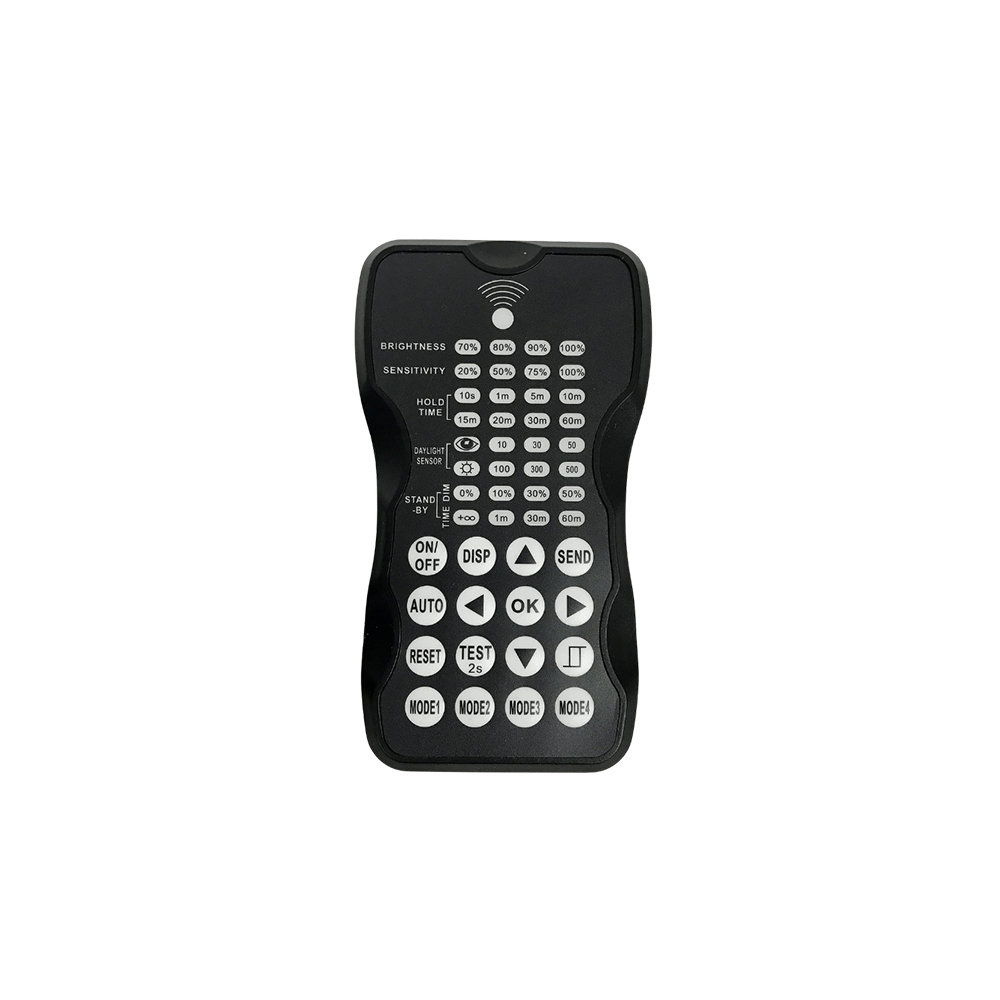

- Remote control DHFS offering.

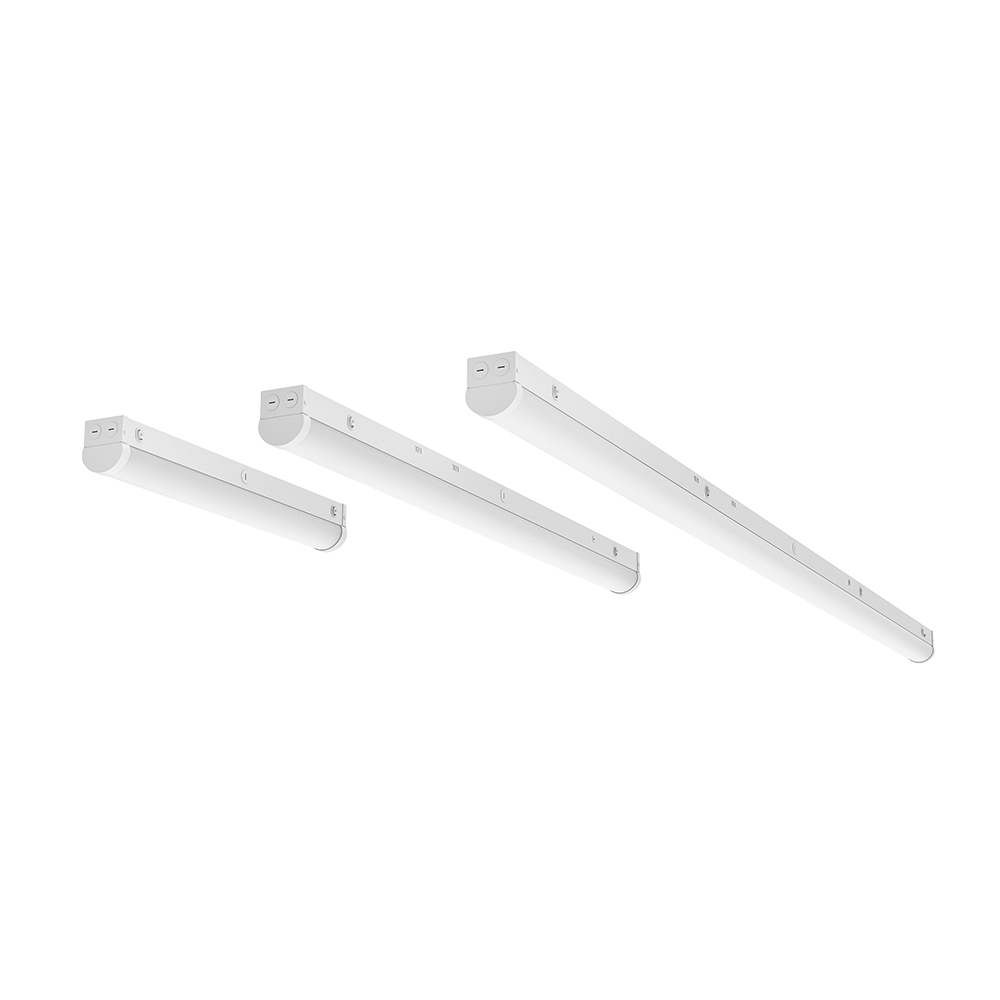

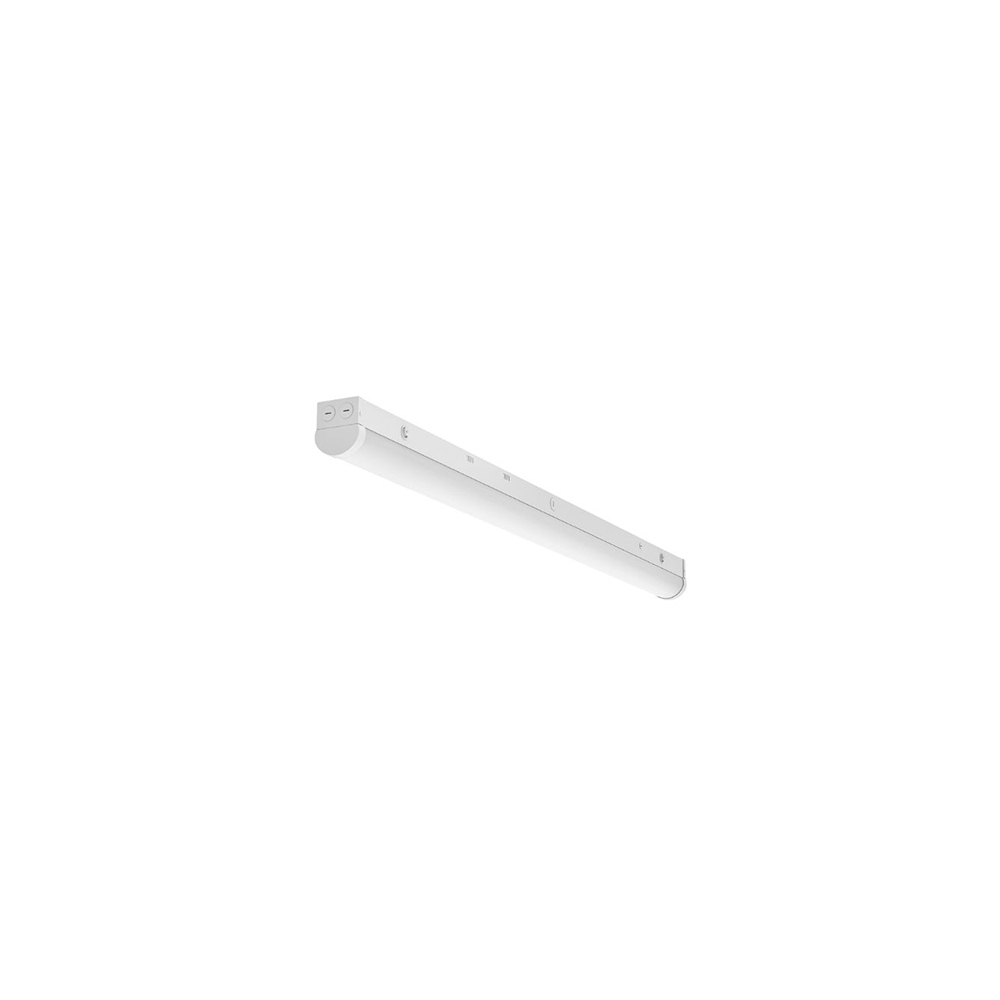

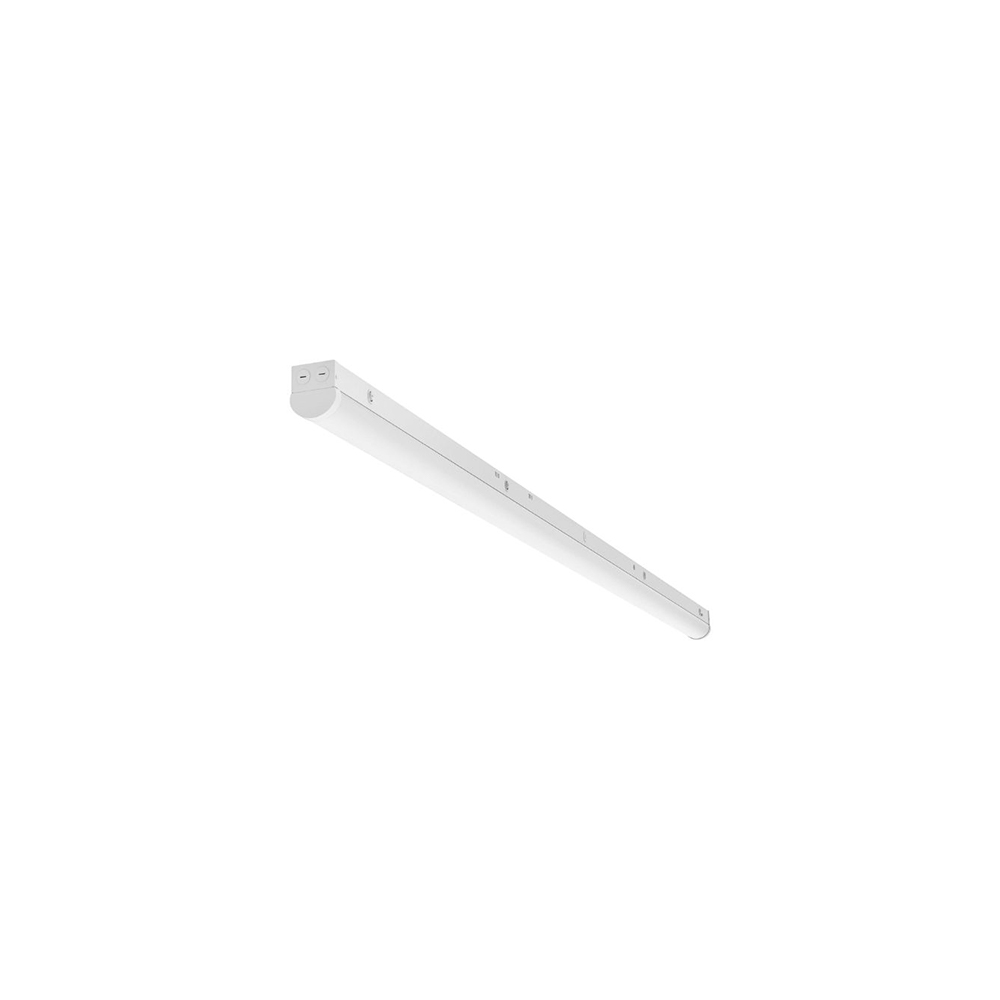

- Available in 3 different lengths 2ft, 4ft, and 8ft; with and without motion sensor.

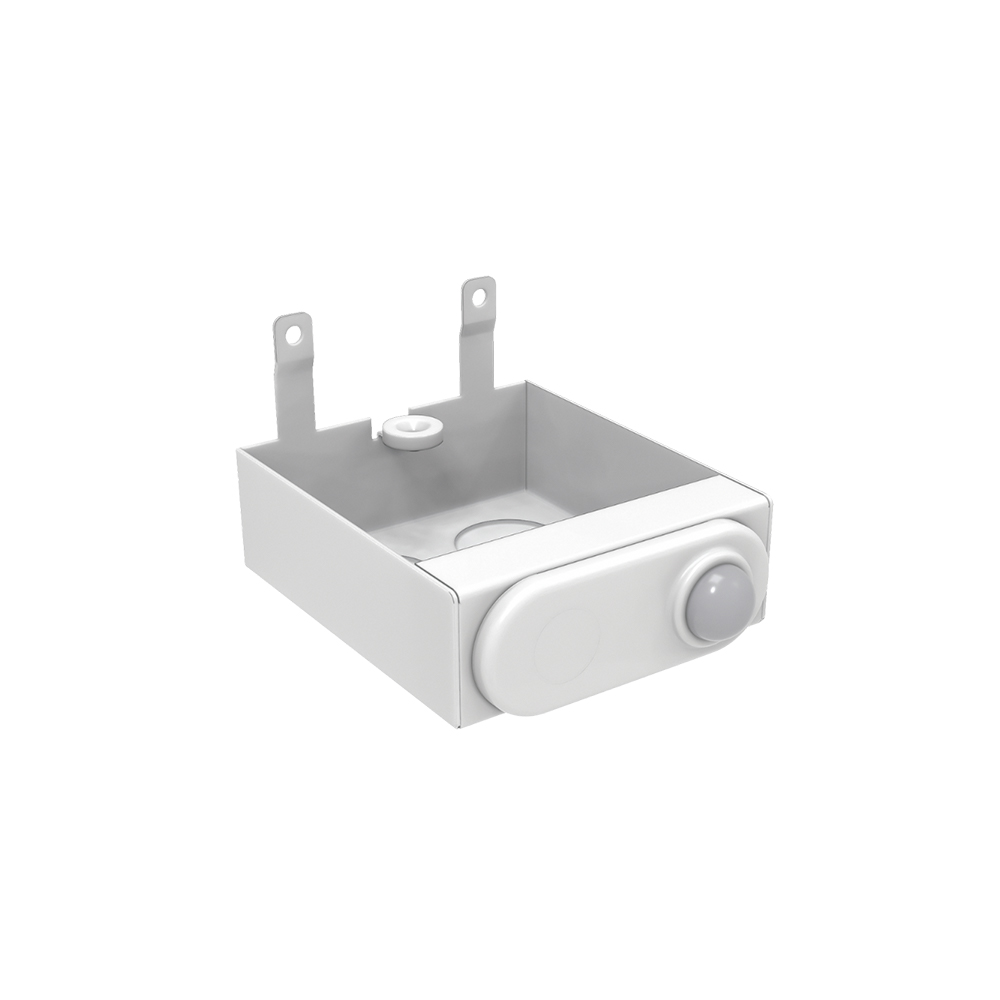

- All sizes available with optional field-installed Bluetooth PIR sensor; compatible with ControlLED.
Specifications
| Light Output | Lumen Selectable - 3500/2800/2100 lm |
| Efficacy | 138 lm/W |
| CCT | 3000/3500/4000/5000K (CCT Selectable) |
| Beam Angle | 130° |
| Replaces up to | 2 LAMP F21T5 |
| LED Lifetime (L80) | >100,000 Hours |
| CRI | 84 |
| Wattage | 25/20/15W |
| Voltage | 120-347 V |
| Surge Protection | 2.5kV (Built-in Driver) as per IEC/EN61000-4-5 |
| Power Factor | >0.99 |
| THD | 7% |
| Daisy Chain | 6A Max (Max 22 fixtures at 120V and 62 fixtures at 347V) |
| Housing | Steel Sheet Metal |
| Paint | White Powder Coat Finish |
| Lens | Frosted Polycarbonate |
| Weight | 2.21 lbs |
| Ambient Operating Temperature | -35°C to 45°C (-31°F to 113°F) |

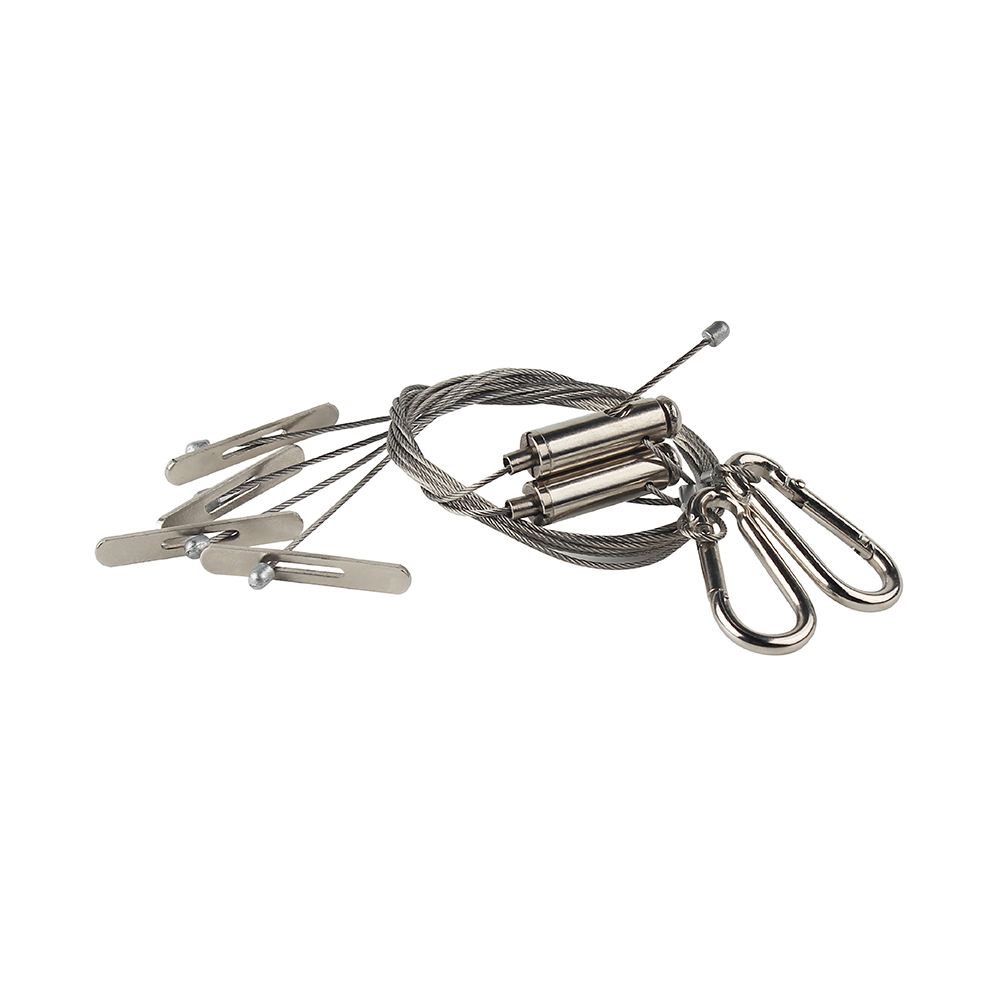

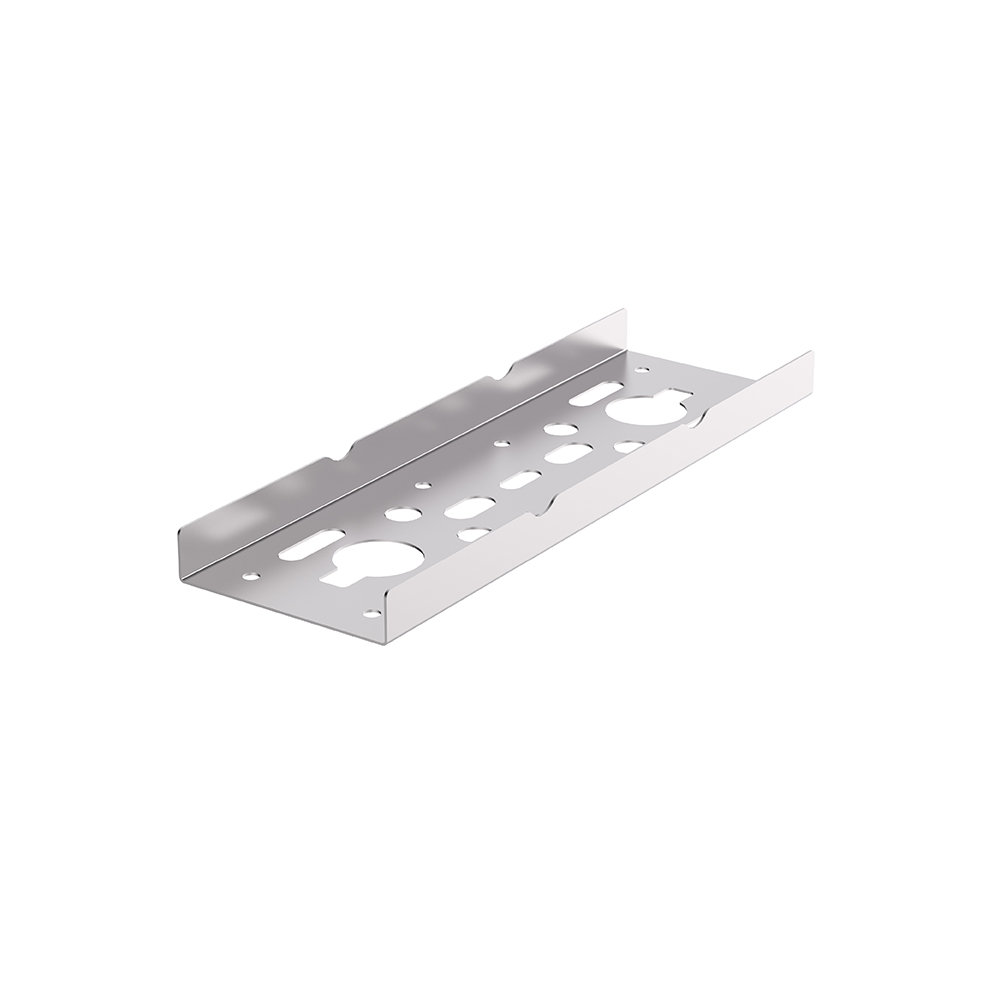

| Mounting | Surface Mount, Suspension Mount |
| Certifications | cULus Listed for Canada and USA, per UL 1598, CSA C22.2 No. 250.0 DLC Premium |
| Dimming | 0-10V (5-100% Dimming, Dim to Off) |
| Sensor | Dimming High Frequency Microwave Motion Sensor with Remote Control Bluetooth PIR Motion & Daylight Harvest Sensor |
