/ Fixtures / Outdoor Lighting / Landscape Lighting / RAY-LED (2021)

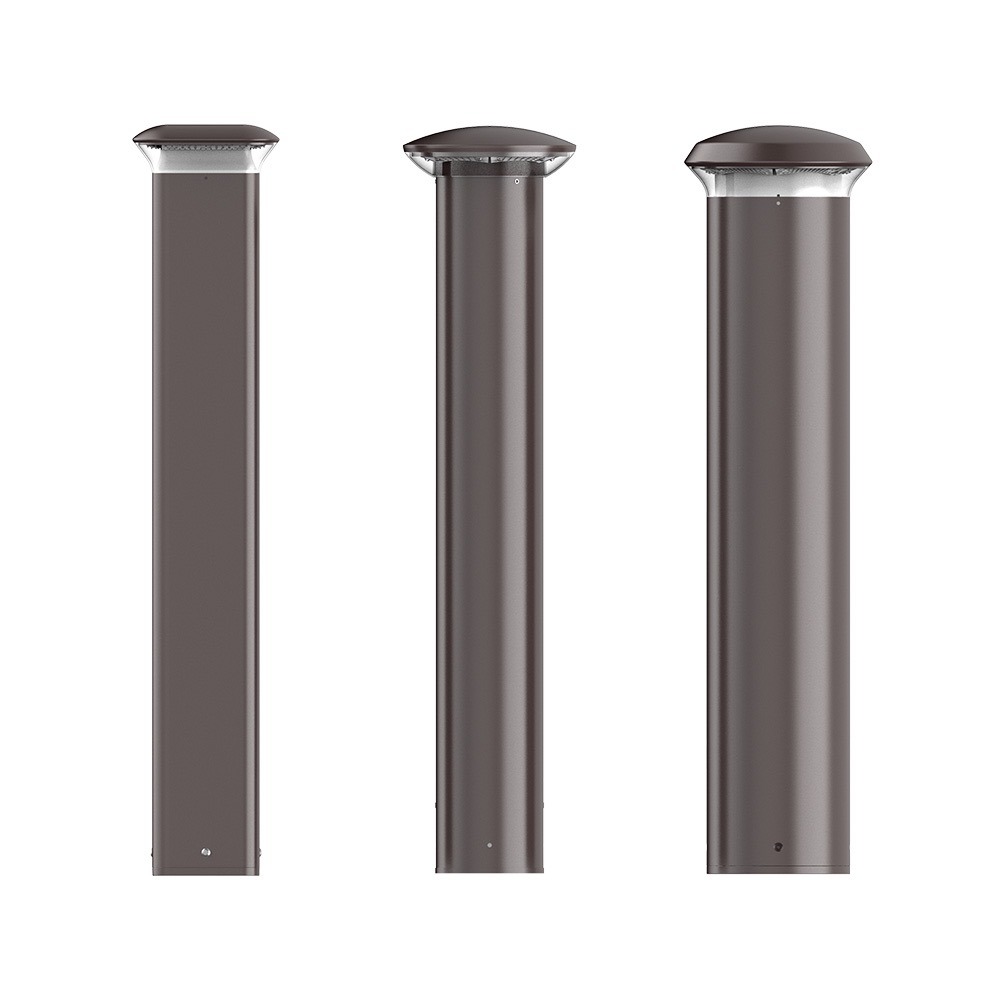

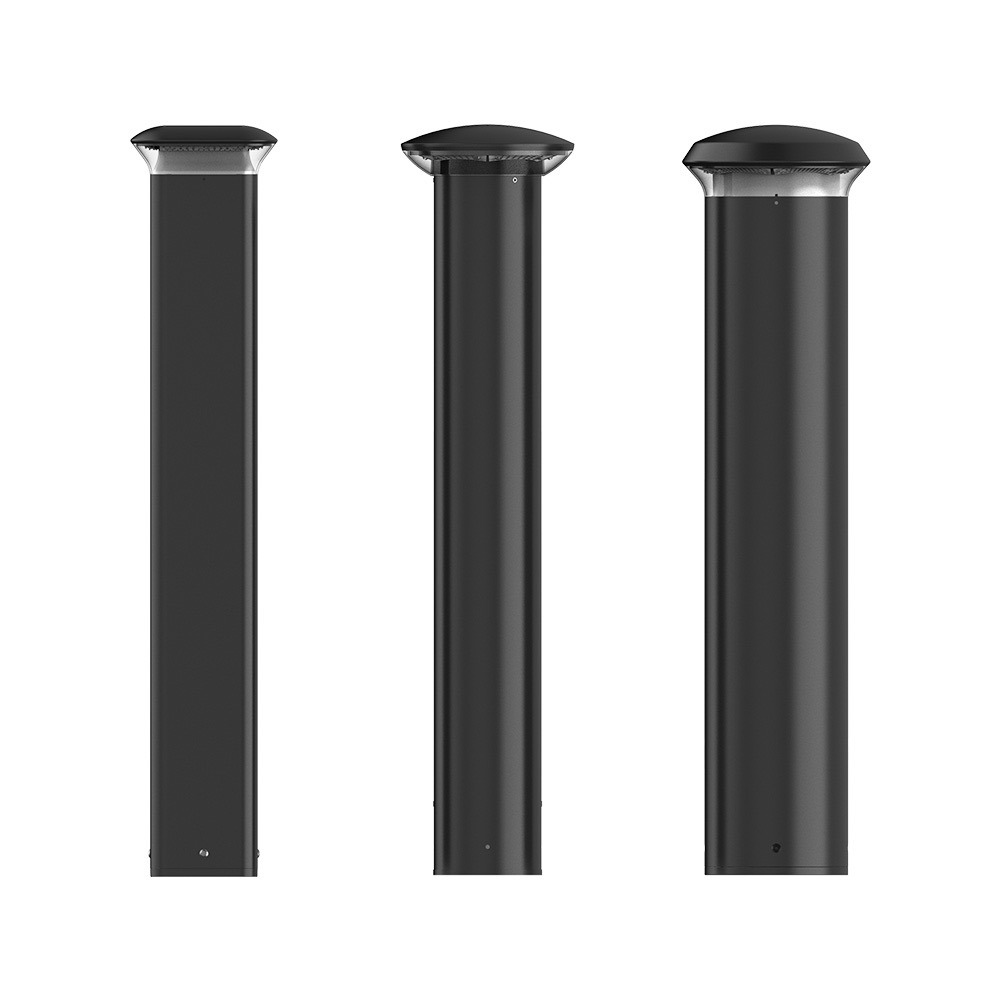

The RAY-LED bollard series features a sleek, architectural design that provides uniform, glare-free illumination. Available in 5 wattages, square and round shapes, different cut-off beam configurations, and multiple custom paint finishes.
Body is made from extruded aluminum. The cast aluminum base is secured with stainless steel set screws.
RAY6 has two light distributions available; Type V (3600) is standard & Type III (1800) is an option
RAY8 has two light distributions available:
Type V / 360° (RAY8-LED35) Type III / 180° (RAY8-LED20)
Type V / 360° (RAY8SLED35) Type III / 270° (RAY8S-LED25) is an option
RAY6: Unit consists of 6 LED modules which can be removed to direct the light in desired direction.
RAY8 LED20/LED35: Unit consists of 6 LED modules which can be removed to direct the light in desired direction.
RAY8 LED25/LED35: Unit consists of 4 LED modules which can be removed to direct the light in desired direction.
Select a model
RAY6-LED25A8 RAY8-LED20 RAY8-LED35 RAY8S-LED25 RAY8S-LED35
3000K, 4000K*, 5000K
LED Life @ 100,000 Hours
Type III (180°), Type V (360°)*
Bronze*, Custom Colour
Clear PC Lens
-30°C to 40°C
UL, Wet Location, IP65
